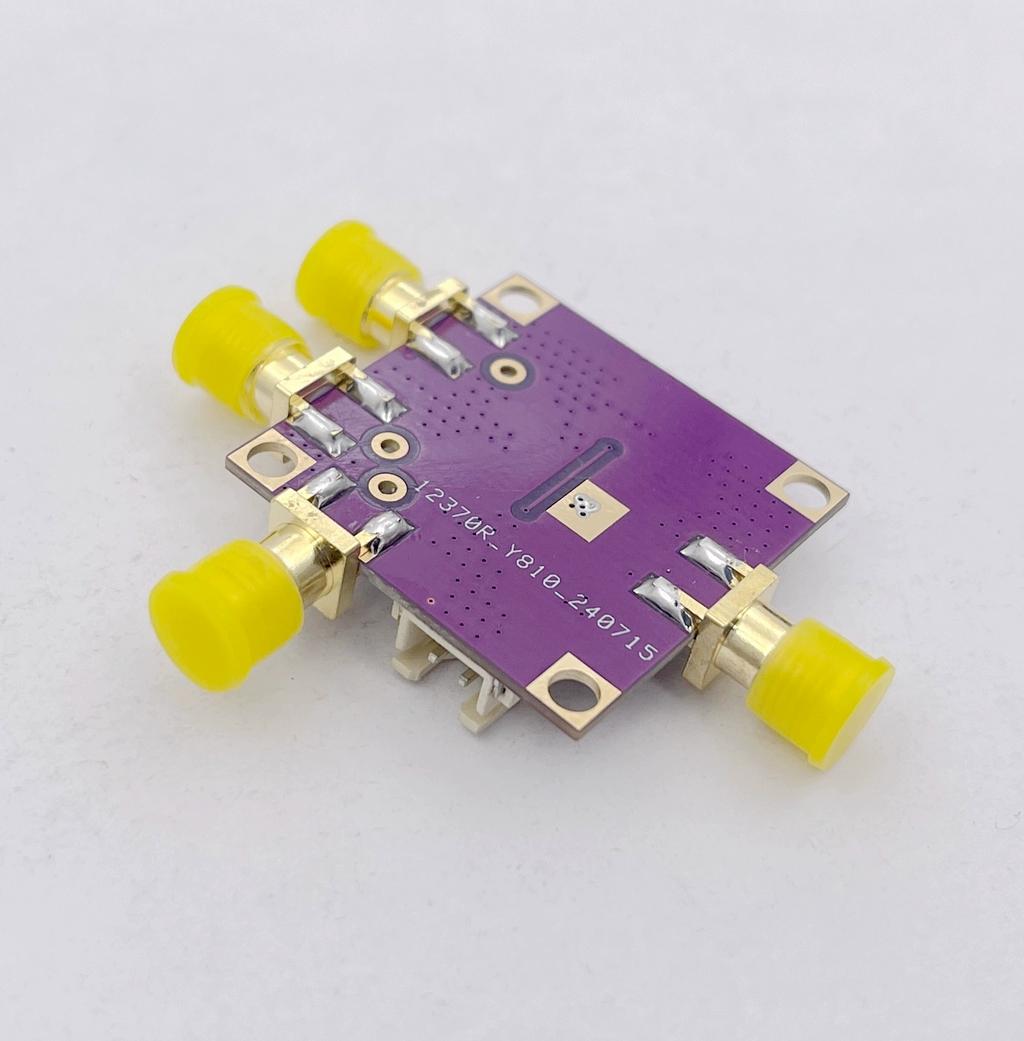

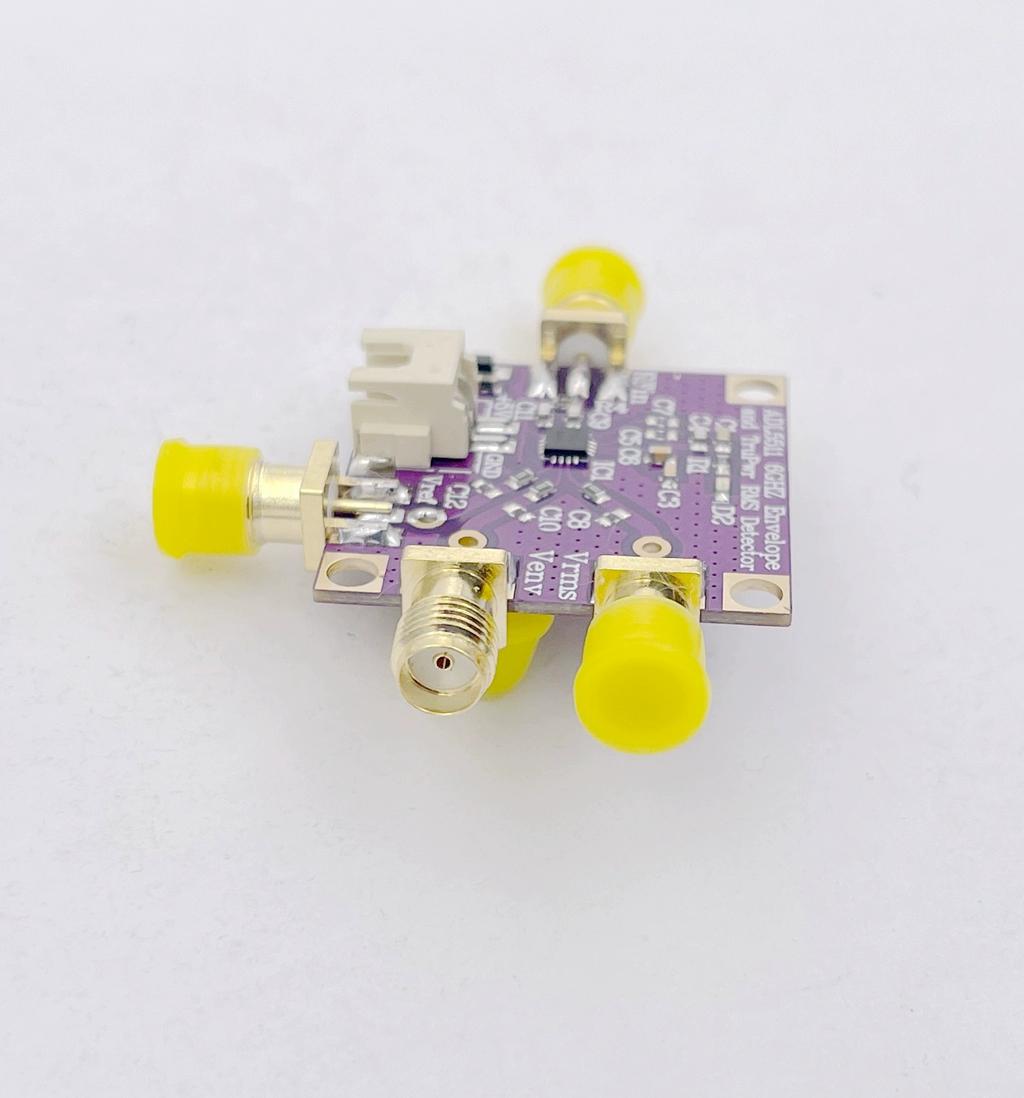

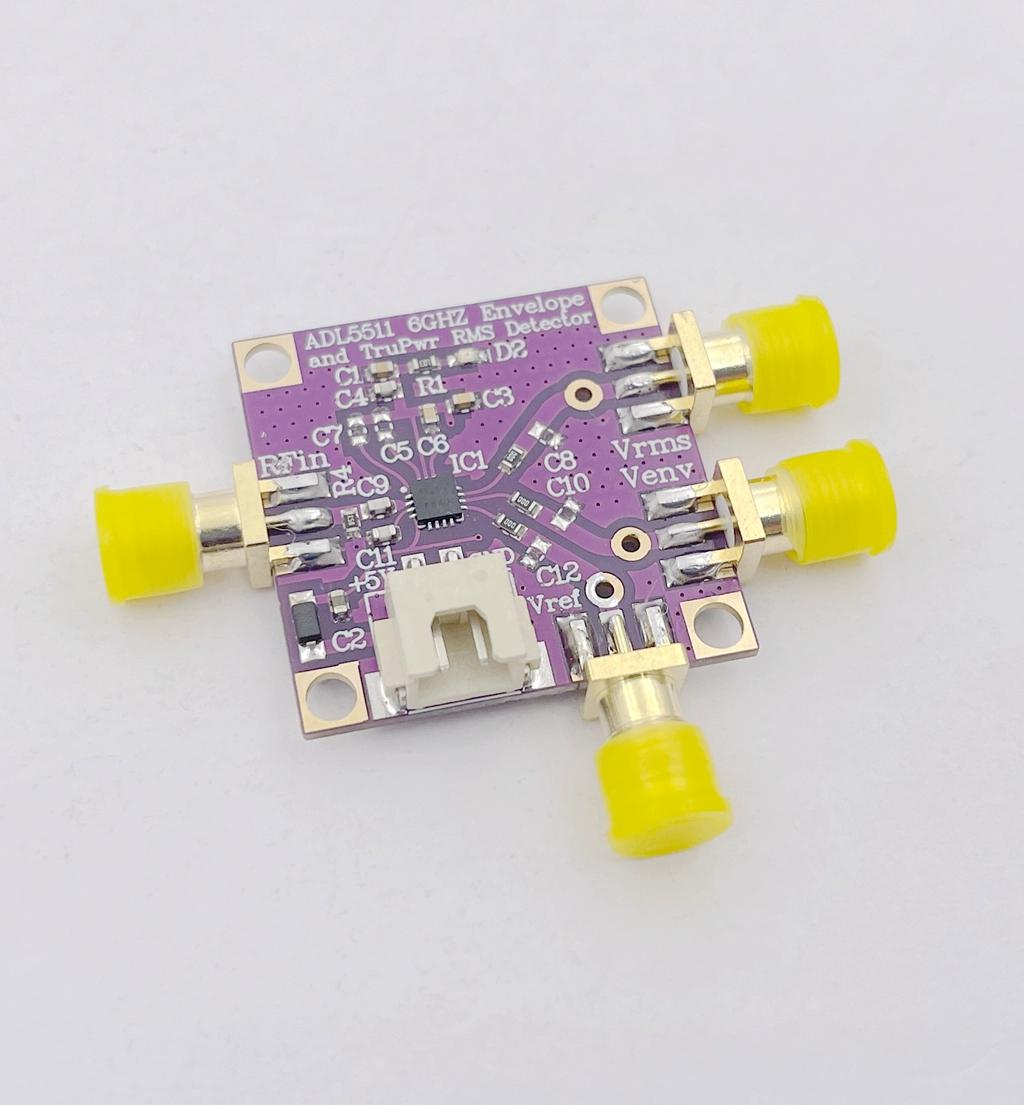

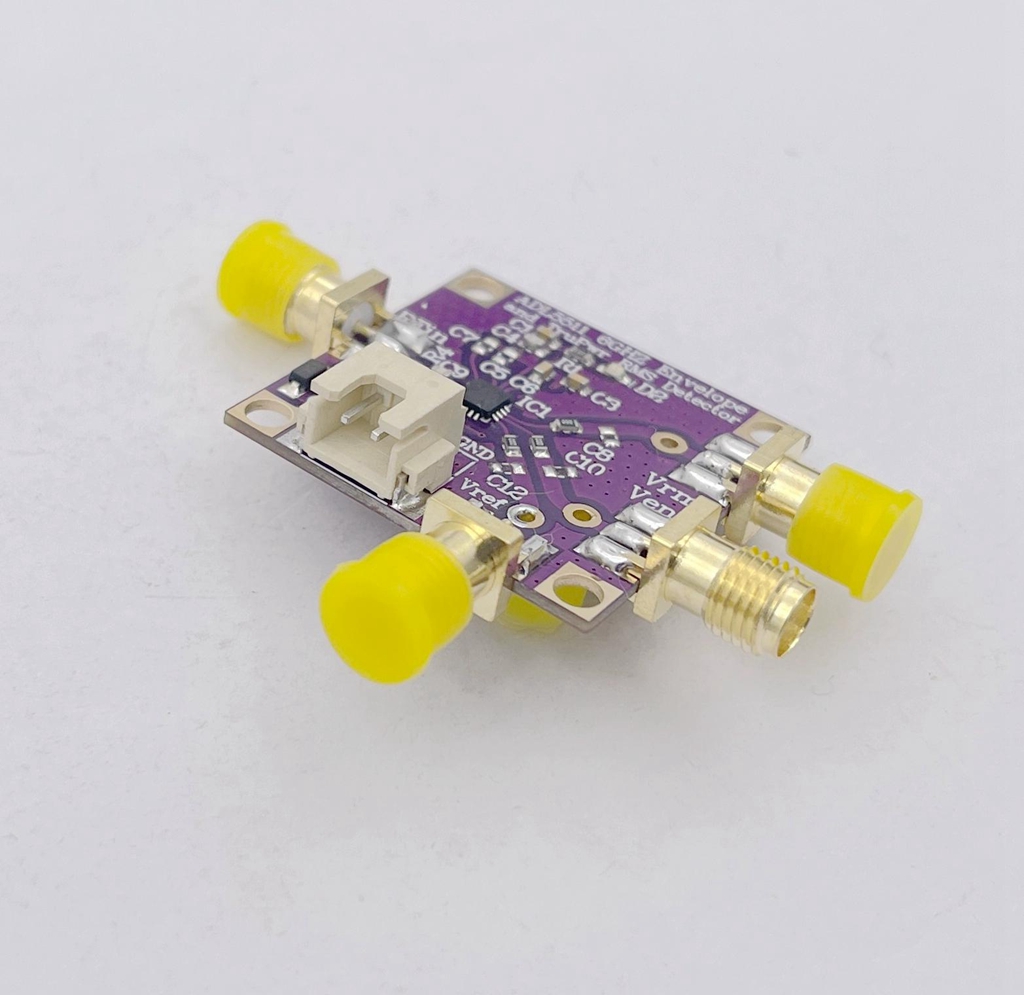

ADL5511 6GHz Envelope and TruPwr RMS Detector AM Demodulator 50ohms RF Accessory with SMA Female Connector
Features:

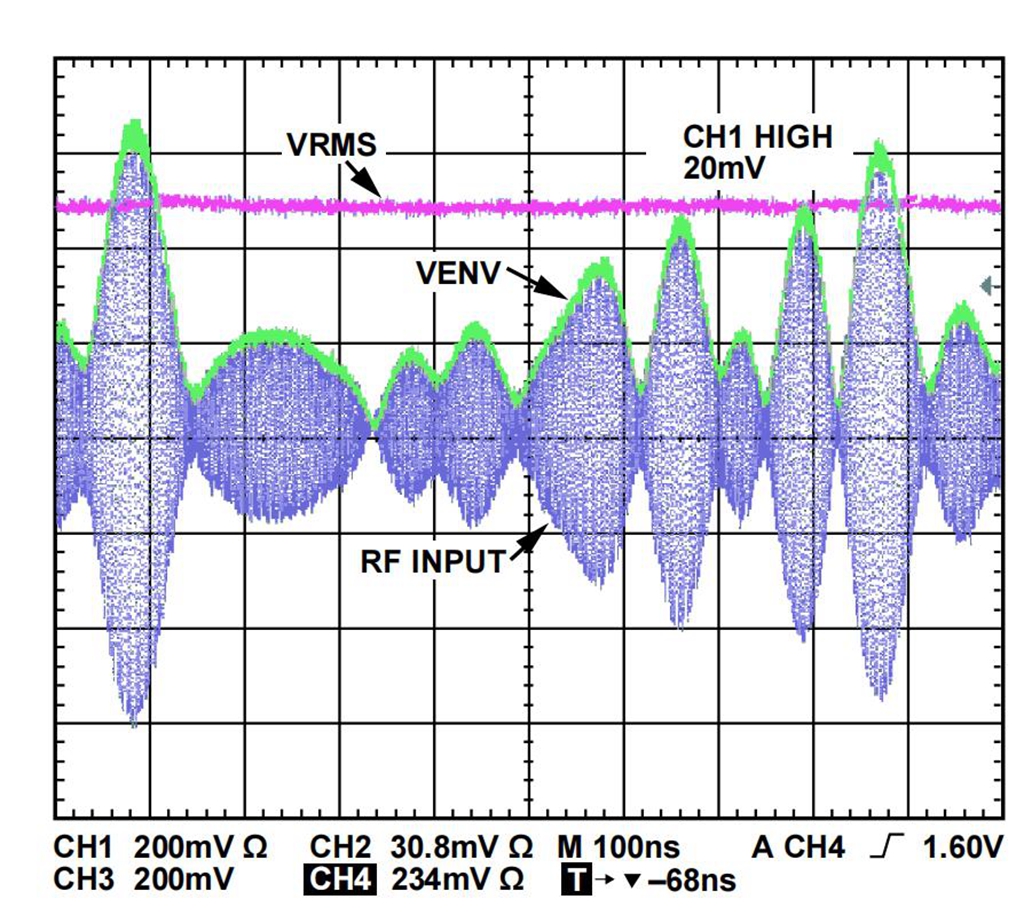

- Envelope tracking RF detector, output voltage proportional to input voltage
- Independent TruPwr root mean square output
- No need for balun or external tuning
- Excellent temperature stability
- Dynamic range of input power: 47dB
- Input frequency range: DC - 6GHz
- Envelope bandwidth: 130 MHz
- Envelope delay: 2ns
- Single power supply: 4.75V to 5.25V
- Power supply current: 21.5mA
- Off mode: 130μW
Application:
- Root mean square power measurement for W-CDMA, CDMA2000, LTE, and other complex waveforms
- Quantity and envelope detection
- Linearization of power amplifier based on drain modulation
- Linearization of power amplifier using envelope tracking method

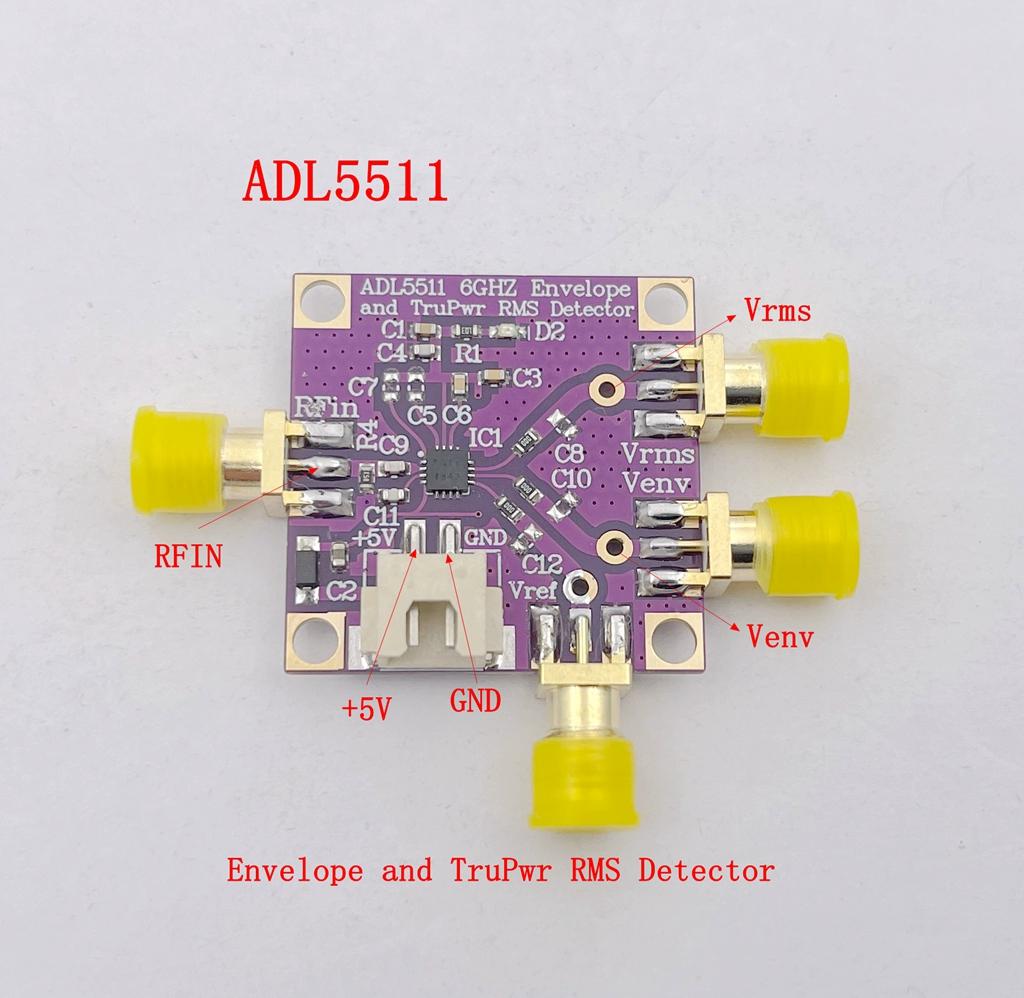

Specification:
- Input impedance: 50ohms
- Input interface: SMA female connector
- Power supply voltage: +5V/XH2.54 interface
- Current: 30mA
- Product size: 3 x 3cm (excluding the SMA connector length)
Package Included:
- 1 x Envelope and TruPwr RMS Detector
