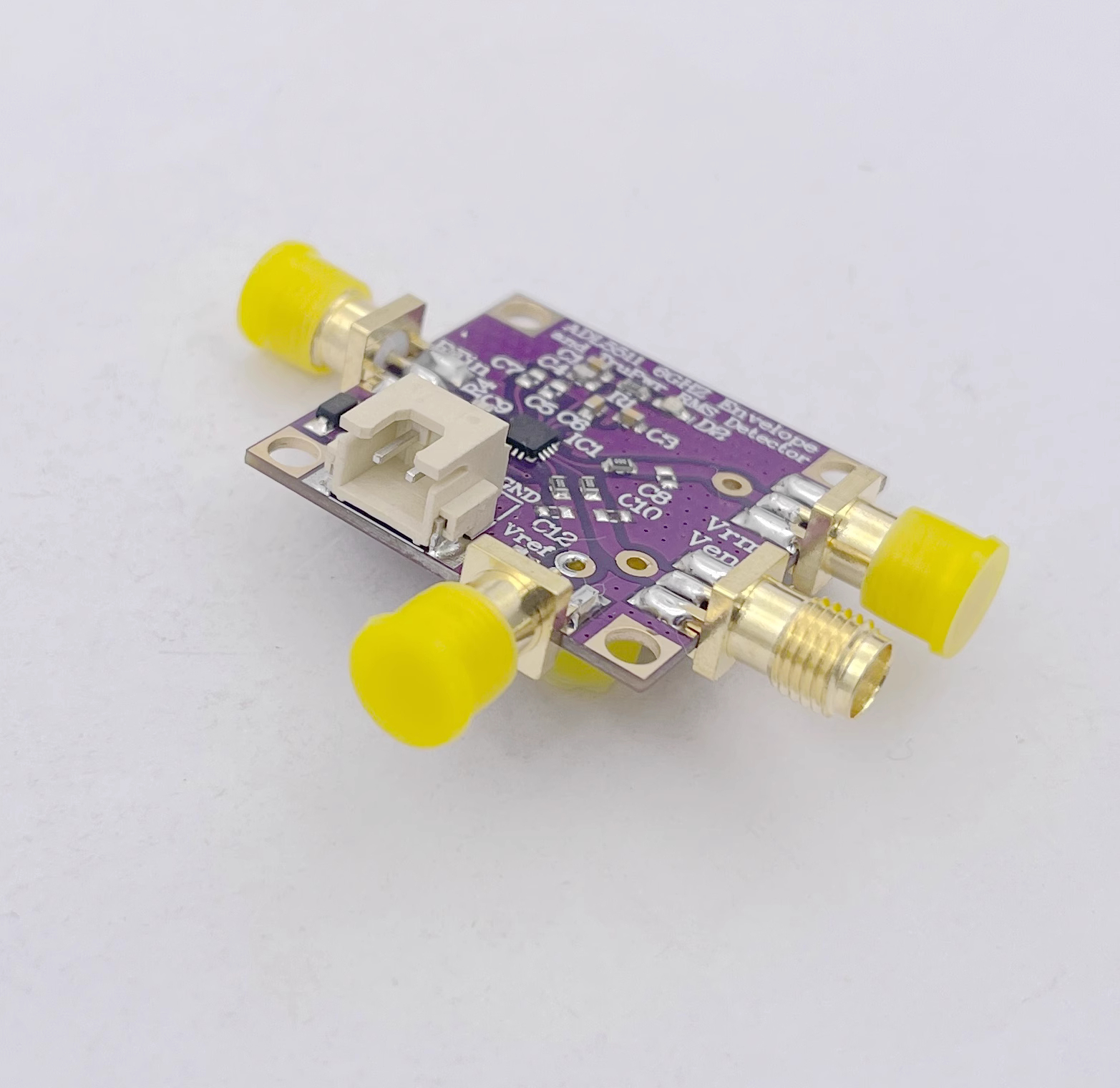

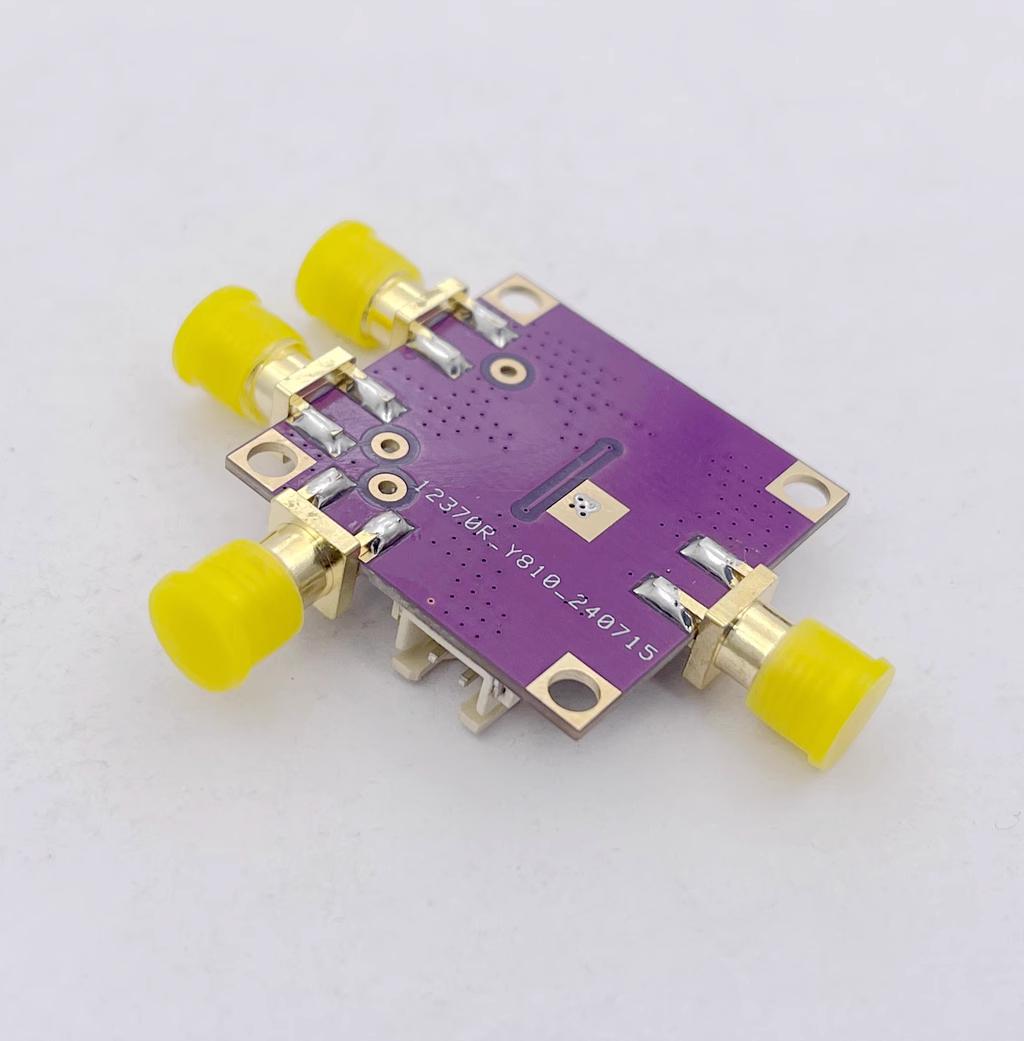

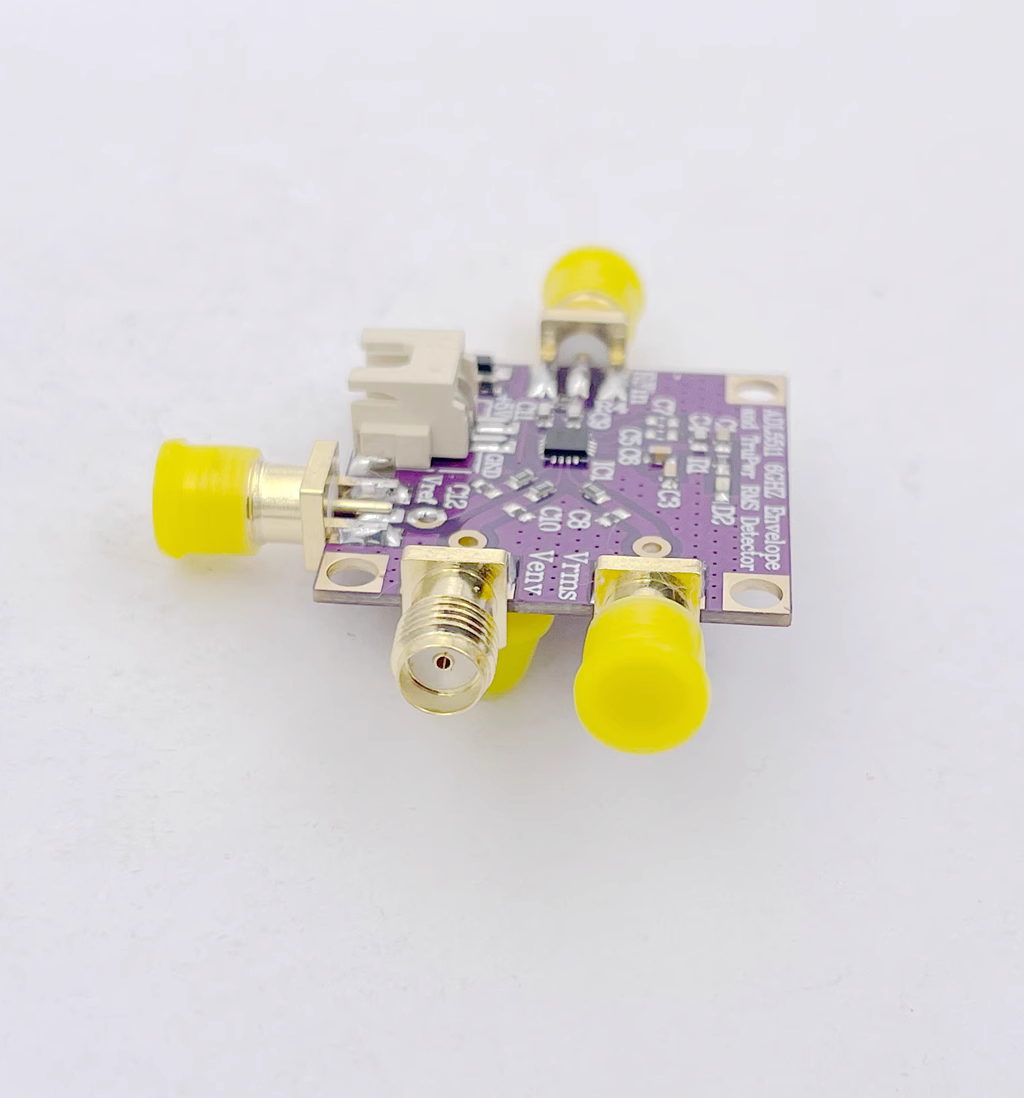

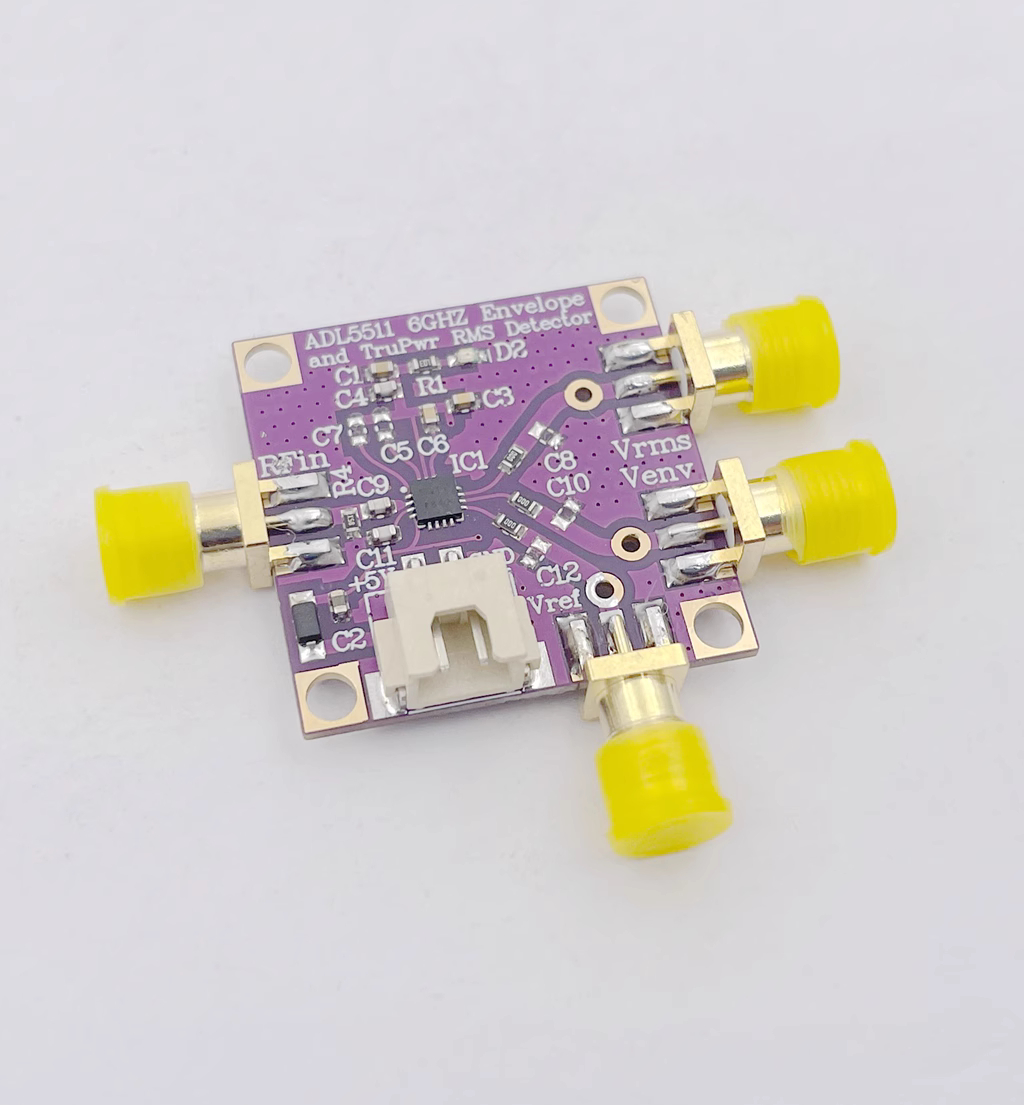

ADL5511 6GHZ Envelope Detector AM Demodulator Detector TruPwr RMS Detector w/ SMA Female Connector
Features:
- Envelope tracking RF detector: The output voltage is proportional to the input voltage
- Separate TruPwr RMS output
- No balun or external tuning required
- Excellent temperature stability
- Input power dynamic range of 47 dB
- Input frequency range from DC to 6 GHz
- Envelope bandwidth: 130 MHz
- Envelope delay: 2 ns
- Single-supply operation: 4.75 V to 5.25 V
- Supply current: 21.5 mA
- Power-down mode: 130 μW
Applications:
- RMS power and envelope detection of W-CDMA, CDMA2000, LTE, and other complex waveforms
- Drain modulation based power amplifier linearization
- Power amplifier linearization employing envelope-tracking methods
Other Parameters:
- Input impedance: 50 ohms
- Input interface: SMA female
- Power supply voltage: +5V/XH2.54 interface and 30mA current
- Dimensions: 3cm x 3cm/1.2" x 1.2" (excluding protruding SMA interface)
Package Included:
- 1 x RMS Detector
Packaging Details:
- Weight: 0.15kg

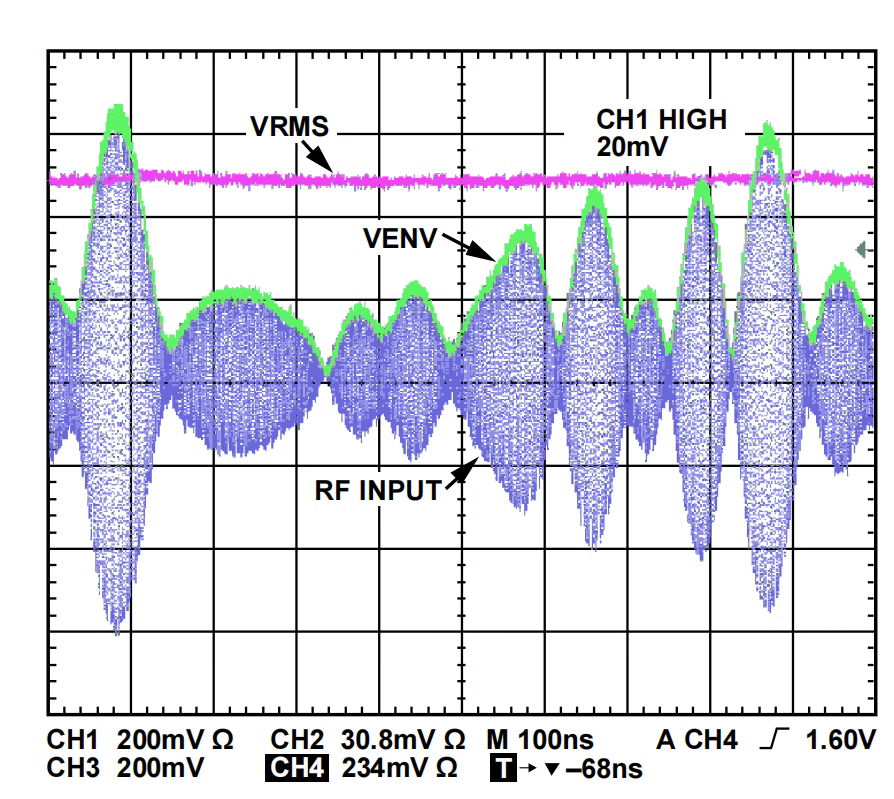

Port Waveform Meaning:
