Description:
The ADL5920 is an ultrawideband, bidirectional detector that simultaneously measures forward and reverse rms power levels in a signal path, along with the return loss.

The forward and reverse power traveling through the integrated bidirectional bridge is measured using two 50 dB linear in dB rms detectors. The detector output voltages, available at the VRMSF and VRMSR pins, are proportional to the forward and reflected power in dBm. A third, differential, output produces a voltage proportional to the return loss (reflection coefficient) in dB, closely related to the voltage standing wave ratio (VSWR). The common-mode level of this output is externally adjustable through the VOCM pin.

The primary transmission line of the bidirectional bridge, from RFIN to RFOUT (or vice versa) is dc-coupled and allows small amounts of dc bias current through the bridge. When dc-coupled to source and load, the positive and negative supply pins of the ADL5920 must be connected to +5 V and −2.5 V, respectively (relative to the dc voltage at RFIN and RFOUT). The internal detector circuitry is also dc-coupled to the directional bridge to support measurements down to 9 kHz.

The maximum input signal on each of the RF ports (RFIN and RFOOUT) is 30 dBm for open and shorted terminations and 33 dBm for a matched termination.

The ADL5920 draws 160 mA from a 5 V supply and has a low power, power-down mode controlled through the PWDN/TADJS pin.

Applications:
- Broadband online power and return loss measurements
- Transmit power control and automatic level control in wireless transmitters, signal generators, network analyzers, and wireless communications testers
- Stateful monitoring of system modules, cables and connectors

Core Chip Features:
- Wideband matched 9 kHz to 7 GHz operation
- Forward and reverse power and return loss measurement
- 49 dB ±1.0 dB input range with −19 dBm minimum input level, ±1.0 dB linear rms (crest factor sensitive) output at 1 GHz
- Insertion Loss: 1.1 dB at 1 GHz and 1.9 dB at 6 GHz
- Input & Output Return Loss & VSWR
  1 GHz: 22 dB/1.16:1
  3 GHz: 14 dB/1.5:1
  6 GHz: 12 dB/1.7:1
- Output IP3: 70.5 dBm at 1 GHz
- Directivity:
   20 dB at 1 GHz
  13 dB at 3 GHz
   5 dB at 6 GHz
- Maximum Input Power:
  30 dBm for open or shorted termination
  33 dBm for matched termination

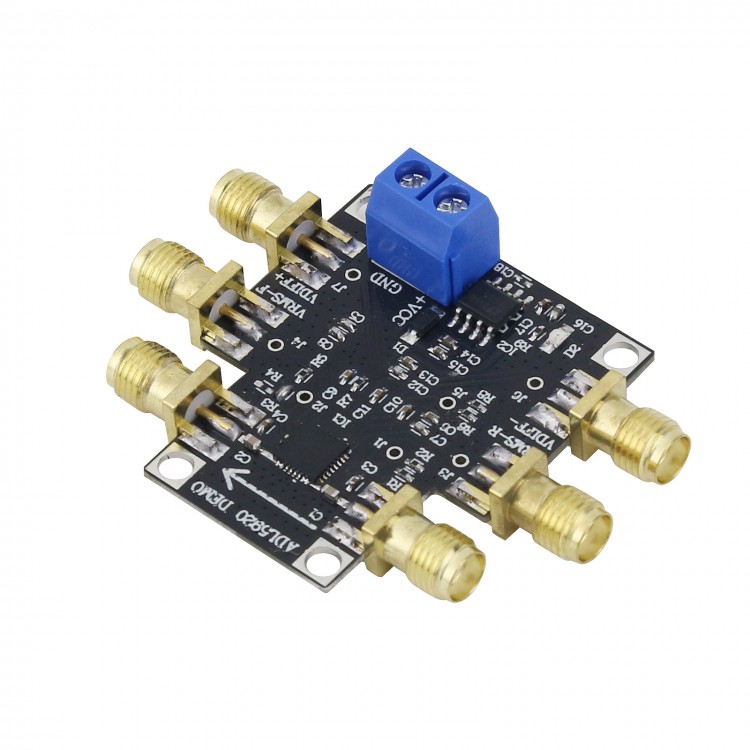

Module Parameters:
- Operating Frequency: 9 kHz to 7 GHz
- Size: 3.5 x 4cm (Without the size of SMA)
- Power Supply: +7 to +10V (With LDO chip, voltage regulator gets 5V to power the chip)
- Reserve 6 SMA interfaces, including RF input, RF output, forward power, reverse power, differential + power, differential-power.

Package Included:
- 1 x ADL5920 Detection Module
