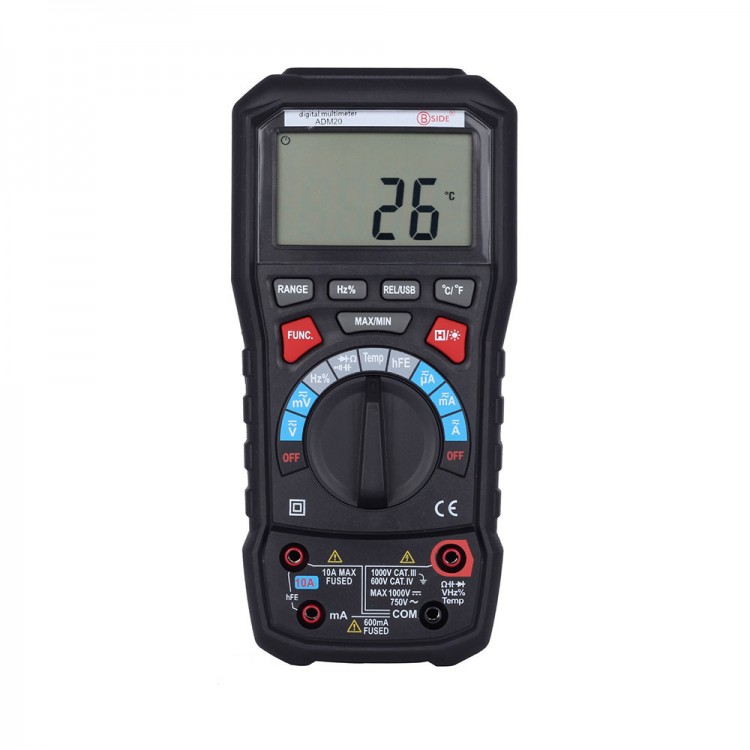

ADM20 True RMS Multimeter Digital Capacitance Frequency Temperature Tester Dual Display with USB Interface
Features:
- 100% brand new and high quality
- Auto range. Convenient exchange makes your measurement more accurate.
- Relative value measurement function. In this mode, the instrument display value = actual value-set reference value.
- USB Interface function. The measured data stored in the instrument can be uploaded to computer for display, record and analysis.
- Large LCD screen with backlight can help the user see the data clearly even in the night.
- Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.
Specifications:
- Operating Temperature:0 - 40 degree C
- Model Number:ADM20
- DIY Supplies:Electrical
- Operating Mode:Automatic range
- Measuring Resistance Range:60M
- Display Type:Digital Display
Specifications:
- DC Voltage: 60mA / 0.01mV, 600V / 0.1mV, 6V / 1mV, 60V / 10mV, 600V / 100mV, 1000V / 1V
- AC Voltage: 60mV / 0.01mV, 600mV / 0.m1V, 6V / 1mV, 60V / 10mV, 600V / 100mV, 750V / 1V
- DC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 1mA
- AC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 10mA
- Resistance: 600Ω / 0.1Ω, 6kΩ / 1Ω, 60kΩ / 10Ω, 600kΩ / 100Ω, 6MΩ / 1KΩ, 60MΩ / 10KΩ
- Capacitance: 10nF / 0.001nF, 100nF / 0.01nF, 1000nF / 0.1nF, 10mF / 0.001mF, 100mF / 0.01mF, 1000mF / 0.1mF, 10mF / 0.001mF
- Frequency and Duty: 10Hz / 0.001Hz, 100Hz / 0.01Hz, 1000Hz / 0.1 Hz, 10kHz / 0.001 kHz, 100kHz / 0.01Hz, 1000kHz / 0.1Hz, 10MHz / 0.001Mhz
- Temperature: -20~1000 degree , -4~1832 Fahrenheit
- Temperature Measurement Range: -20~1000degree , -4~1832 Fahrenheit
- Item Size: 19.5 * 9.5 * 6cm
- Item Weight: 378g (without battery)
- Power Supply: 4 * 1.5V AA Battery (not included)
Package included:
- 1 * ADM20 Digital Multimeter
- 1 * Manual
- 1 * USB Data Cable
- 1 * Temperature Probe
- 1 * Multi-Function Socket
- 1 Pair of Test Lead
