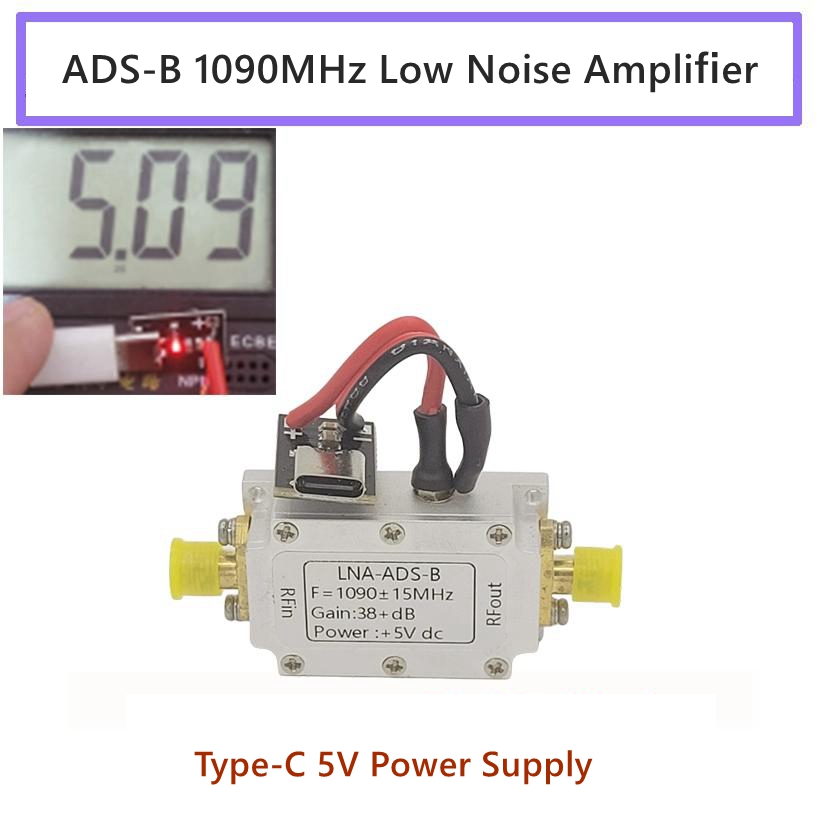

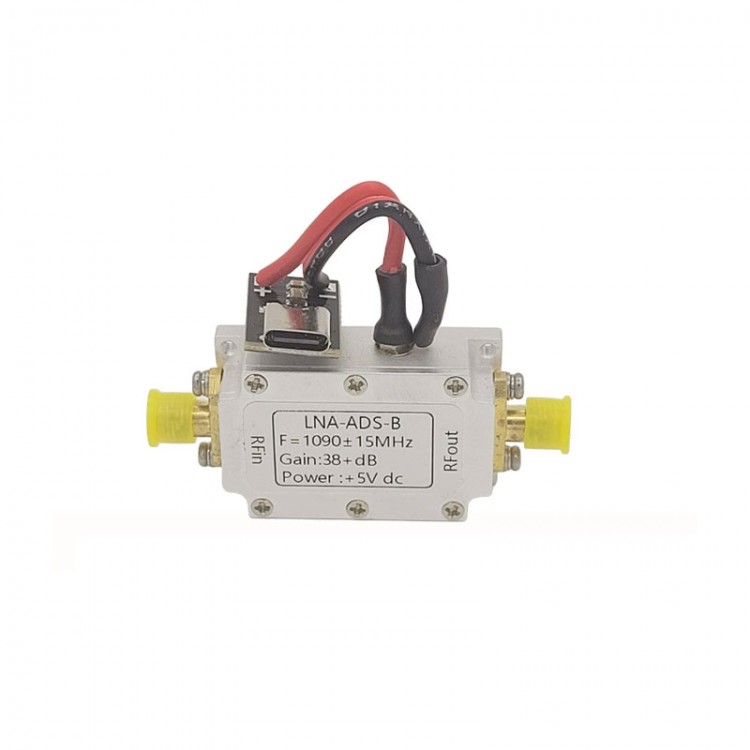

ADS-B 1090MHz LNA Low Noise Amplifier Bandpass RF Amplifier Module (with Welded Type-C 5V Power Supply Module)
Description:
- This RF module is carefully designed using two-stage low noise amplifiers and two-stage dedicated filters, and is used for front-end RF amplification of ADS-B receivers. It has the characteristics of high gain, low noise, and large dynamic range.
Specification:
- Working voltage/current: 3.3 - 5VDC/170mA
- Working frequency: 1090MHz (dedicated for ADS-B receiver)
- Amplification gain: 38+dB
- Out-of-band rejection: ≤-50dB
- Special design: Adopting a single filter structure to suppress out of band signals ≥ 50dB, effectively improving signal-to-noise ratio.
- Size: 41 x 25 x 12.5mm
Precaution:
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.
Package Included:
- 1 x Low Noise Amplifier (Welded 5V Power Supply Module)
