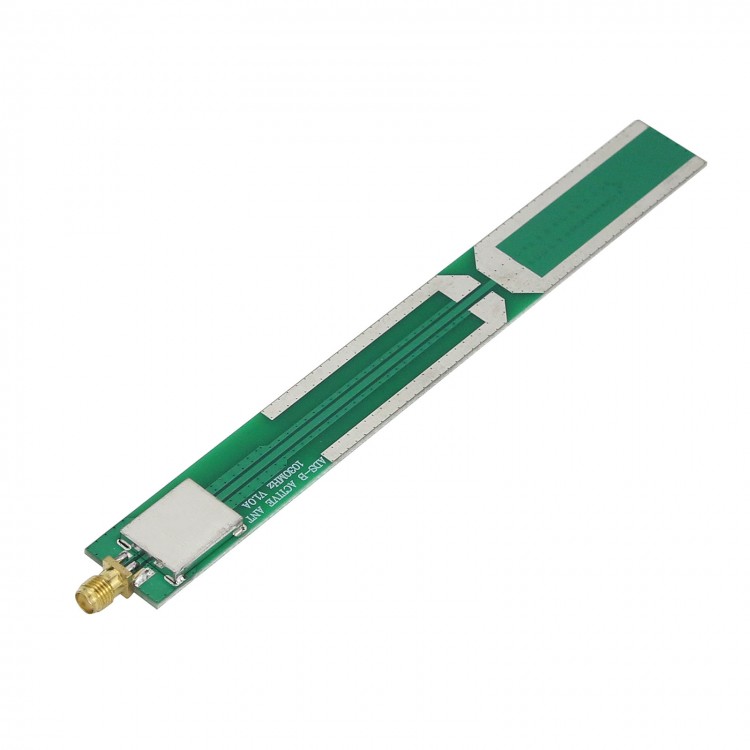

ADS-B Antenna 1030MHz Active Receiving Antenna for Radio Frequency
Technical Parameters:
- Operating frequency: 1030±15MHz
- Passive gain: 2dBi (dipole antenna)
- Antenna polarization: omnidirectional vertical line polarization
- Active gain: 20dB
- Out-of-band rejection: >30dB
- Operating voltage: 2.5-5.5V (skin negative core)
- Working current: 80mA
- System impedance: 50Ω
- Antenna weight: 15g
- Dimensions: 20×170mm
- Connector form: SMA standard female head (outer screw inner hole)
Package Included:
- 1 x ADS-B Active Receiving Antenna
