ADS-B Filter Band Pass Filter BPF Filter 1090MHz Passive Software Radio SDR Narrowband Filter

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.27
  • Price in reward points: 183 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $17.90 $17.54 $16.99 $16.26 Contact US
Quantity:

ADS-B Filter Band Pass Filter BPF Filter 1090MHz Passive Software Radio SDR Narrowband Filter

Technical Indicators:

- Center frequency: 1090MHz
- Bandwidth: ±15MHz
- Insertion loss: 1.5db
- Out-of-band suppression: 40dB@50MHz
- Input impedance: 50 ohms
- Output impedance: 50 ohms
- Maximum input signal strength: 13dbm (20mw)
- Input interface: SMA-K (SMA female connector)
- Output interface: SMA-K (SMA female connector)
- No power supply

Package Included:

- 1 x Band Pass Filter

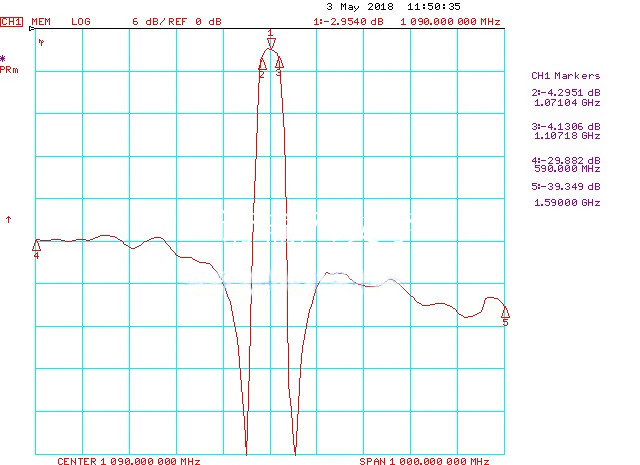

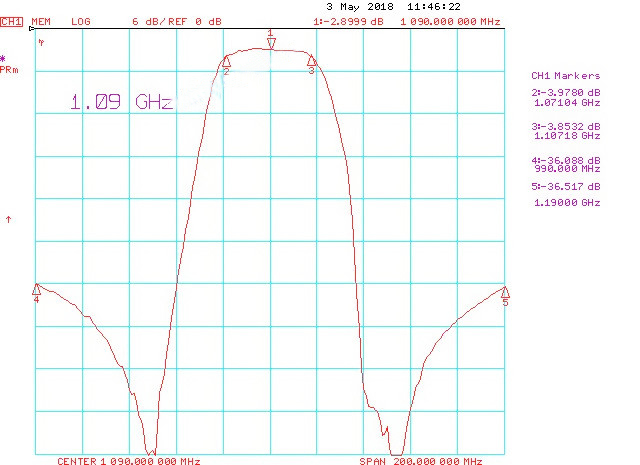

Test Charts:
