ADS1299 8-Channel EEG Acquisition Module WiFi + USB Version Brain Wave Sensor EEG/BCI for Teaching and Research

Availability: In stock, usually dispatched in 1 business day

  • Price:$374.49
  • Price in reward points: 3745 Reward Points: 37
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $367.00 $359.51 $348.28 $333.30 Contact US
Quantity:

ADS1299 8-Channel EEG Acquisition Module WiFi + USB Version Brain Wave Sensor EEG/BCI for Teaching and Research

Description:

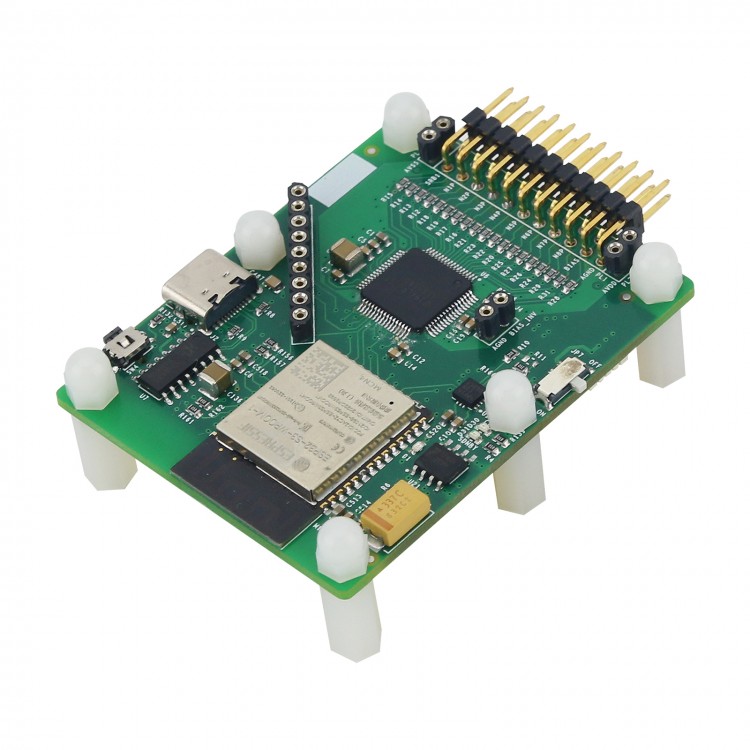

- ADS1299 EEG collector, 8 channels, WiFi + USB wired version.
- Adopting a single chip ESP32S3 to complete control and WiFi/USB wired transmission, without external MCU, compared to the MCU + WiFi module solution, it has lower power consumption, better performance, and can achieve high-speed sampling. WiFi supports AP and STA modes, which can be used as a hotspot or added to a WiFi network. Working mode configuration can be done through the built-in Web Server on the acquisition board.
- Supports multiple sampling rates such as 250, 500, 1000, 2000, etc., with up to 2000Hz synchronous sampling supported on 8 channels and up to 1000Hz synchronous sampling supported on 16 channels.
- Built in 2000mAH lithium battery, with a battery life of over 8 hours.
- Provide self-developed for Python upper computer executable programs to achieve various functions such as waveform display, real-time FFT spectrum, band calculation, data file storage, and real-time forwarding of LSL network data streams.
- Support the configuration of hardware working modes, including differential, SRB1 common reference, SRB2 common reference, BIAS common mode negative feedback output, and other functions.
- Provide communication protocols to facilitate secondary development.
- EEG data can be forwarded and imported into EEGLab in real-time through LSL, facilitating subsequent processing.
- The onboard TF card slot can store EEG data.
- This kit is only for scientific research or learning purposes. Please contact our customer service to get the user manual after receiving the product.

Package Included:
- 1 x EEG Acquisition Module
