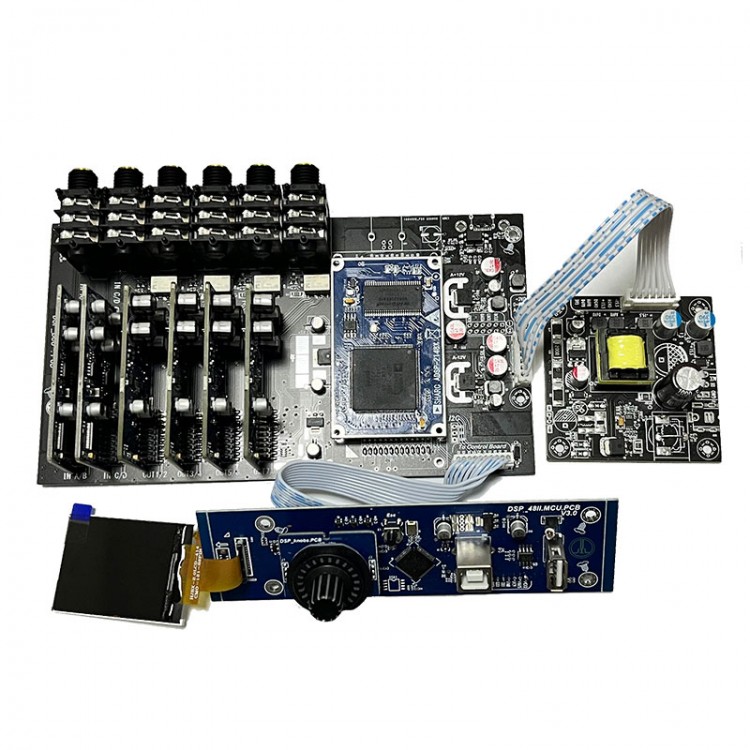

ADSP-21489 DSP Frequency Divider Board 4 IN 8 OUT CS4398 Low-Voltage Board DC10V-28V for ADI SHARC

ADSP-21489 DSP Frequency Divider Board 4 IN 8 OUT CS4398 Low-Voltage Board DC10V-28V for ADI SHARC

Low-Voltage Board:
* ADC/DAC/DAC/ can be replaced with either AES input or output
* Support 4-channel analog input and 8-channel digital output or 4-channel digital input and 8-channel analog output
* Also support 2-channel digital input and 2-channel analog input
* Power: DC10V-28V low-voltage

Description:
This series uses latest fourth-generation processor ADSP21489 for ADI SHARC, with built-in routing/gain/delay/compression/limiter/mute/equalization/high-low-pass filter/all-pass filter and phase and other conventional audio algorithms. Add the following functions, and each function can be turned off or turned on independently.
A. 96KHz/192KH sampling rate switching, combined with functions and sound quality, bringing more scene applications.
B. The dynamic equalizer is automatically optimized for the sound of a large signal or a small signal.
C. FIR filter can perfectly correct the phase distortion caused by system parameter adjustment.
D. The delay supports up to 1200ms per channel. With the fine adjustment of the sound field or phase, the precision is optimized to 0.01ms. The minimum high pass can be set to 10Hz.
E. 4-channel inputs and 8-channel outputs, fully routed, can be set to a variety of operating modes.
F. Color LCD display, real-time dynamic level display, Chinese and English interface optional.
G. One-key mute and overall master volume control.
H. Equipped with Wifi/RS485 central control and drive-free USB control interface, which can be adjusted through the control software on the PC side.
I. Add an I2S slave mode interface, support ASRC; support our USB interface card SA9227, with sample rate 32K-384K/bit width 16/24/32Bit. Support both recording and playing.

Package Included:
* 1 x Set of DSP Frequency Divider
