AF200 USB Digital Interface Audio Interface with AS318-B Crystal Oscillator Supports DSD1024 PCM768

AF200 USB Digital Interface Audio Interface with AS318-B Crystal Oscillator Supports DSD1024 PCM768

Version With AS318-B Crystal Oscillator:
AccuSilicon AS318-B DIP14 audio crystal oscillator with large package and its phase noise as low as -167dBc/Hz at 100kHz

Description:
AF200 digital interface supports I2S-HDMI-compatible and three SPDIF outputs. The whole machine adopts the architecture for ARM+CPLD independently designed by XING audio technology group. In terms of resolution and sound field, it has a very good performance. The AF200 supports up to PCM 768KHz and DSD1024 output. The USB interface adopts an advanced Type-C socket, enabling more convenient connection. The I2S-HDMI-compatible can be configured to flexibly change the output pin definition. It can be adapted to most DAC decoders with I2S-HDMI-compatible input on the market. Please note the difference between I2S-HDMI-compatible and regular HDMI-compatible, and don't confuse the two.

Please refer to the following table for the output capacity of each interface.

Attention: When playing DSD, it can support up to DSD1024 in native mode. In DoP mode, it can support up to DSD512.

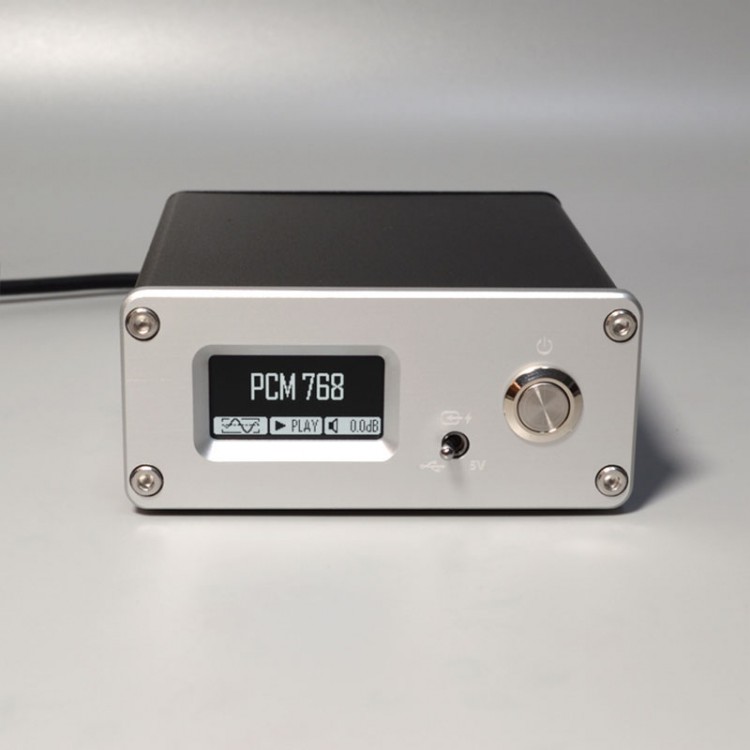

There are two power supply modes, i.e., external 5V power supply and directly powered by USB. The power supply modes can be switched by the toggle switch on the front panel. The power supply system of AF200 audio interface consists of 4 very low noise LDOs, 5 ultra-low noise LDOs, and 3 wide voltage LDOs. These components effectively guarantee a high level of sound quality. The USB interface comes with a gold-plated Type-C USB cable. External 5V power supply is not provided by our store and needs to be prepared by users. The size of the power connector is 5.5-2.1mm. The rated voltage is 5V and the current is 200mA.

Powerful configuration program tool software is provided with it. Experienced HiFi players can flexibly configure the parameters of the interface according to their needs. The way to enter the configuration mode is: 1. Connect the digital interface to your computer; 2. Press and hold the button with the gear icon on the rear panel and don't let go; 3. Press the power switch to power on. When the gear icon is displayed on the digital interface screen, release the button on the rear panel and the parameters can be read and written through the configuration program. We only provide limited technical support for the configuration program. If you don't know anything about digital audio, please learn it by yourselves. We are very sorry that we are unable to provide detailed teaching. Thank you for your understanding!

Note:
- The I2S-HDMI-compatible or AES interface of some decoders may not be compatible with the AF200. This situation is very rare, but it is not a quality problem, and it cannot be used as a reason for return.

Package Included:
- 1 x USB Digital Interface
- 1 x Gold-plated Type-C USB Cable

Packaging Details:
- G.W.: 0.65kg
