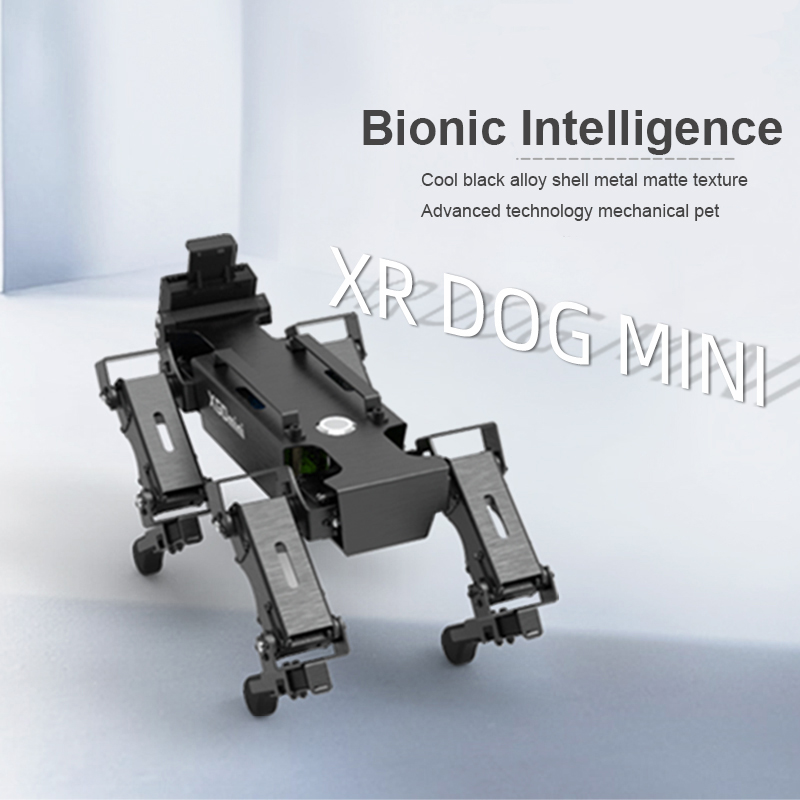

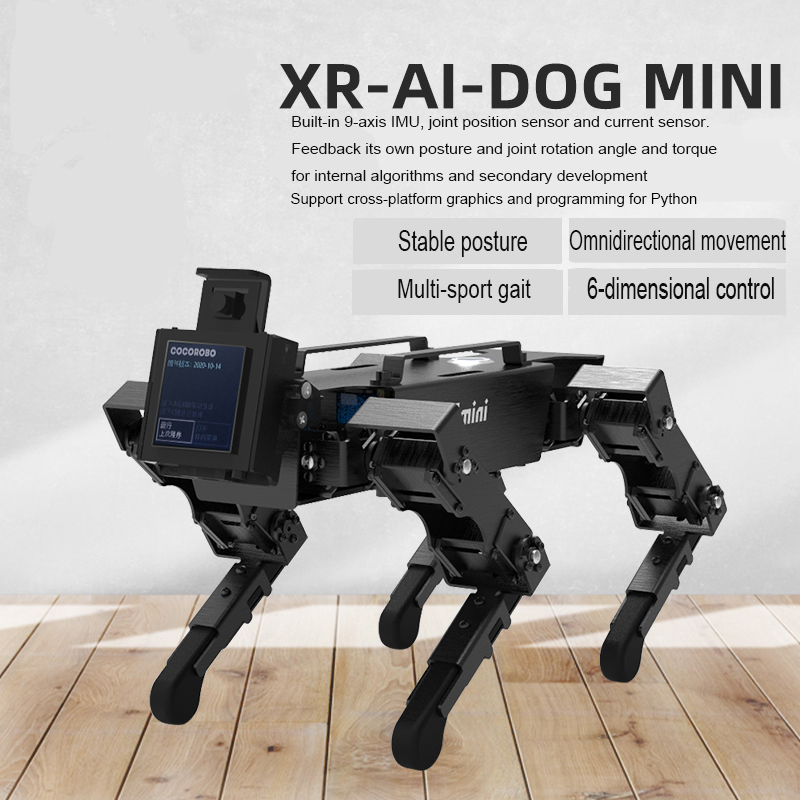

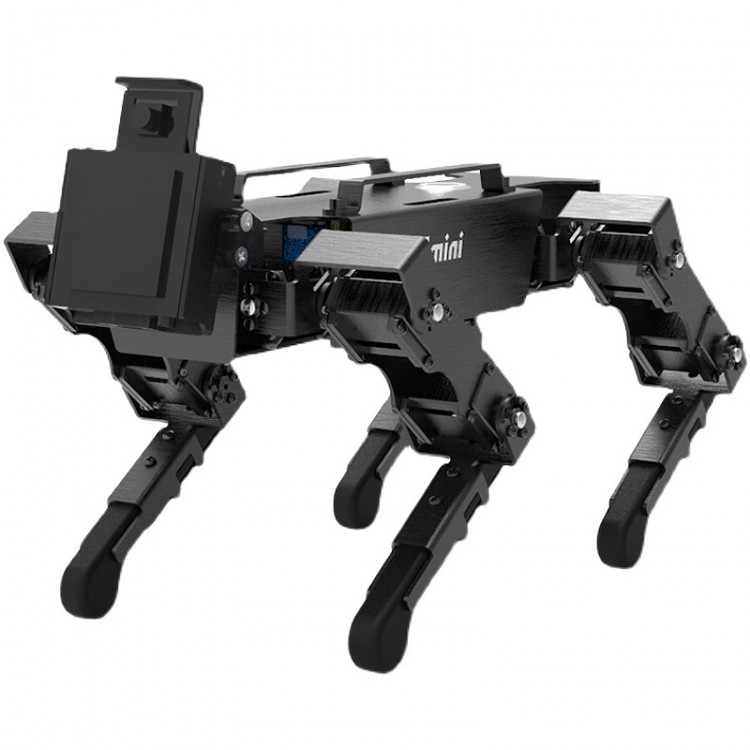

AI Bionic Robot Dog Four-Legged Dog Intelligent Mechanical Robot Pet With 2MP Camera Black Matte

AI Bionic Robot Dog Four-Legged Dog Intelligent Mechanical Robot Pet With 2MP Camera Black Matte

Robot Parameters:

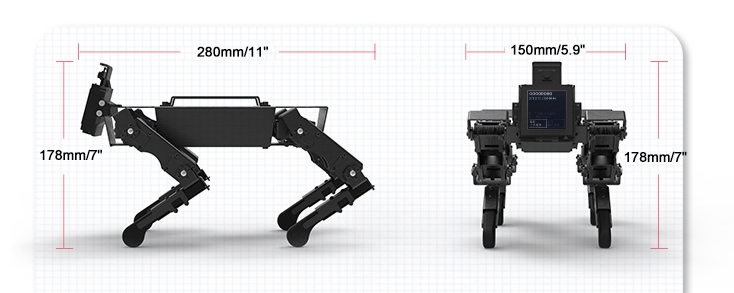

- Dimensions: 280 x 150 x 60mm/11 x 5.9 x 2.4"
- Battery: 7.4V 3200mAh lithium battery
- Product weight: 600g/1.3 lb
- Shell material: aluminum alloy
- Working voltage: 7V-8.4V
- Standing working current: 250mA
- Running working current: 800mA
- Twisting working current: 1450mA
- Maximum working current: ≤3A
- Charger rated input: 220V 50Hz
- Charger rated output: 8.4V-1A

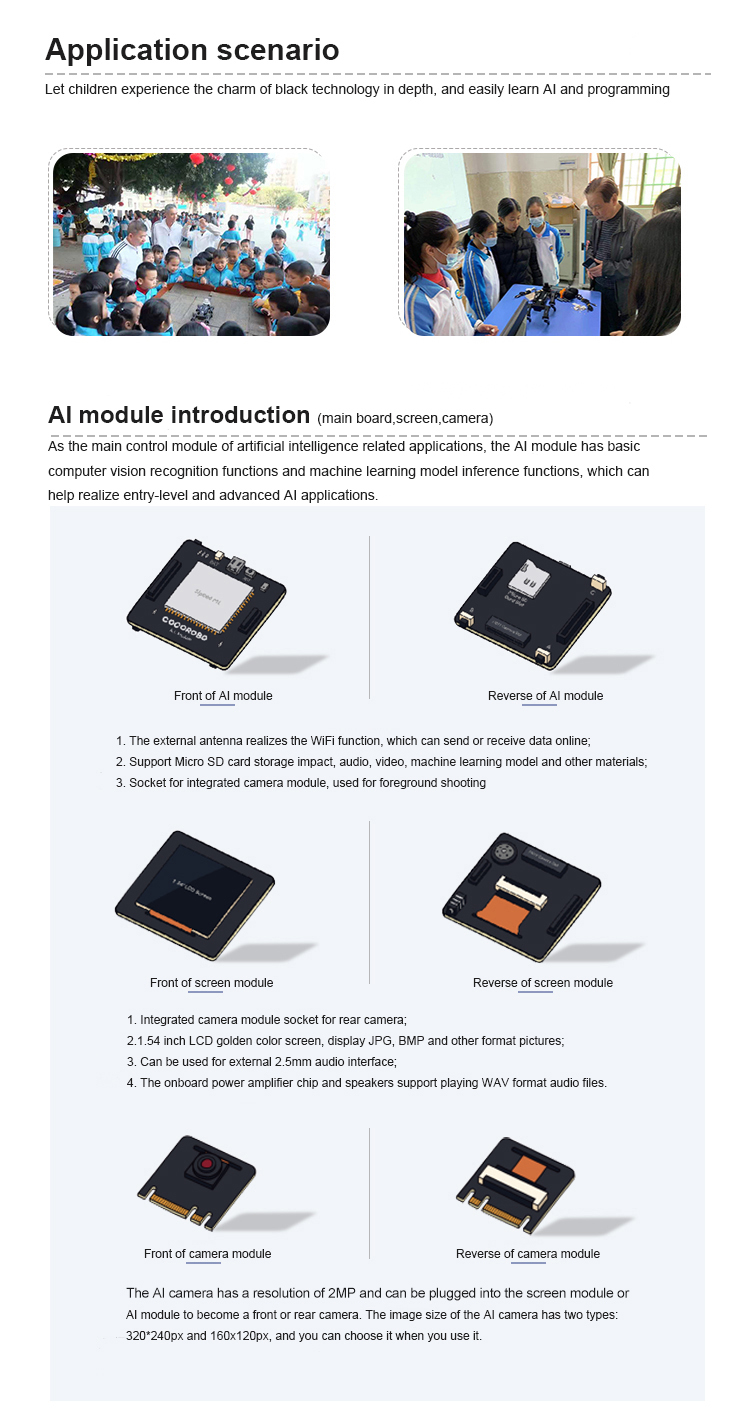

Application of AI Module:
It is mainly used for the projects of Al operation, such as visual recognition and voice recognition, and can also realize WiFi 2.4GHz wireless communication. The module is equipped with a system for MicroPython, which can be programmed directly using syntax for Python. It is also equipped with a 240*240 pixel full-color LCD screen and an OV2640 camera to provide image display, audio output and camera input functions.

Module Functions:
1. Basic Functions:
- Use with 2 million pixel camera module in the kit, support front and back shooting, and support video recording
- Support microSD card (only SD cards with a capacity less than 16GB), which can read external images, videos, AI models, music and other files, and also support direct writing to files
- Support the playing of WAV format audio files, and can play music through an external speaker on the audio dock on the screen module
- Support for recording and saving audio, and support for audio spectrum analysis, such as monitoring the sound level through a microphone
- With 240*240 pixel full-color LCD screen in the kit. It supports drawing basic graphics and text, and supports drawing JPG pictures
- With the optional Wi-Fi antenna, it can support connection to 2.4GHz Wi-Fi hotspots, and can communicate with cloud applications to realize wireless data transmission. Later, by connecting to the network to call the API interface and database interface, XGO can be more intelligent
- Onboard serial port for serial communication while being powered by XR DOG MINI

2. Visual Identification:
- Color tracking
- Color analysis
- Basic shape tracking, such as straight line/edge, circle, rectangle
- Automatically learn object features and recognize and track them
- Barcode tracking such as for QR code, AprilTag, DataMatrix
- Route tracking (double line or single line)

3. Preset Machine Learning Model:
- Support voice recognition of specific voices (unlimited voice types such as Mandarin, English, dog barking)
- Support Mandarin recognition of non-specific human voice

4. Speech Recognition:

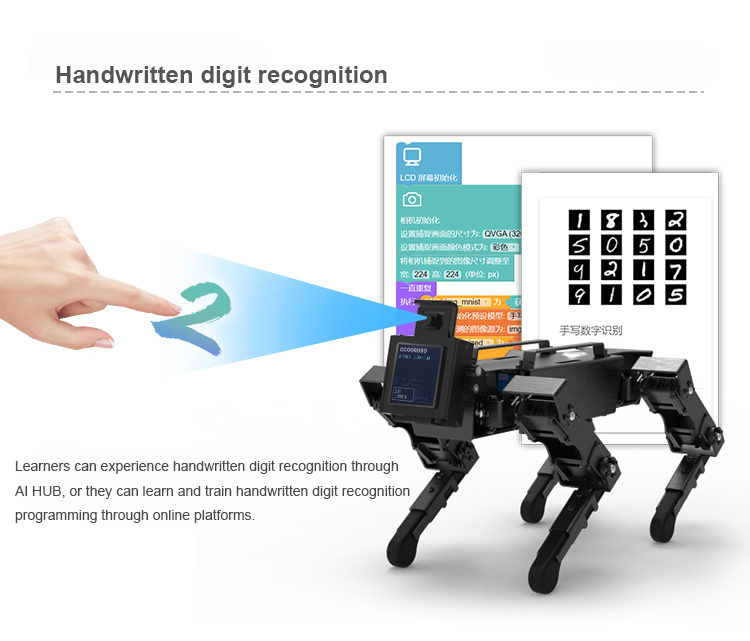

- MNIST handwritten digit recognition

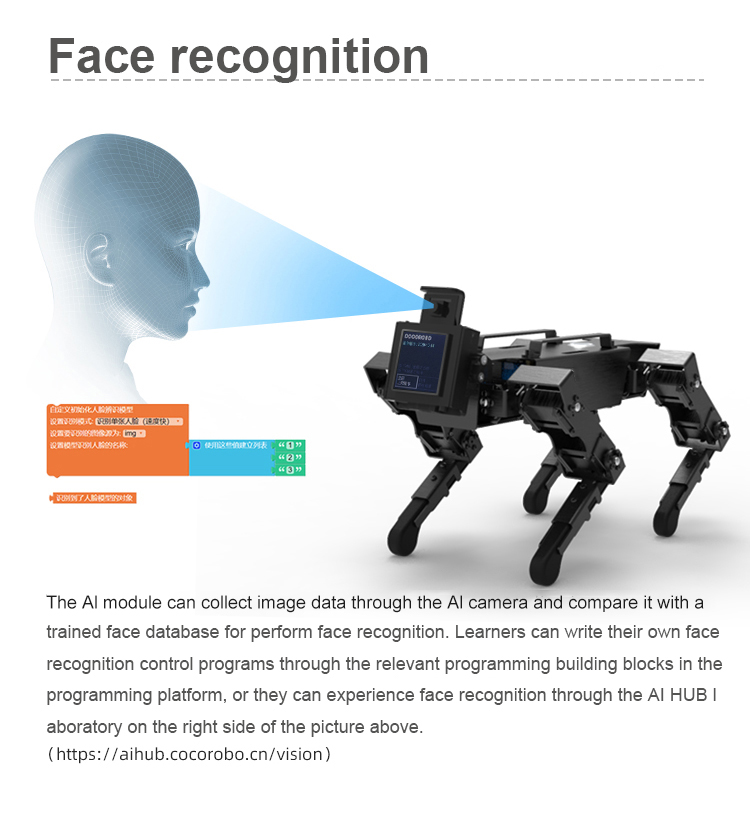

- Face recognition and tracking
- Face recognition (distinguish different faces)
- Human body recognition and tracking

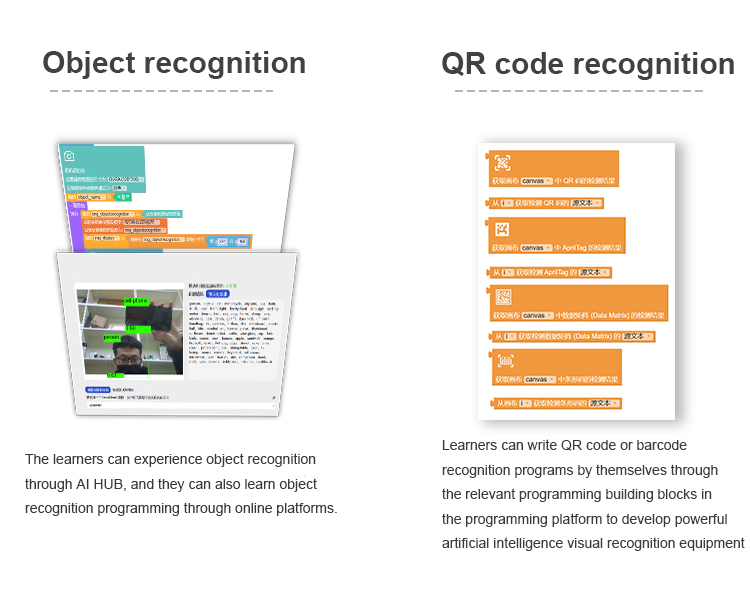

- Simple object recognition and tracking
- Identifiable: airplanes, bicycles, birds, boats, water bottles, buses, cars, cats, chairs, cows, dining tables, dogs, horses, motorcycles, people, potted plants, sheep, sofas, trains, and monitors
- Basic road sign recognition and tracking

5. Simple Garbage (Classification) Identification and Tracking

Al Module Use:
- Size: no more than 45 x 45mm/1.8 x 1.8" (length * width)

Main Components:
- The main controller adopts AI chip Sipeed M1w, equipped with a K210 (RISC-V Dual Core 64bit at 400MHz), built-in FPU, KPU, FFT, realize offline AIoT function (Edge Computing), 16M Flash, 8M SRAM. Support Wi-Fi 802.11b/g/n, use by external antenna. Supports FPIOA, UART, GPIO, SPI, I2C, 12S, WDT, TIMER, RTC, including most common interfaces used in devices for Arduino and microbit, and also provides image collection function, which can provide up to 2 million pixel image source for taking pictures or record video, the standard image source is QVGA (320*240px)
- One MEMS digital microphone, two programmable monochromatic LED lights, three programmable touch buttons, one audio signal amplification chip, one microSD card slot, one NGFF format slot (used to insert camera module ), one MicroUSB interface, one 1.0-pitch 2P power input socket, one 240*240 pixel full-color LCD screen, and one camera model OV2640

Package Included:
- 1 x Robot Dog
- 1 x Power Adapter
- 1 x User Manual
