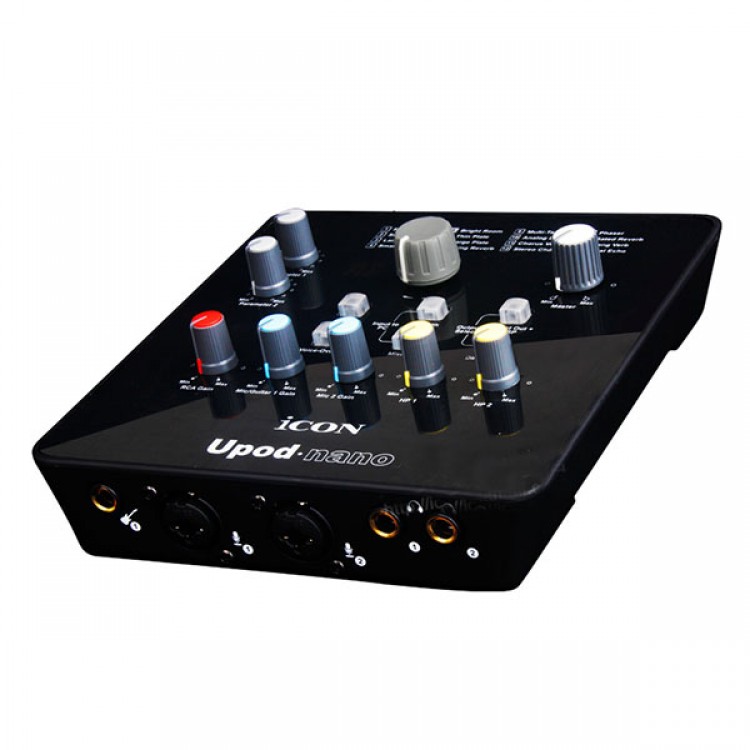

Aiken ICON Upod Nano USB External Sound Card Shout Wheat Presided Computer Dodge k Song Recording
Features
UPodNano
16-Bit 48KHz 2 mic-In/1 guitar-In, 2-Out USB Recording Interface
2x2 analog I/O full duplex recording and playback
ICON innovative unique mic preamp with individual gain control.
+48V phantom power equipped.
Build-in ICON 16-DSP effect with control knob on the top panel.
2 DSP parameter adjustment knobs on the top panel.
2 analog outputs on 1/4” TRS jacks or stereo output on 3.5mm phone connector.
Build-in stereo RCA input with individual gain control
Allow to use as a stand-alone device with RCA input & DSP processing.
Attenuator function button equipped for music fade out automatically when mic signal present.
Buttons equipped for controlling mic signal (dry/wet) recording to PC.
Buttons equipped for controlling monitoring signal (dry/wet).
Master volume control on the top panel
2 headphone outputs on 1/4” TRS jacks with individual volume control
USB2.0 compatible and USB bus-powered
Plug and play and no driver installation is needed.
Compatible with Mac OS (Intel-Mac) and Windows XP, Vista (32-bit/64-bit), Windows 7 (32-bit/64-bit) & Windows 8 (32-bit/64-bit)
Full duplex, simultaneous record/playback
Tech Specs
|
Mic Input |
|
|
Frequency Response |
22Hz to 22kHz (+/-0.2dB) |
|
Dynamic Range |
95dB, A-weighted |
|
Signal-to-Noise Ratio |
-95dB, A-weighted |
|
THD+N |
<0.0061% (-80dB) |
|
Crosstalk |
-85dB @ 1kHz |
|
Input Impedance |
Mic in:1.8K Ohms, typical |
|
Total Gain Range |
+39dB |
|
Inst Input |
|
|
Frequency Response |
22Hz to 20kHz (+/-0.2dB) |
|
Dynamic Range |
95dB, A-weighted |
|
Signal-to-Noise Ratio |
-95dB, A-weighted |
|
THD+N |
<0.0061% (-80dB) |
|
Crosstalk |
-85dB @ 1kHz |
|
Input Impedance |
Inst in:500K Ohms, typical |
|
Total Gain Range |
+38dB |
|
Line Inputs (RCA IN, Unbalanced) |
|
|
Frequency Response |
22Hz to 20kHz (+/-0.2dB) |
|
Dynamic Range |
95dB, A-weighted |
|
Signal-to-Noise Ratio |
-95dB, A-weighted |
|
THD+N |
<0.003% (-86dB) |
|
Crosstalk |
-90dB @ 1kHz |
|
Input Impedance |
10K Ohms, typical |
|
Adjustable Gain |
+8dB |
|
Line Outputs 1/2 (Stereo, Unbalanced) |
|
|
Frequency Response |
22Hz to 20kHz (+/-0.2dB) |
|
Dynamic Range |
95dB, A-weighted |
|
Signal-to-Noise Ratio |
-95dB, A-weighted |
|
THD+N |
<0.003% (-86 dB) |
|
Crosstalk |
-90dB @ 1kHz |
|
Nominal Output Level |
Unbalanced: +2dBV, typical |
|
Headphone Outputs: (at Maximum Volume; Into 100 Ohm load) |
|
|
Frequency Response |
22Hz to 20kHz (+/-0.2dB) |
|
Power into Ohms |
20 mW into 100 Ohms |
|
THD+N |
<0.06% (-66dB) |
|
Signal-to-Noise Ratio |
-95dB, A-weighted |
|
Max Output Level into 100 Ohms |
+2.0dBV, typical |
|
Load Impedance |
32 to 600 Ohms |
OS Copmatibility
OS Copmatibility
|
iOS 4 |
No |
|
iOS 5 |
No |
|
Mac 10.4 |
No |
|
Mac OS 10.5(Intel CPU/32-bit/64-bit) |
Yes |
|
Mac OS 10.8(Intel CPU/32-bit) |
Yes |
|
Mac OS 10.8(Intel CPU/64-bit) |
Yes |
|
Windows XP (32-bit) |
Yes |
|
Windows XP (64-bit) |
Yes |
|
Vista (32-bit) |
Yes |
|
Vista (64-bit) |
Yes |
|
Windows 7 (32-bit) |
Yes |
|
Windows 7 (64-bit) |
Yes |
|
Windows 8 (32-bit) |
Yes |
|
Windows 8 (64-bit) |
Yes |
