Aimxy Z Head Tracking System Head Aiming Simulation Racing Game Sensor for DKS TrackIR5/TrackNP5

Description:
- Core technology: fully independent software and hardware research and development, master all core technologies, maintain continuous software upgrading, widely listen to opinions and suggestions, and improve user experience
- Significant advantages: lightweight and easy to carry, sensitive response, stable picture, angle of view rotation and viewpoint displacement will not be distorted due to the limitation of the placement position of the locator
- Support system: Windows 10 and Windows 11

Features:
1 The user does not need to wear any equipment, and can use headphones, wear glasses
2. The user can turn his head left and right to respond up to 90 degrees, and the head up and down can reach 45 degrees, and there will be no overrun stuck.
3 Using visible light AI technology, no infrared sensor is used, durable and safer
4 While ensuring the effect, the GPU is not used at all, and the CPU can be very low
5 Easy to install, you can easily place the device on various screens or screen lights
6 Under normal ambient brightness, the effective use distance can reach 3m
7 No calibration required, eliminating interference
8 Support dark light
9 Lightweight and portable
10 No need to collect any user feature information, no need to save video files, to ensure privacy and security
11 Unique designs such as single-button return to center, stabilization, pause, and memory seat

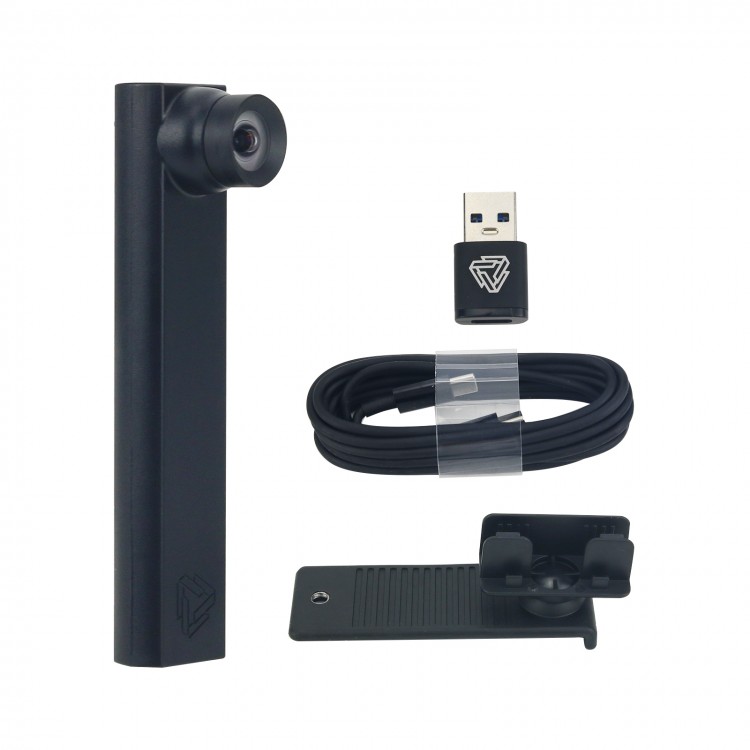

Package Included:
- 1 x Main Unit
- 1 x Lens Cap
- 1 x Deformable Base
- 1 x 2M/6.6FT Black Type-C to Type-C Cable
- 1 x Type-C to USB Adapter

Equipment Installation:

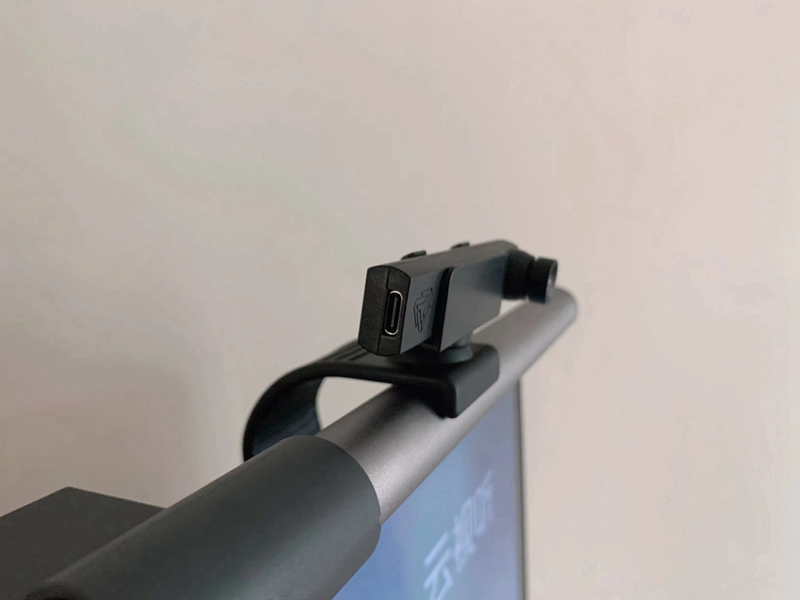

- In order to adapt to various possible placement positions, we have adopted a deformable base design. Please adjust the base shape as required so that the Aimxy Z device can be placed stably at the required position, such as the top of the screen or above the screen lamp.

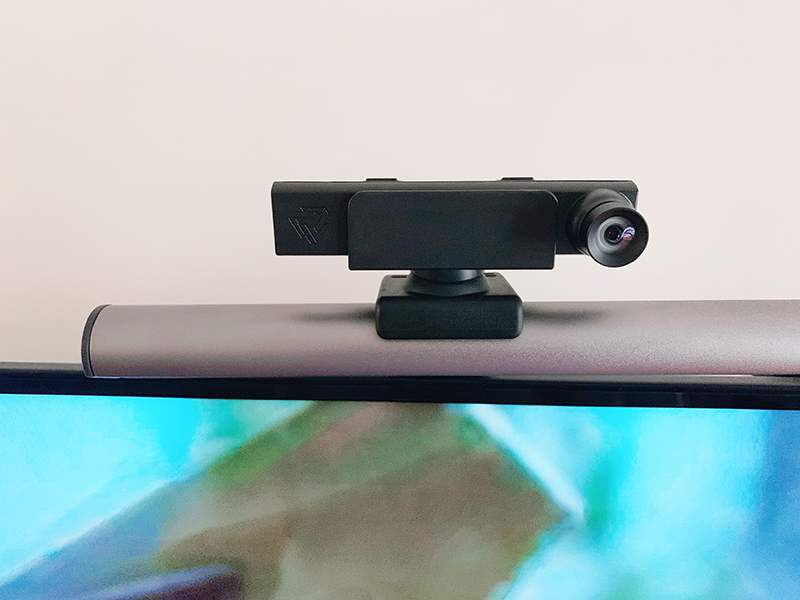

- The design of the side lens is to take into account the structural occupancy of the top middle position such as the screen lamp, which leads to the problem that the lens cannot be absolutely centered.When the Aimxy Z device host is clamped into the base bracket, it can make the lens on the left or right as required.When the lens is set to the left, turn on the "flip" switch on the front page of Aimxy Z software.

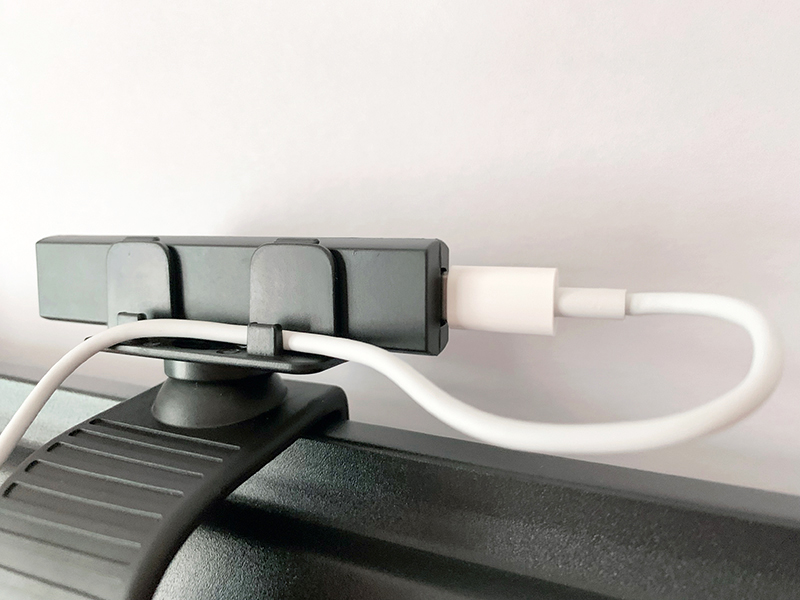

- Use the attached connecting line to connect the Aimxy Z device with the computer. In order to ensure the stable placement of the device, wrap the connecting line inserted from the side of the device back and clip it into a line card behind the base bracket, and then turn the connecting line back out to naturally sag.

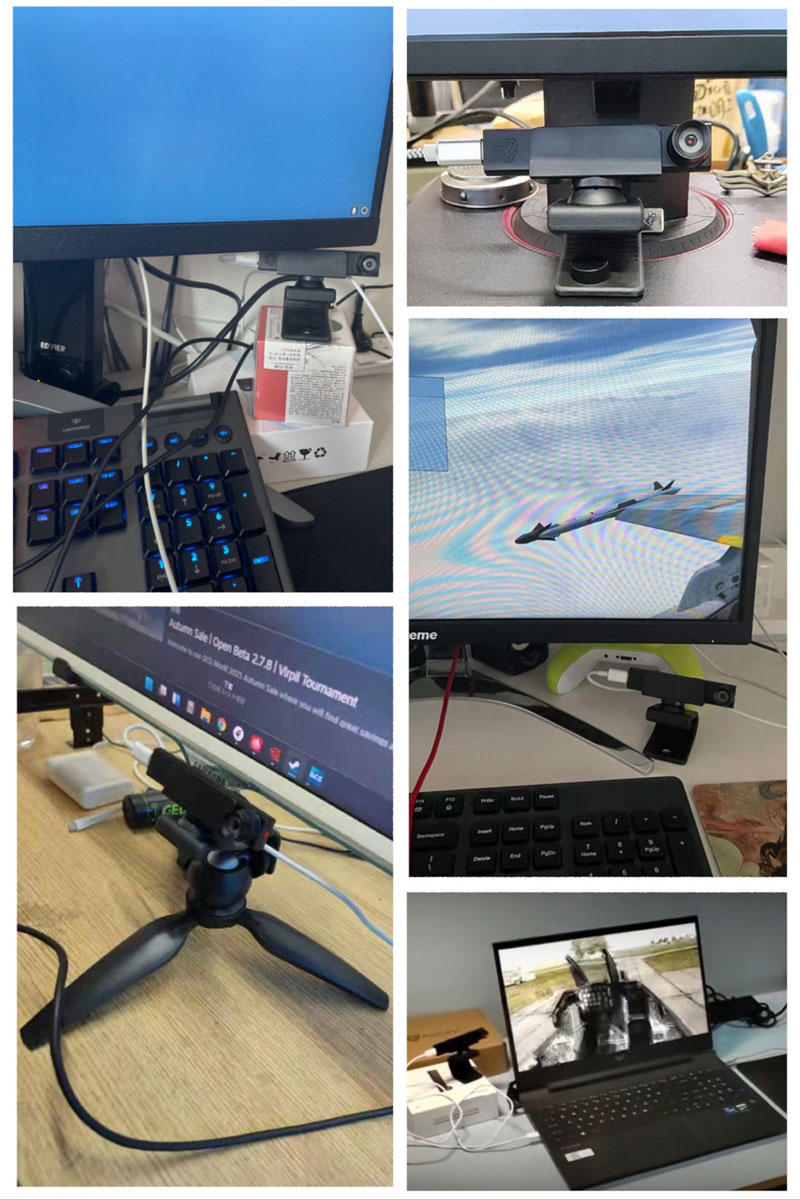

- The equipment shall be placed at a distance of not less than 40cm/15.7" from the head, and too close may lead to exceeding the lens range.The Aimxy Z can work normally when it is placed 15 degrees above the front, 30 degrees below the front, and 30 degrees from the left and right sides of the head. It is not allowed to look down or squint at the head too much.It can be placed at the height of the lower edge of the screen to obtain the best effect, but it is necessary to avoid the obstruction of objects such as rocker or steering wheel to the head imaging.In case of image inching caused by blinking, in addition to turning on the AI+ switch according to the following description 2.5, press to place the device on the lower edge of the screen.
- Start the computer, run Aimxy Z software, adjust the deformable base and hemispherical joint of the equipment, make the pitch and deflection angle of the equipment lens appropriate, and make your head image in a moderate position Please pay special attention: try to move the head to all possible positions in use to ensure that the head frame does not exceed the boundary. Once it exceeds the boundary, it will immediately lead to abnormal sensing Therefore, it is suggested to provide more space for downward displacement, that is, when sitting in a normal position, the head frame can be slightly upward relative to the central area.
- The focal length of the lens of the factory equipment has been adjusted, but if it is found that the picture is obviously blurred, the lens can be slightly rotated for fine adjustment. Do not remove the lens. Damage to components will lead to warranty failure.
- When wearing some glasses with strong reflection made of special materials, please turn your head up, down, left, right and move your head. If you can see the light and shadow reflected by the lens change in the image, please move the Aimxy Z device to the left or right, and turn the lens towards yourself (see 1.4 for side placement restrictions) until you can't see the continuous reflection.
- If the head of the use position is more than one meter away from the equipment, the "zoom" slider on the home page of Aimxy Z software can be used to appropriately enlarge the head image.Please note that enlarging the image will increase the CPU usage. The Aimxy Z supports a distance of up to 3m/9.8ft. Properly enlarging the image and normal ambient brightness can ensure the effect of long-distance use.
