Product Description:
- 7 in 1 Air Quality Testing,home use detector.Formaldehyde,UK DART sensor,accurate.
- With trend charting,it can record changes in the day.G5 laser detector.PM1.0,PM2.5,PM10,to 6 kinds particle counter full monitor.

User manual:Click here

Cautions:
1.Please put the device on the desk while using it, make it straight against the table will help getting the correct readings. If you want use it when walking outside or moving, please do not cover the right side of the device, it will influence the sensor of tem-perature and Formaldehyde(HCHO).
2.Do not use it on the bed.
3.When using this detector for the first time, please wait for 1 hour for data self-adjusting. It still needs 5 more minutes to finish the adjusting process to make sure the the correct readings after several times using.
4.If there is need to get the Formaldehyde(HCHO) readings, please shut down the tested venue’s windows and doors for at least 12 hours.(International standard)
5.The yellow LED beneath the screen shows battery capacity, while flashing 4 times means the battery is fully charged. The none battery version also has a LED light, it will be lit as long as the device connected to the power source.
6.Do not use this device under severe contaminated environment. It will cause the sensor overload, and may leave damage to the sensor permanently.
7.The dusty surroundings will jeopardize the laser sensor. the result of PM reading could be lower than the real data.
8.Please do not short circuit the battery, do not put the device under hight temperature circumstance or any other environment that can leave damage to this electronic device.
9.Stay away from silicon steam, shampoo or other chemical reagents.

For the first time using this detector, the package would have peculiar smell, and that can influence the readings of the device, please keep it turned on and leave this device for 1 hour then reset the data. that will assure the device stays in a perfect condition.
Device Components Suppliers

AirMaster 2 Testing Subject:
- Tear off the package: get the device out.
- Checking the components: Is there any broken or falling part, if some components are not steady, try to reinsert or press hard to make it stick on the board.
- Connected to Power source: None battery version should connect the USB cable first.
- Turn on the device: Toggle the black switch on the left side, and turn on the device.
Welcome Interface: At the welcome interface, users can switch the operating language by pressing button 2, after hearing the beeping sound, the language will be switched to Chinese or English.

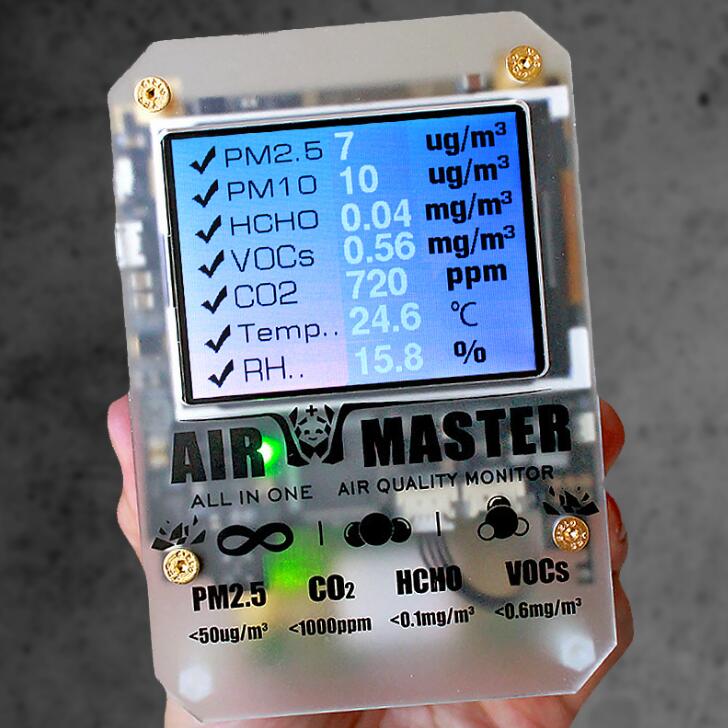

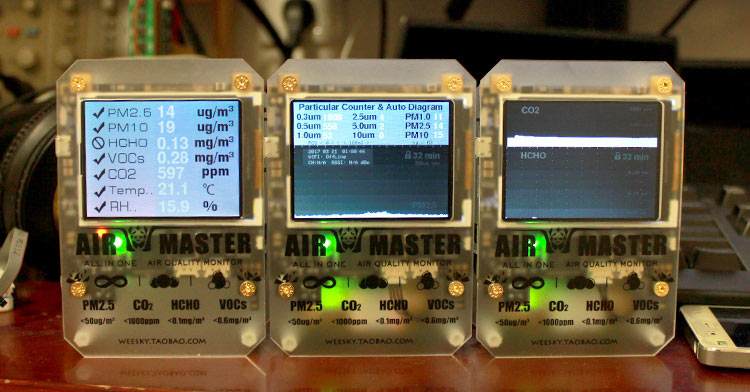

- Interface 1: Interface 1 is main display of this device, it shows 7 major environment element values. the numbers will be refreshed every 2-3 seconds, the speed is 1 time faster than last generation of Air Master.
- Interface 2: While at the Interface 1, Pressing down button 1 on the right side will switch to interface 2. In this display, it contains each sensor’s data, The area above is particular matters counter, the area below is history data of PM2.5. Hold button 2 on the right side will active the duration time selection, the time line will change into green. After activate the time setting, keep pressing button 2, it will offer different time durations selection, the minimum is 32 minutes and the maximum will be 24 hours, and the diagram will be erased while holding the button 2.

Note:For AM7 standard version and AM7 Plus,testing Subject are the same.

Difference for AM7 standard version and AM7 Plus:
- AM7 standard version CO2 sensor comes from China,accuracy: +-75ppm;speed:180s,suitable for home long-term monitor use.
- AM7 Plus CO2 sensor comes from Sweden,accuracy: +-75ppm;speed:15s.

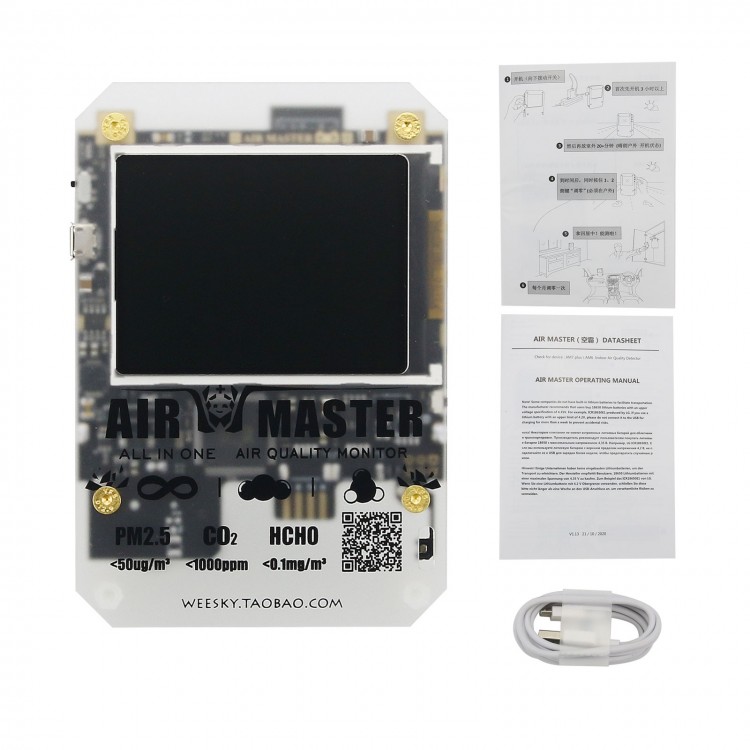

Package List:
- 1 x AirMaster 2 AM7 Plus Master
