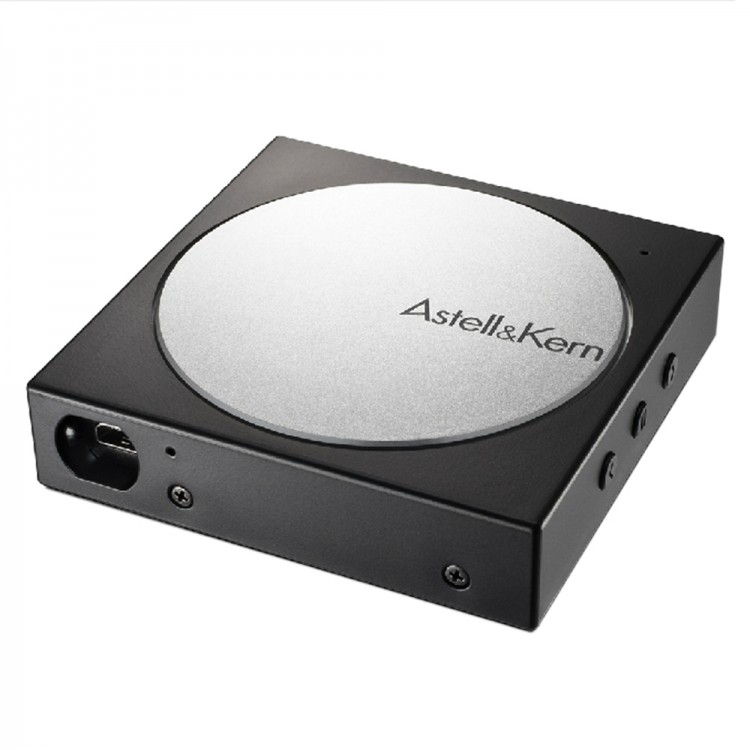

AK10 MQS Portable Headphone Amplifier Lossless HIFI Decoder Amp for Smart Phones
Specifications:
- Size: 54*54*13.15mm
- Weight: 51g
- Level output: 1.7V (no load)
- Chip: Wolfson WM8740 24bit chip
- Input USB: V1.0/2.0 USB interface
- iOS: Lightning interface
- Level output: Micro USB (support OTG)
- Output interface: 3.5mm stereo port
- Frequency response: 10Hz-20KHz -/+0.02db (24bit 48KHz, no load)
- SNR: 110db (1KHz 0db, 24bit 48KHz, no load)
- Crosstalk interference: 106db (1KHz 0db, 24bit 48KHz, no load)
- Output impedance: 1.1Ohm
- Total harmonic distortion+noise :0.008%(1KHz 0db, 24bit 48KHz, no load)
- Battery capacity: 1100mA 3.7V Li-polymer
- Endurance: About 11h
- Charging: About 3.5h
- Support iOS system: iPhone5/iPod touch 5 (support up to 24bit 48KHz )
- Support OTG system: OTG function(support up to Jelly Bean 4.1.2 )
- Android: Samsung Galaxy S3, Note2 (support up to 16bit 44.1KHz )/Galaxy Note3 (support up to 24bit 96KHz )
- Windows system: Windows XP/Vista/7/8; 32/64bit, support up to 24bit 96KHz
- Mac OS: Mac OS v10.6.5 or new version (support up to 24bit 96KHz )
Package included:
- 1 x Amplifier
- 1 x Micro USB cable
- 1 x Lightning cable
