AK1616_PRO 16-Band Music Spectrum Rhythm Light Kit with Adjustable Light Speed for Audio Equipment

AK1616_PRO 16-Band Music Spectrum Rhythm Light Kit with Adjustable Light Speed for Audio Equipment

Improvements:
1. The audio circuit of the motherboard has been optimized. Now it has better audio signal adaptation performance and lower device noise.
2. Its software can eliminate background noise of the device to adapt to more user devices and avoid jumping at the bottom when there is no signal.
3. Standby function can be turned on or off (standby state is off by default).

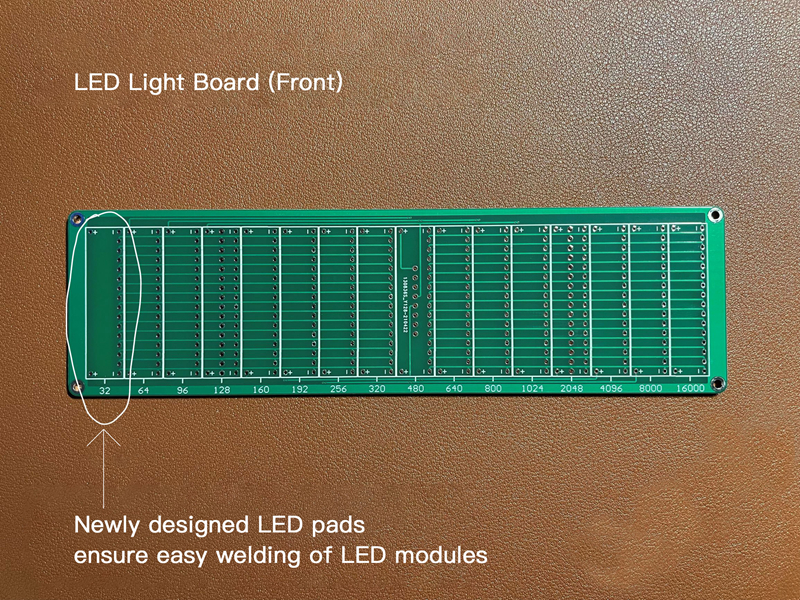

4. The pads of the light board is optimized for the LED module. Now the board surface is cleaner, which eliminates the possibility of reverse welding and wrong welding of LED modules.
5. Original 3.5mm splitter cable is replaced with a 3.5mm audio adapter cable which has better quality and better applicability.

Features:

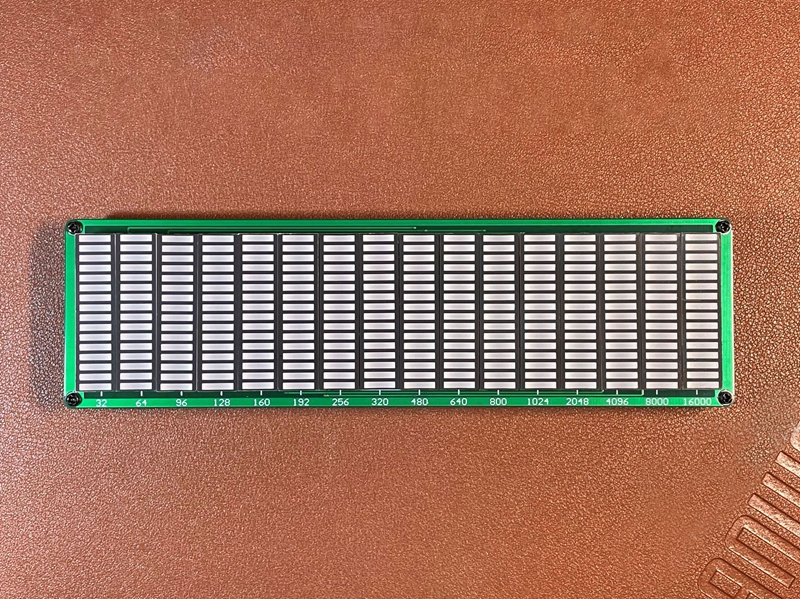

- Exclusive custom widening lights strip (There are no similar lights in the market).
- Resolution 16x16.
- It supports 32HZ-16KHZ sweep frequency to ensure the accuracy of each band.
- The falling speed of the light bar, the holding time and the falling speed of the peak can be adjusted separately.
- Real output and smooth output selection.
- 15 levels of brightness of spectrum display can be adjusted.
- Software AGC and custom output curve ensure that the input signal in a large range of output effect is ideal.
- Custom frequency band display ensures that even the 16 bands can fully display the audio frequency range.
- (REV3.0) Audio signal input circuit has been optimized, and it can also be displayed when the received signal is small. It can eliminate the influence of noise on the product function, which can display the music signal more realistically.

Attention:
- The color of LED lights is emerald green. There is a color deviation due to taking photos. Thank you for your understanding!

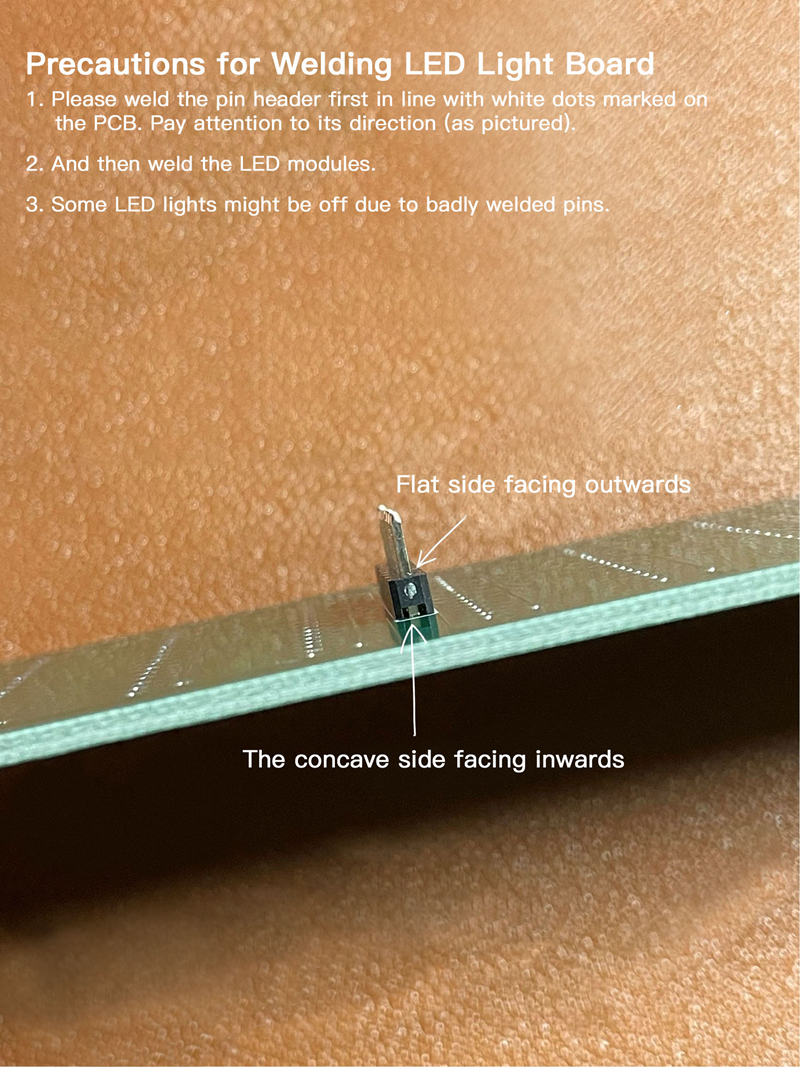

- Assembling is needed.

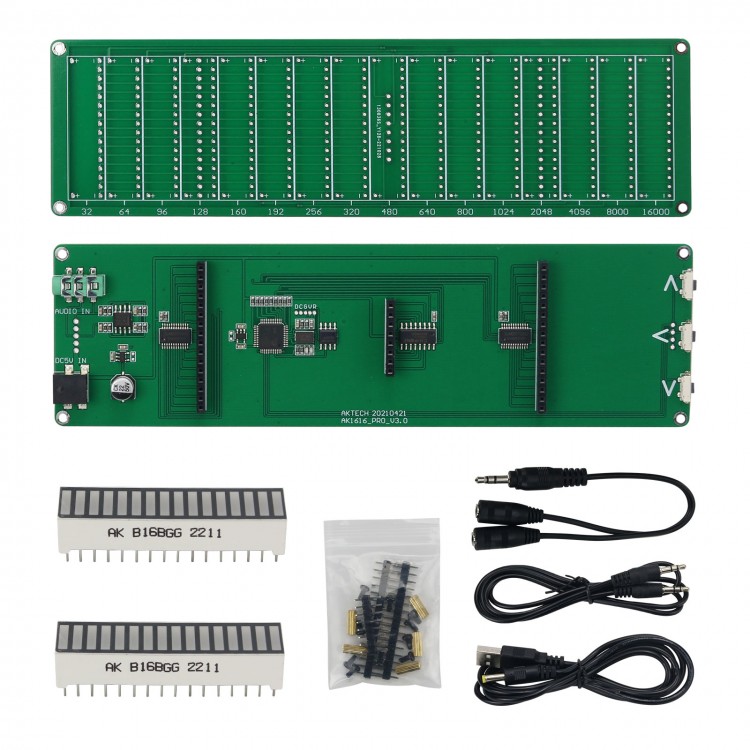

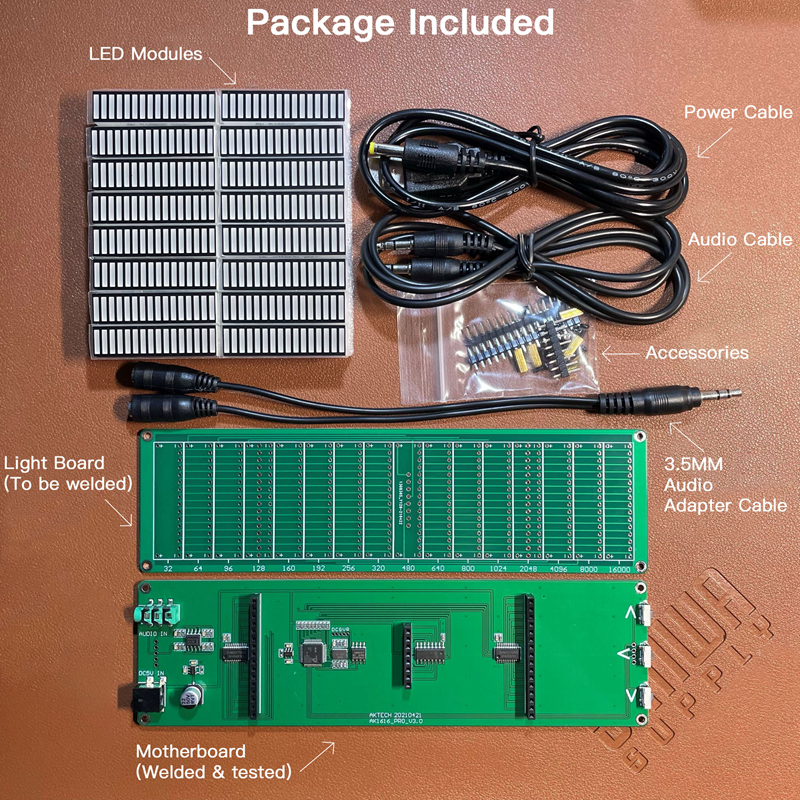

Package Included:
- 1 x Set of LED modules
- 1 x Power cable
- 1 x Audio cable
- 1 x Bag of accessories
- 1 x 3.5mm audio adapter cable
- 1 x Light board (needs welding)
- 1 x Motherboard (welded & tested)

Packaging Details:
- G.W.: 0.30kg
