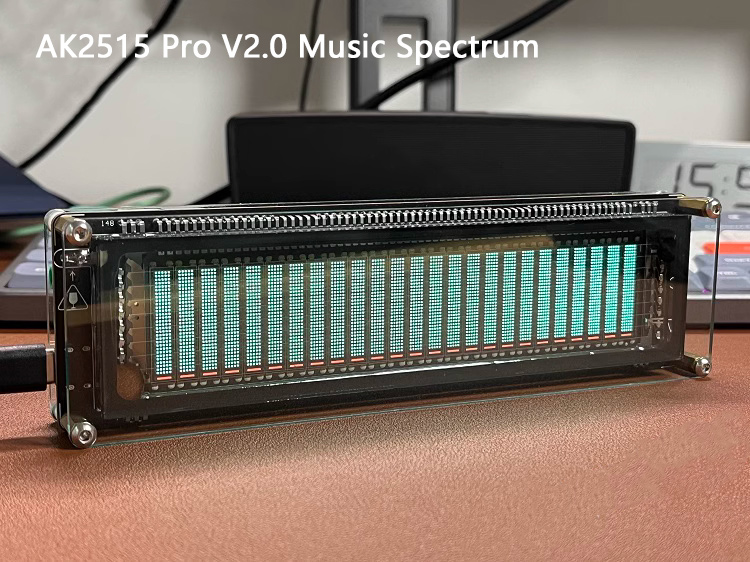

AK2515 Pro V2.0 25-Band Music Spectrum Display Desktop Clock Supports Voice Control & Wired Input
Description:
AK2515 Pro V2.0 is a newly upgraded spectrum display. It is added with more functions and key operation logic is optimized to make it easier to use.
Features:

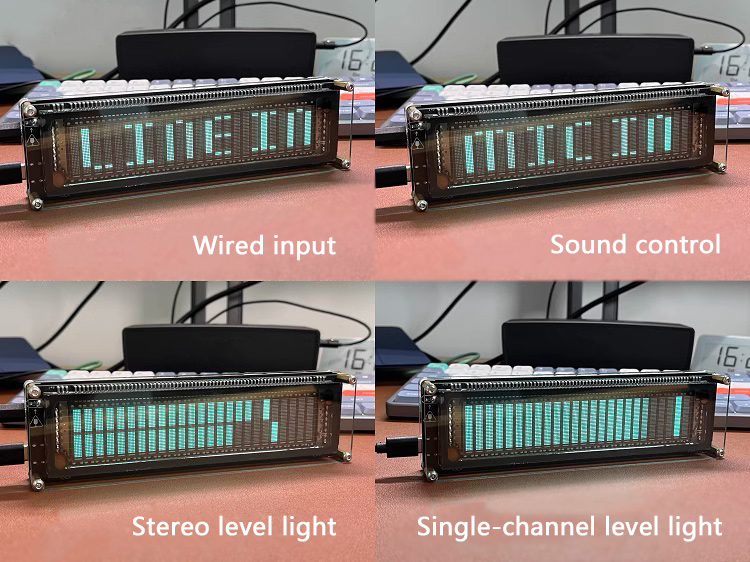

- It supports voice control, wired input low level signal, level light mode, music spectrum and clock modes

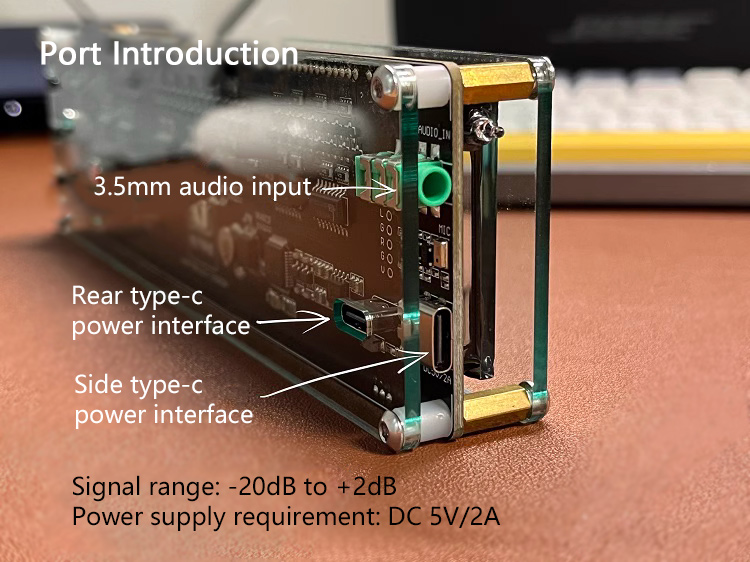

- Its power supply port is changed to type-c. And a type-c port is designed on the left and rear sides of the product to adapt to more placement and use scenarios
- Level light mode: It supports stereo level light display when signals are input via an audio cable.
- Different crossover modes help it adapt to more different music and usage scenarios
- With redesigned circuit board layout

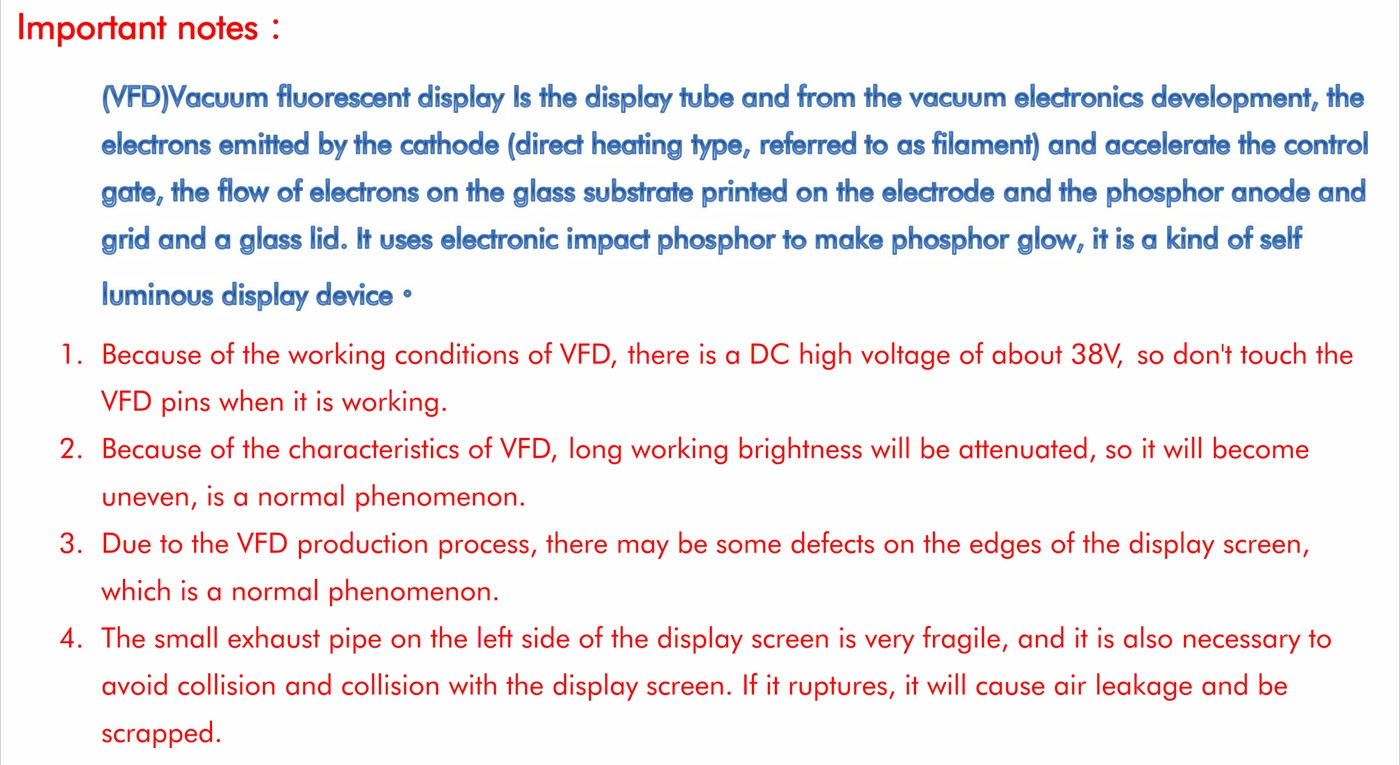

- Dedicated VFD spectrum display with a resolution of 25x15
- Support 32HZ-16KHZ frequency sweep and ensure the accuracy of each band

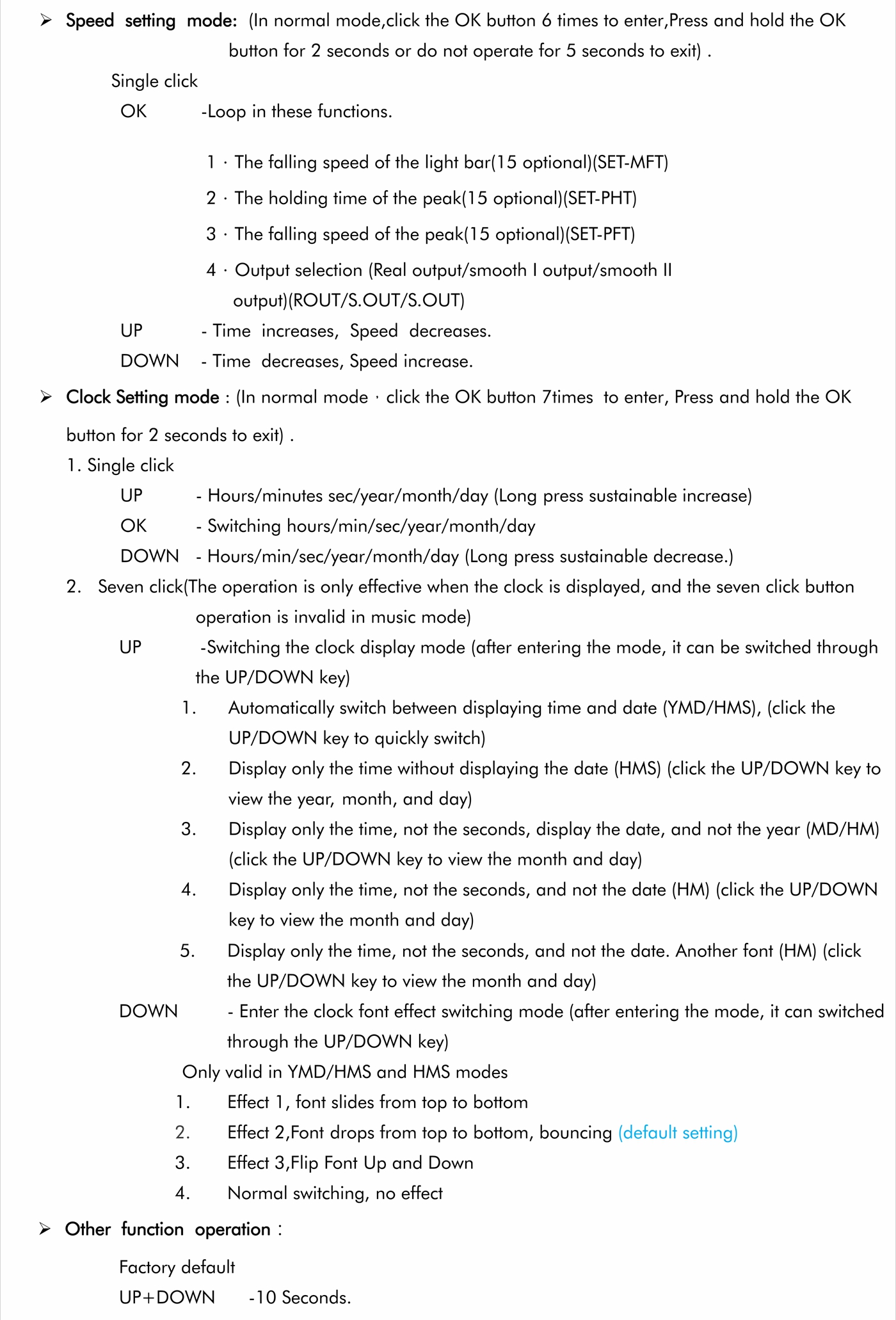

- The falling speed of the light bar, the holding time and the falling speed of the peak can be adjusted separately
- Real output and smooth output I/smooth output II selection
- 7-level brightness can be adjusted
- Accurate clock display function (With SD3078 built-in crystal oscillator, the chip can ensure that the clock accuracy is lower than ±3.8ppm (at 25+ 1℃ and the annual error is less than 2.0 minutes)
- Software AGC + custom output curve, in order to ensure that the input signal in a large range of output effect is ideal

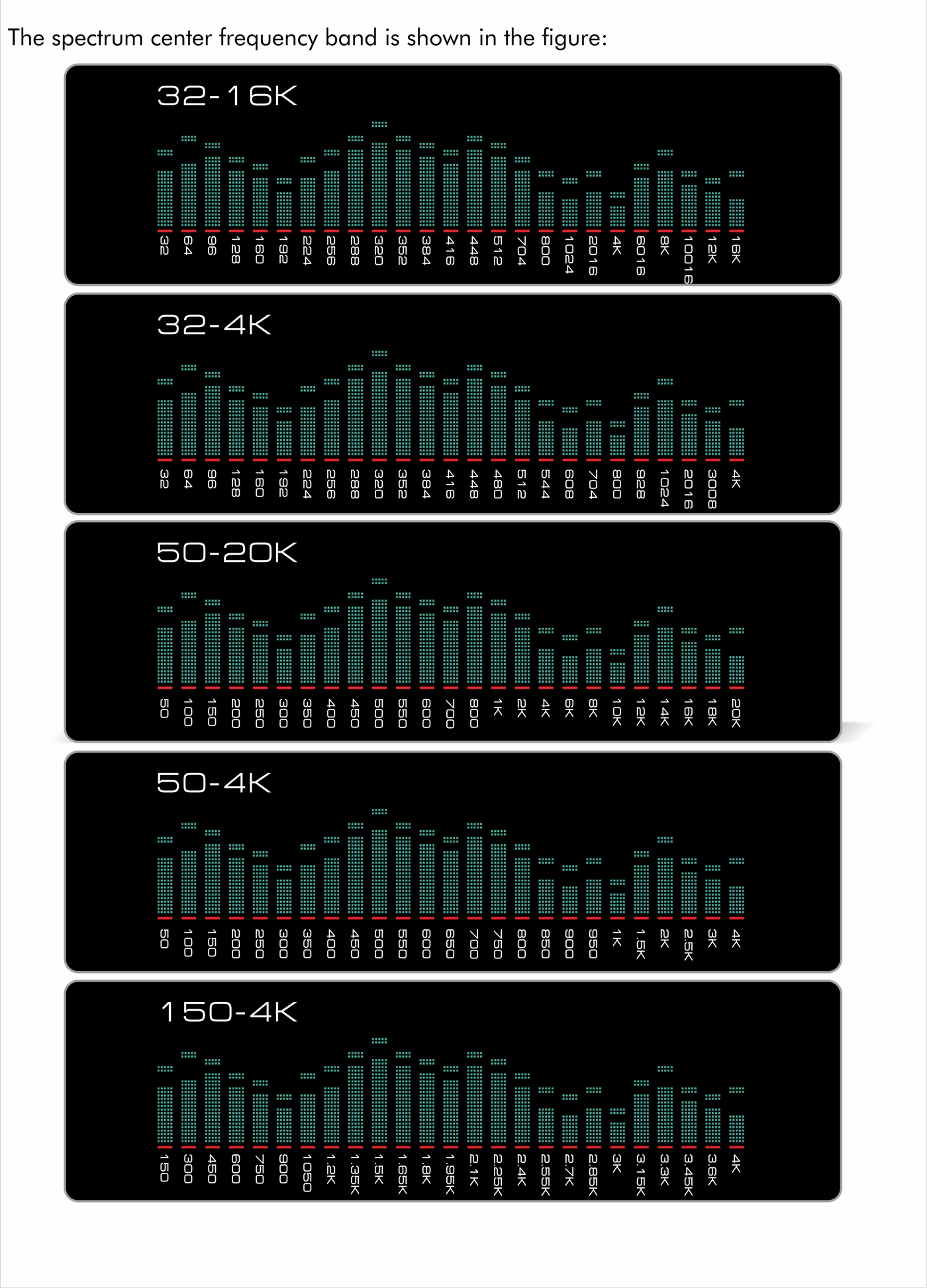

- Custom frequency band display to ensure that even the 25 segments can fully display the audio frequency range
- Ambient noise filter is available. The function can significantly reduce the impact of ambient noise on the use of sound-controlled products
- Support 3.5" audio wired input and sound-controlled (REV2.00)
Specifications:

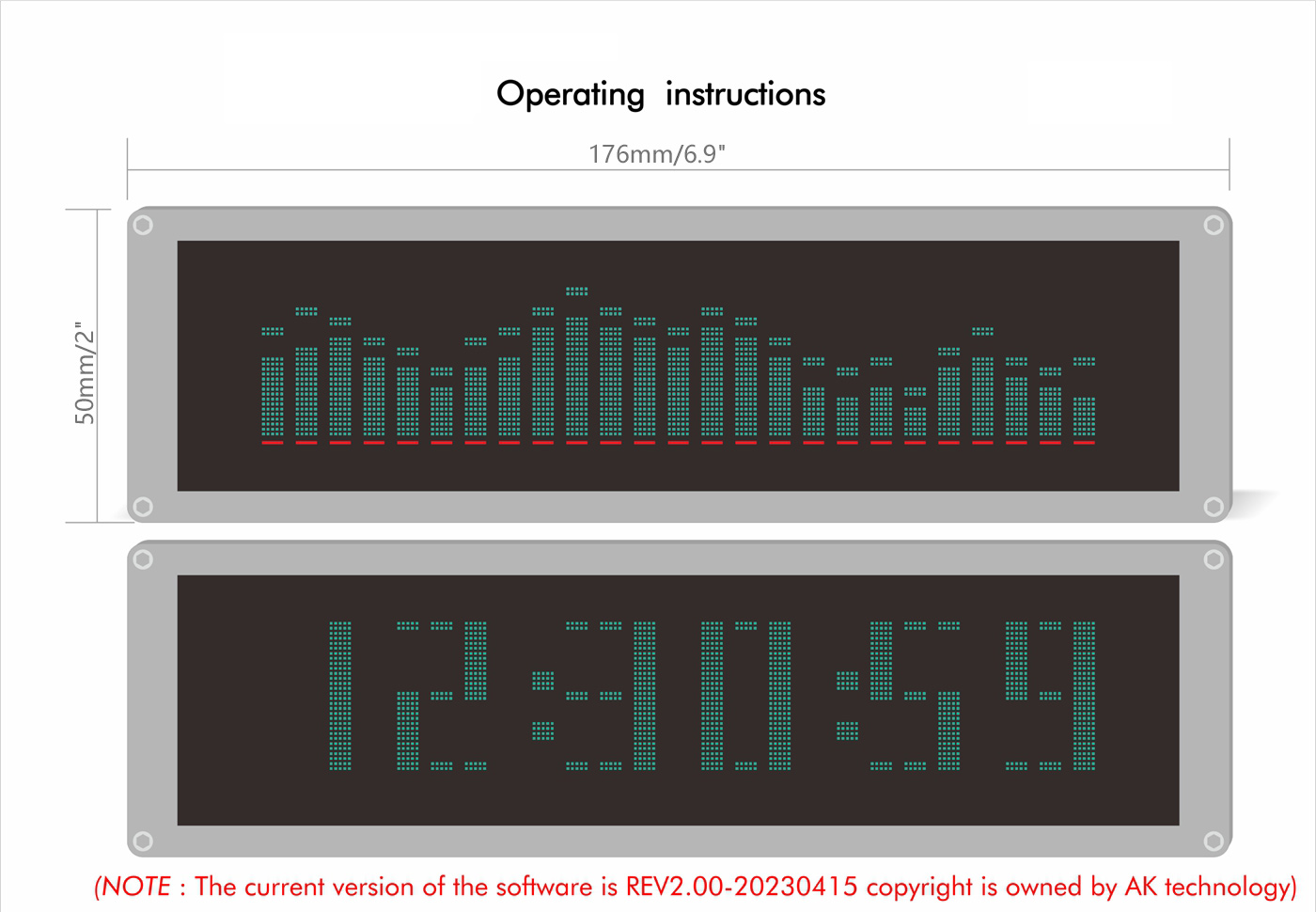

- Product size: 176 x 50 x 23mm/6.9 x 2 x 0.9" (excluding protrusions)
- Display size: About 134 x 26mm/5.3 x 1"
- M3 screw hole spacing: 170 x 44mm/6.7 x 1.7"

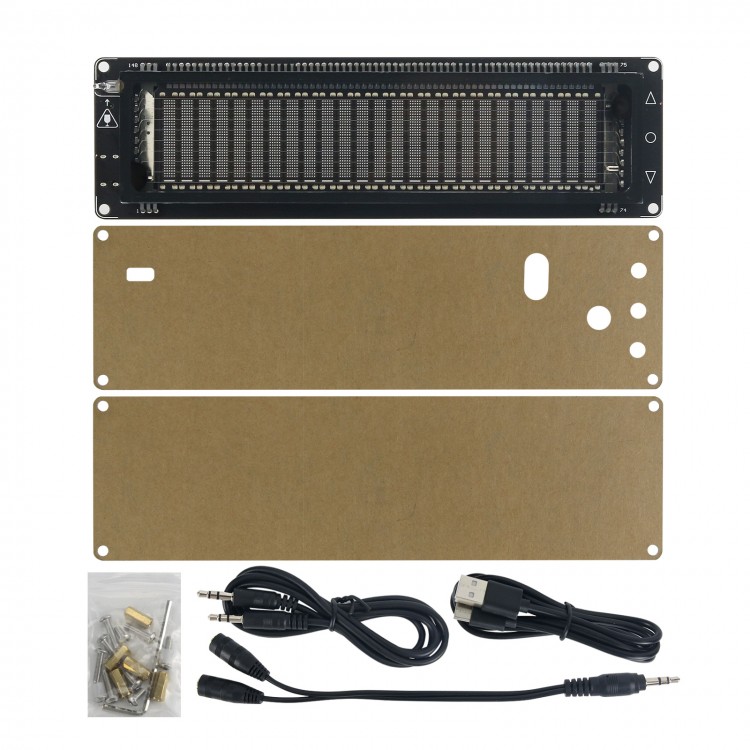

Package Included:
- 1 x Motherboard
- 1 x Front panel
- 1 x Rear panel
- 1 x Power cable
- 1 x Audio cable
- 1 x 3.5mm splitter cable
- 1 x Bag of accessories
Packaging Details:
- G.W.: 0.35kg
