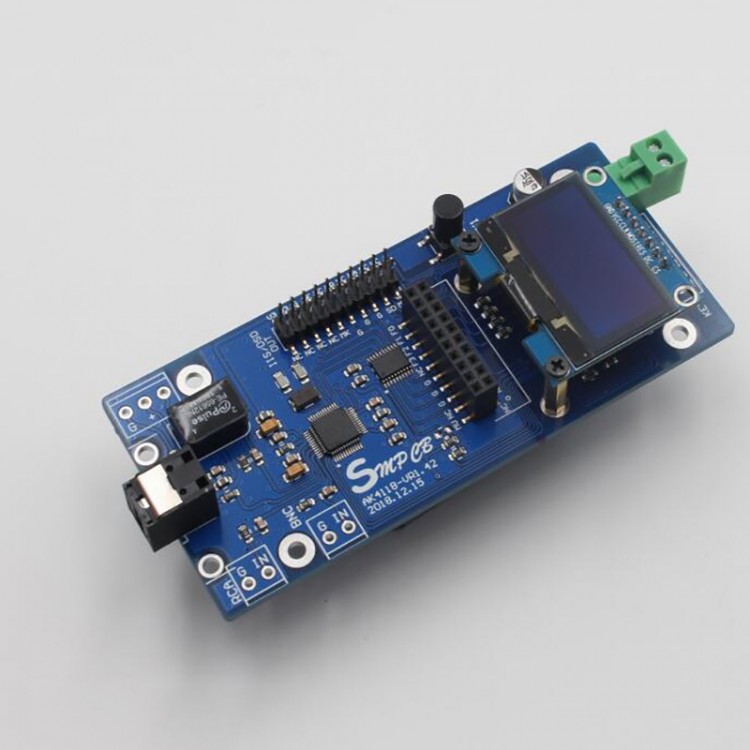

Description:
This product uses the latest audio dedicated mediation chip AK4118, supporting 24bit 192K data reception. As a coaxial signal receiver, the AK4118 has the lowest Jitter in the industry. It is fully optimized by the MCU software control, and its performance is much higher than that of the WM8805 DIR9001 CS8416. It inputs fiber coaxial SPDIF signal, with one-channel IIS/DSD input (applicable to our XMOS module / Italian USB), output in IIS/DSD format.

Features:
- Supports five groups of input signals
- Supports for our XMOS module/Italian USB, enabling display of sampling frequency
- The double-row 20-pin output interface is compatible with an Italian USB output interface
- Using 1.3-inch OLED to display working status
- All settings are automatically saved

Package Included:
- 1 x AK4118 DAC Board

OLED Display & Functions:

1.Input channel: Coax Bnc,coax, RCA, USB, OPTICAL, Aes/ebu
2.Input signal format: PCM, DSD (Real-time display based on input signal)
3. Sampling frequency of the input signal(Real-time display based on input signal)


4.MCLK Signal Output Mode (Configurable):

NOTE: This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK

5.Output Signal Output Mode (Configurable):

NOTE: This feature is limited COAX BNC, COAX RCA, OPTICAL, AES / EBU input, USB input invalid when the USB input, the board follows the USB module output signal MCLK

6.Timing Diagram for Different Output Signal Formats:

Input Parameters:
- COAX BNC, COAX RCA, OPTICAL, AES/EBU: 44.1K-192K 24BIT
- USB (IIS/DSD/Using XMOS module): 44.1K-384K 32BIT / DSD64, DSD128, DSD256
- Output parameters (using XMOS module): 44.1K-384K 32BIT/DSD64, DSD128, DSD256
- Supply Voltage: DC 5V
- Board Size: 111mm*49.5mm
