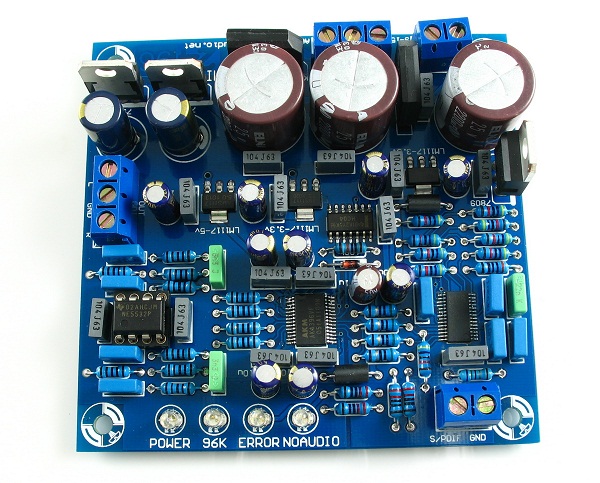

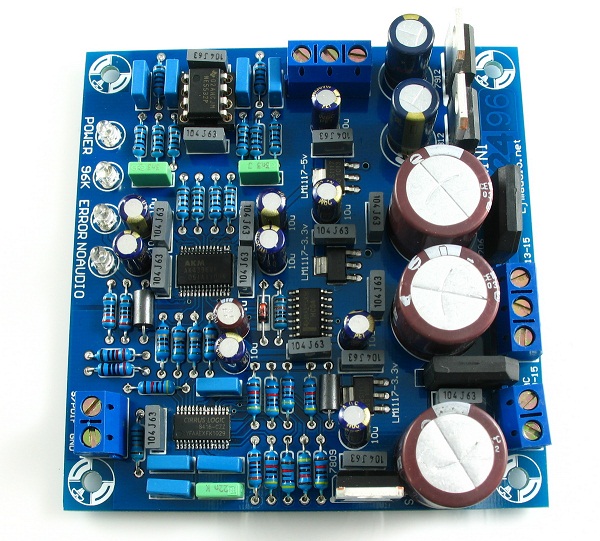

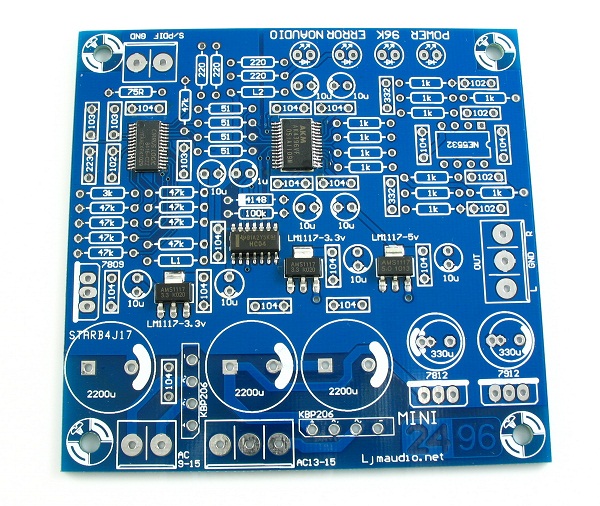

AK4396 Decoder Spare Parts DAC Board Assembled Chip Stereo DAC
Product Description:
- The AK4396 is a high performance stereo DAC for the 192kHz sampling mode of DVD-Audio including a
- 24bit digital filter. Using AKM's multi bit architecture for its modulator the AK4396 delivers a wide dynamic range while preserving linearity for improved THD+N performance.
- The AK4396 has full differential SCF outputs, removing the need for AC coupling capacitors and increasing performance for systems with excessive clock jitter.
- The AK4396 accepts 192kHz PCM data and 1-bit DSD data, ideal for a wide range of applications including DVD-Audio and SACD. The AK4396 has a fully functional compatibility with the AK4393/4/5 and lower power dissipation.
Specifications:
- 128x Oversampling
- Sampling Rate: 30kHz --216kHz;24Bit 8x Digital Filter (Slow-roll-off option)
- Ripple: ±0.005dB, Attenuation: 75dB
- High Tolerance to Clock Jitter
- Low Distortion Differential Output
- DSD data input available
- Digital de-emphasis for 32, 44.1, 48kHz sampling
- Soft Mute
- Digital Attenuator (Linear 256 steps)
- THD+N: −100dB
- DR, S/N: 120dB
- I/F format : MSB justified, 16/20/24bit LSB justified, I2S
- Master Clock: Normal Speed: 256fs, 384fs, 512fs, 768fs or 1152fs
- Power supply: double 13-15V+, single 9-15V, or double 13-15V only
- DAC supports 24 BIT 192K HZ
- Chip project: CS8416+AK4396+NE5532P
- Size: 80mm*80mm
Packing included:
- 1 x AK4396 Decoder
