AKP-202 8.9 x 6.9" XY Axis Cross Slide Table Milling Table Drill Press Table for Milling & Drilling

Availability: In stock, usually dispatched in 1 business day

  • Price:$441.46
  • Price in reward points: 4415 Reward Points: 44
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $432.63 $423.80 $410.56 $392.90 Contact US
Quantity:

AKP-202 8.9 x 6.9" XY Axis Cross Slide Table Milling Table Drill Press Table for Milling & Drilling

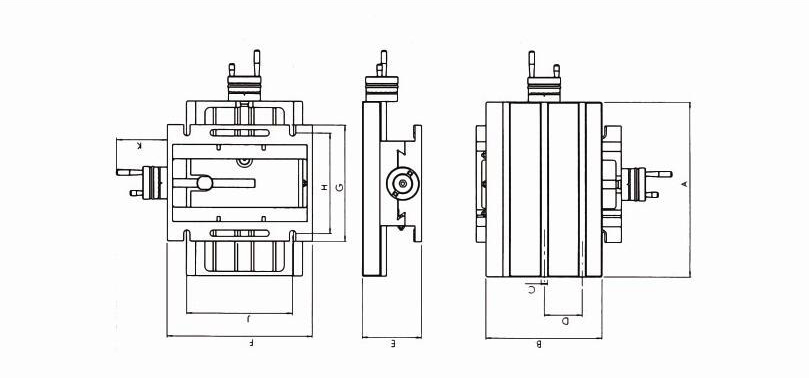

Product Parameters (as pictured):

- A: 225mm/8.9"
- B: 175mm/6.9"
- C: 12mm/0.5"
- D: 72mm/2.8"
- E: 108mm/4.3"
- F: 225mm/8.9"
- G: 175mm/6.9"
- H: 148mm/5.8"
- J: 160mm/6.3"
- K: 96mm/3.8"
- X travel: 105mm/4.1"
- Y travel: 90mm/3.5"
- Table size: 225 x 175mm/8.9 x 6.9"
- Height: 108mm/4.3"
- Indexing accuracy: 0.01mm/0.0004"
- Net weight: 16KG/35.3LB

Package Included:
- 1 x Cross Slide Table
