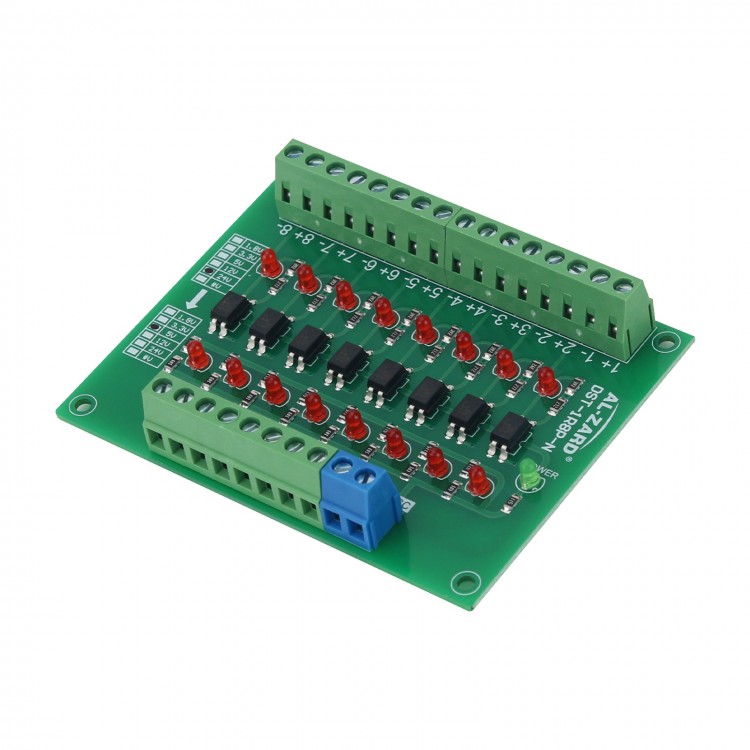

AL-ZARD 24V to 5V 8-Channel Optocoupler Isolation Module Voltage Converter Board NPN/PNP to NPN
Features:
- DST series signal level converter board
- 8-channel board without shell
- It is exported overseas due to excellent quality
- Original Taiwan-made Everlight optocouplers are used. The limiting operating frequency is 20KHz. The breakdown voltage is over 2000V
- The module is designed with working indicator lights
- Board size: 95 x 72 x 20mm/3.7 x 2.8 x 0.8" (LxWxH). Screw hole diameter: 3mm/0.1". Hole spacing: 87 x 64mm/3.4 x 2.5"
- Widely used: It can be used for signal isolation, PLC signal level conversion, NPN/PNP signal to NPN signal conversion, polarity inter-conversion, signal voltage level conversion, etc.
Package Included:
- 1 x Optocoupler Isolation Module
Attention:
- The output voltage and the module voltage are the same.
- Output current of each channel does not exceed 50mA.
- Because the output current of the module is small, and the output cannot drive solenoid valves, relays, motors, etc.
