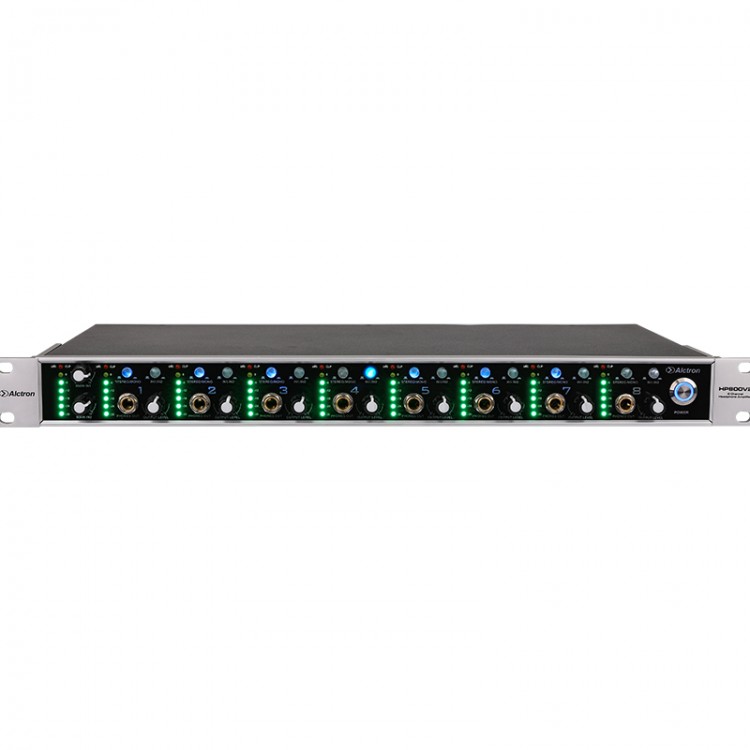

Alctron HP800V2 8 Channel Headphone Amplifier Headphone Amp with LED Indicator Lights for Monitoring
Description:
HP800V2 is a headphone amplifier which features 8 independent stereo headphone channels. Each channel has its own volume control knob which can adjust the volume when it is too high or too low. The 7-level indicator indicates the output level. If the red light is lit, you should lower the volume to avoid distortion. Also, its mono/stereo and channel buttons help you to monitor an ideal music sound you want.
Features:
- 1U rack shell helps headphone amplifier fixed on rack easily
- Mono/stereo switch per channel for more flexibility
- Output level control and accurate 7-digit LED output meter per channel avoids sound distortion
- Direct input connector on each channel for easy connection of any sound source
- Independent amplifier circuit rejects interference and mix of each channel and makes each channel input purity signal
- Adopts performance chip to amplify the signal and ensures low distortion and low noise
- Rich ports make it widely used
Specifications:
- Input interface: 1/4" TRS balanced
- Input impedance: 40KΩ (balanced)/ 20KΩ (unbalanced)
- Max output level: 16dBu
- CMRR: >55dB at 1KHz
- Auxiliary input: 1/4" TRS stereo
- Input impedance: 15KΩ
- Main output: 1/4" TRS balanced
- Headphone output: 1/4" TRS stereo
- Max. output power: +24dBm (load impedance 100Ω); +21dBm (load impedance 80Ω)
- Minimum load impedance: 8Ω
- Frequency response: 10Hz-80KHz±2dB
- Noise: 22Hz-22KHz >90dB at 0dB
- Dynamic range: 22Hz-22KHz and ＞110dB
- Distortion: 0.006% typical at +4dBu 1KHz
- Main input 1/main input 2: you can choose main input 1 or main input 2
- Stereo/mono: press the button to make it work in mono channel
- Dual channel: switch between stereo and dual-channel modes
- Input level: 7-segment LED display (-30/-24/-18/-12/-6/0dB/over-load)
- Output level: 7-segment LED display (-30/-24/-18/-12/-6/0dB/over-load)
- Optional voltage: 100-120VAC, 200-240VAC, 50-60HZ
- Connection cable: standard IEC
- Weight: 3766g/8.3lb
- Size: 482 x 44 x 205mm/19 x 1.7 x 8.1"
Package Included:
- 1 x Headphone Amplifier
- 1 x Power Cable
- 1 x User Manual
- 1 x Warranty Card
- 1 x Product Quality Certificate
