ALIENTEK DL16 Plus 1GHz Mini Logic Analyzer ARM FPGA STM32 Debugger Protocol Decoding Support PWM Output
Description:
- Logic Analyzer is an instrument for testing and analyzing digital circuit signals. It is mainly used to capture, display and analyze timing and waveform data of digital signals to help engineers diagnose faults, verify circuit designs and optimize system performance.
Features:
- Support Stream mode, sampling time can be longer.
- Support RLE hardware data compression, higher efficiency.
- Support more than 120 protocols, and continue to update.
- Open protocol decoding library, can customize the protocol.
- Can output 2 PWM channels at the same time, 1Hz ~ 20MHz adjustable.
- Support a variety of trigger modes and acquisition modes.
- Simple and easy to operate visual software operation.
- Support mouse/label/parameter measurement, data search and other functions.
- Support for Windows/Ubuntu/Mac three platforms.
- All metal CNC shell, shielding heat feel first-class.

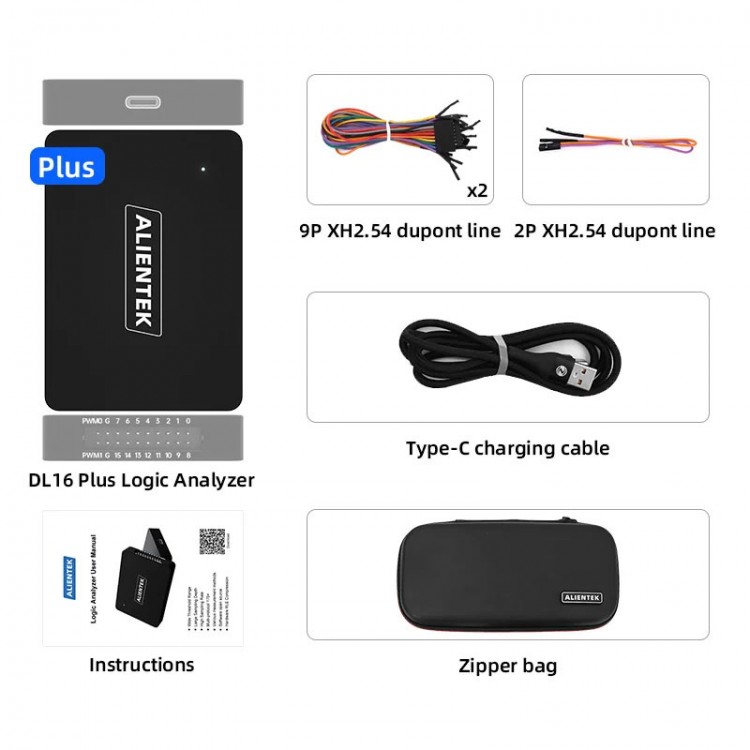

Package Included:
- 1 x Host
- 2 x 9P XH2.54 Dupont Line
- 1 x 2P XH2.54 Dupont Line
- 1 x Type-C Charging Cable
- 1 x Zipper Bag
- 1 x Instruction
