ALIENTEK STM32F429 Core Board STM32F429IGT6 32M SDRAM 512M NAND 32M SPI FLASH with B2B Interface

ALIENTEK STM32F429 Core Board STM32F429IGT6 32M SDRAM 512M NAND 32M SPI FLASH with B2B Interface

Description:
STM32F429 is a processor based on the ARM Cortex M4 core. Compared to the STM32F407, it adds an SDRAM controller, a TFT LCD controller and Chrome-ART Accelerator for ST for faster image processing performance, and increases the clock frequency to 180MHz, which greatly improves the performance of the graphical interface.

Features:
* STM32F429IGT6 Core Board: F429IGT6/NAND FLASH 512MB/SDRAM 32MB
* It is recommended for beginners to purchase our Apollo STM32F4/F7 base-plate. The core board can also be used separately, with USB power port, LED light, RGB LCD interface, NAND, SDRAM and buttons and other resources.
* The core board adopts B2B (board-to-board) connector, which has the following advantages compared with ones using pin header: easy disassembly and assembly, good stability, and no bending pin problems.
* The core board adopts a 4-layer board, separate ground layer & power plane, and key signals are traced with equal length to ensure reliable operation.
* Using board-to-board connectors (3710 terminals); the plug-in is simple and reliable, and leads to 110 commonly used IOs to facilitate secondary development.
* The Apollo STM32F429 library function version routines are developed using the HAL library.
* The core board supports all displays produced by ALIENTEK.
* Compact size: 65 x 45mm/2.6 x 1.8", easy to embed into a variety of products.

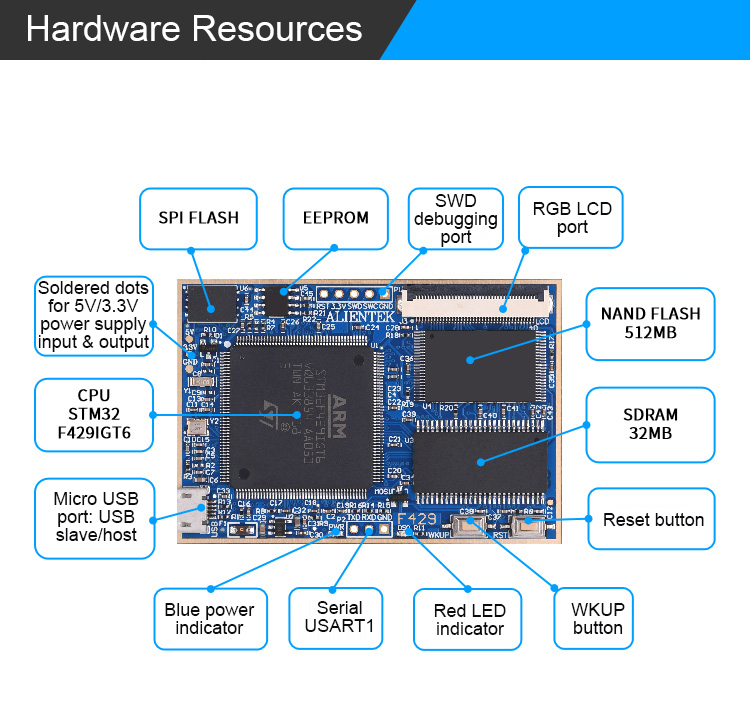

Board:
* Size: 65 x 45mm/2.6 x 1.8"
* Class A PCB adopts gold immersion process
* B2B board-to-board interface, stable and reliable, commonly used in industry

Main Chip Resources:
* The STM32F429GT6 is configured with LQFP176 in large capacity
* Frequency: 180M
* Kernel: M4
* Chip FLASH: 1024K
* Chip SRAM: 256K
* Pins: 176pcs
* IO port: 140pcs
* Serial ports: 8pcs
* SPI: 6pcs
* 12-bit ADC: 3pcs, 24 channels
* 12-bit DACs: 2pcs
* 16-bit timer: 12pcs
* 32-bit timer: 2pcs
* DMA controllers: 2pcs
* CAN: 2pcs
* Ethernet: 1 piece
* DCMI camera interface: 1
* SDIO/SDMMC: 1 pc
* Full-speed USB OTG/High-Speed US BOTG: 1 each
* I2S: 2pcs
* FMC: 1
* SAI: 1 piece

Scale-out Storage Class:
* Spread out 32M bytes of SDRAM
* Extension 24C02
* Scaled NAND FLASH: 512M bytes
* Extended SPI FLASH: 32M bytes

Others:
* 2 board-to-board interfaces (at the bottom) lead out 110 IOs for easy access to the backplane
* 1 Micro USB port for USB SLAVE/HOST (OTG) use
* 1 RGB LCD interface, supporting LCD screen with RGB interface (RGB565 format)
* 1 power indicator/1 status LED
* 1 TTL serial port (UART1)
* 1 reset button, 1 function button
* 1 SWD debugging interface

Package Included:
* 1 x Core Board
