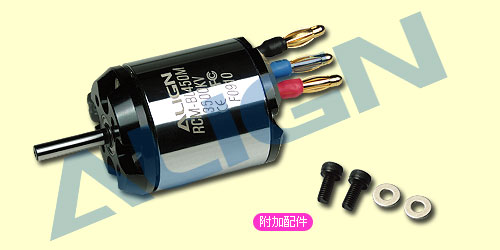

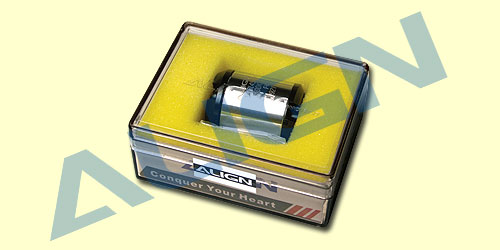

ALIGN 450M Brushless Motor(3500KV) RCM-BL450M KX850177
 |
||||||||||||
 |
||||||||||||
|
Features: - The 450M motor features shelterless design to create the advantages of heat release and low temperature variant. The extended diameter for the rotor make it even more efficiency and high torque output. - The 450M motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have. - Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet. - Japanese made high-speed ball bearings, powerful magnetic outrunner rotor. |
||||||||||||
|
Specification: |
||||||||||||
|
||||||||||||
|
Accessories: - Socket button head screw(M2.5X6mm)X2 - Washer(Φ2.6XΦ5.8X0.6mm)X2 plus - ALIGN standard 3mm gilt terminal x 3set(MAX 50A) |
 |
||||||||||||
 |
||||||||||||

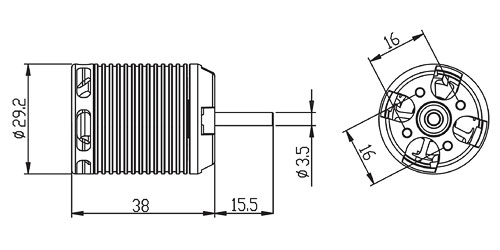

| Specification Drawing: | ||||||||||||
 |
||||||||||||

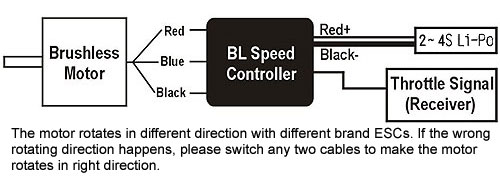

| Wiring Schematic Drawing: | ||||||||||||
 |
||||||||||||
 |
||||||||||||

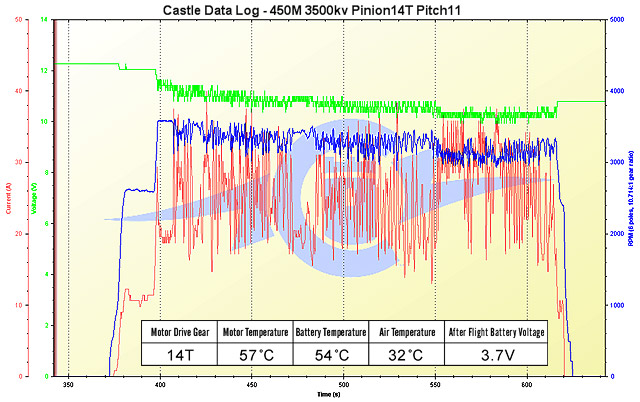

| Test Data Graph:450M 3D Flight Record, 14T pinion | ||||||||||||
 |
||||||||||||
| Test Data Graph:450MX 3D Flight Record, 14T pinion, it has lower current draw, lower temperature, and higher torque | ||||||||||||
 |
||||||||||||

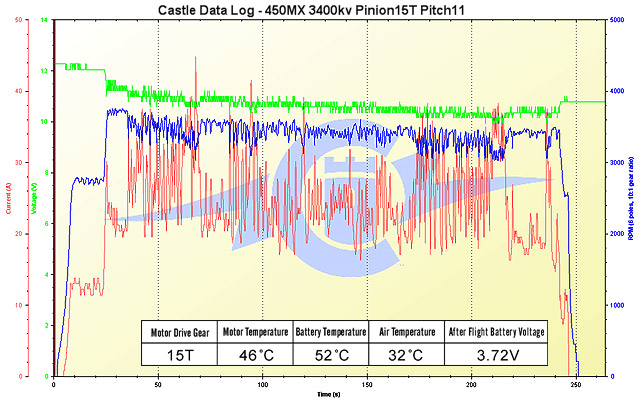

| Test Data Graph:450MX 3D Flight Record, 15T pinion,Compared to 450M it has lower temperature | ||||||||||||
 |
||||||||||||

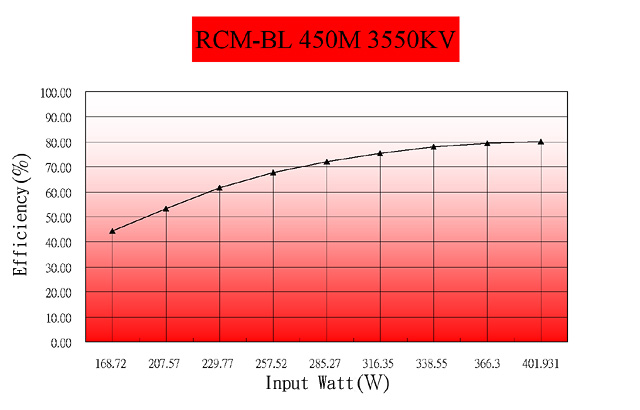

| Test Data Graph:450M | ||||||||||||
 |
||||||||||||

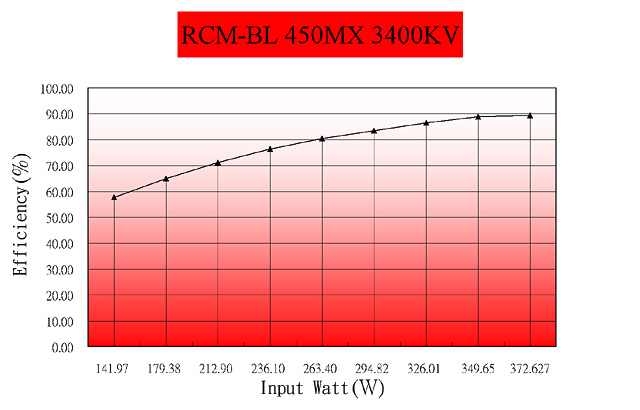

| Test Data Graph:450MX | ||||||||||||
 |
||||||||||||
|

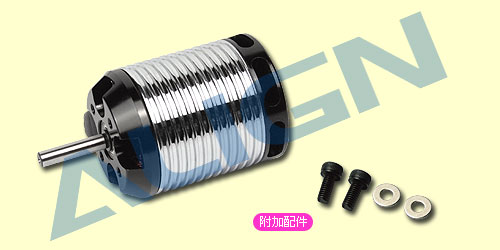

Features: - The 450MX motor incorporates radial fan in its end bell, creating powerful airflow to dissipate heat. Tweaks to motor design and reduction in weight not only contributes to dramatic power increase, the high efficiency cooling system enables cooler operating temperature during and after flights when compared to motor of previous generation. - The 450MX motor armature had a special balance adjust to improve the serious shaking problem that other tiny motors have. - Maintenance free, high torque, high efficiency, low temperature variant, stable and quiet. - Japanese made high-speed ball bearings, powerful magnetic outrunner rotor. |
||||||||||||
| Specification: | ||||||||||||
|
||||||||||||
|
Accessories: - Socket button head screw(M2.5X6mm)X2 - Washer(Φ2.6XΦ5.8X0.6mm)X2 - ALIGN standard 3mm gilt terminal x 3set |
