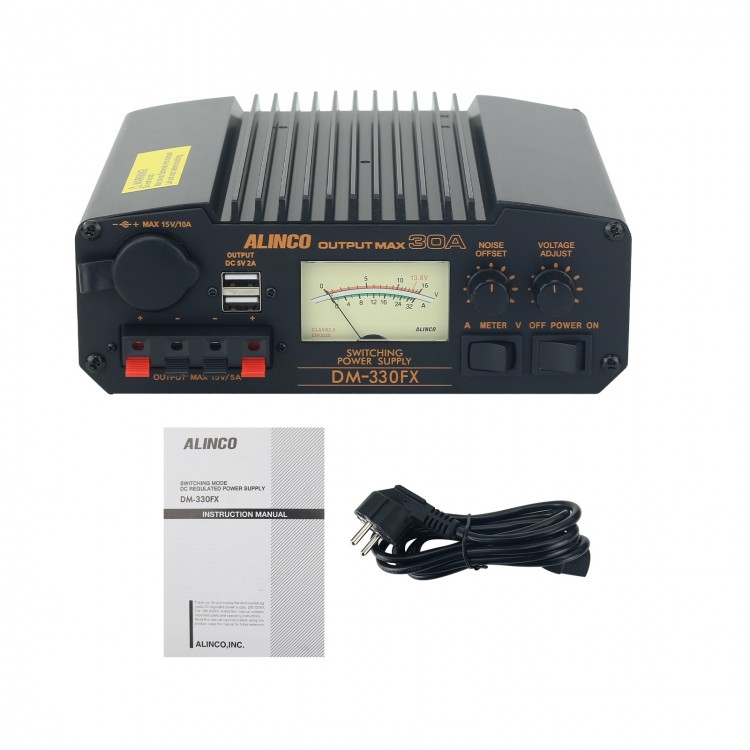

ALINCO DM-330FX 30A Stabilized DC Switching Power Supply for Vehicle Mounted Shortwave Radio Station

ALINCO DM-330FX 30A Stabilized DC Switching Power Supply for Vehicle Mounted Shortwave Radio Station

Features:
- Pointer display mode: The power supply adopts a pointer display mode, with accurate readings, fast response, and convenient use.
- Adjustable output voltage: The power supply is adjustable within the range of 9V-15V and can withstand a maximum current of up to 30A, providing reliable power supply for the operation of vehicle mounted or shortwave radio stations.
- Noise offset circuit: The power noise offset function allows you to move the switch noise that appears to another frequency.
- Multiple protection circuit: Internally equipped with short-circuit protection, current limiting system, and temperature protection to prevent damage to the internal circuit of the power supply and ensure safe operation of the power supply.
- Four output modes: The power supply has two pairs of snap on interfaces (with a maximum current of 5A), one cigarette lighter interface (with a maximum current of 10A), dual USB interfaces (with a maximum current of 2A), and a pair of terminals (with a maximum current of 30A) to meet the usage needs of different devices.
- Cooling fan: The power supply is equipped with a temperature controlled cooling fan, providing a safe and stable working state for high-power radio stations to operate continuously for a long time.

Specification:
- Model: DM-330FX
- Input voltage; 230VAC
- Output voltage: DC9-15V adjustable
- Output current: 25A constant
- Ripple voltage: > 50mVpp
- Protection current: automatic current limit for 30℃ above
- Output voltage adjustment: < 3%
- Fuse: 4A
- Product size: 190 x 69 x 181mm
- Net weight: about 2.5kg

Package Included:
- 1 x Switch Power Supply
- 1 x Power Cable
- 1 x User Manual
