S07 High Precision Fiber Cleaver Automatic Return Fiber Optic Cutter for 125um Single-core Optical Fibers
$50.69
10uW-100mW Optical Power Meter Photoelectric Type Laser Power Meter Comes with Digital Display
$184.70
FieldBest 10mW-50W Optical Power Meter Thermo-electric Laser Power Meter with 10mW Resolution
$235.95
Note: We also have 1mW,10mW,30mW output power optical meter,If you need,please contact us.
Fetures:
- High precision,low error,less than ±0.25dB
- The user can calibrate it himself
- Wavelength memory function
- 10 minutes automatic shutdown
- Supports FC SC ST connectors
- Mini size:128x52x22mm
Power Meter:
- Mode:YJ-350A
- Wavelength(nm):800~1700nm
- Detector:InGaAs
- Measurement Range(dBm):-70~+6
- Uncertainty:±5%

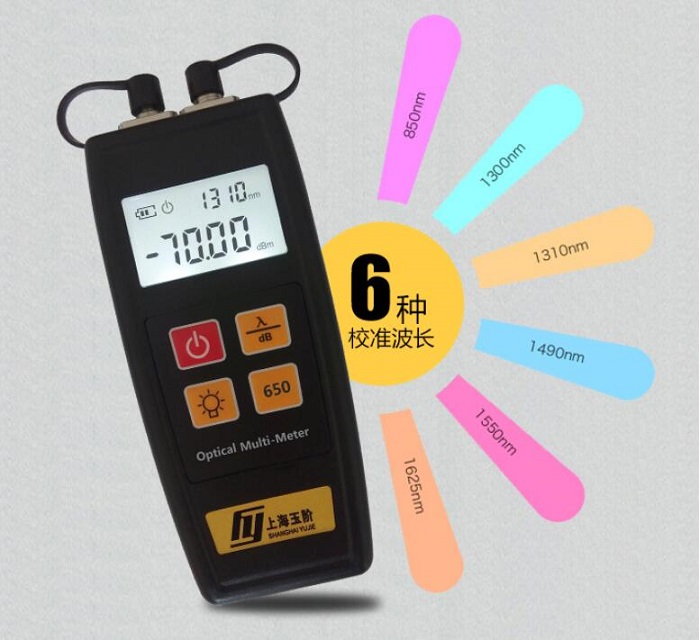

- Calibrated Wavelength(nm):850,1300,1310,1490,1550,1625nm
- Resolution(dB):0.05
- Optical Connector:FC,SC,ST

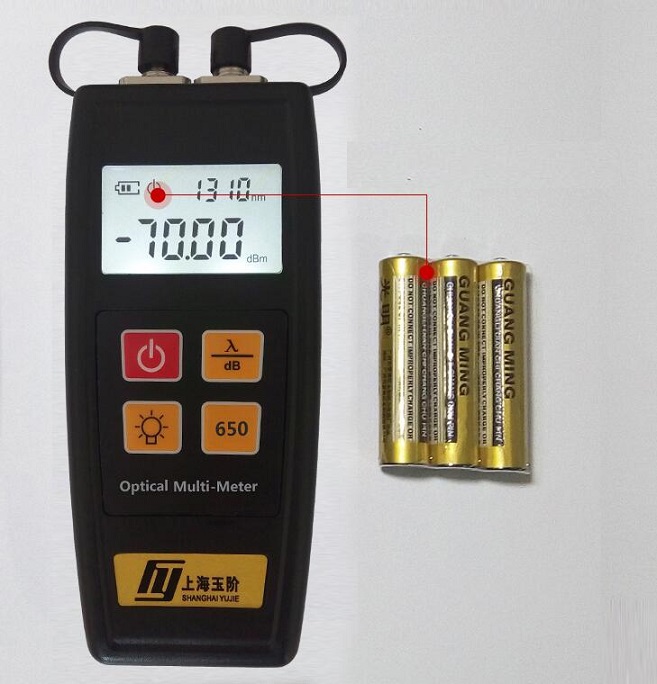

- Power Supply:Alkaline Battery(3xAA 1.5V) (not includeBatteries)
- Battery Operating Time:120 hours with three 1.5V batteries
- Auto switch off time:10 min
- Operating Temperature(°C):-10~+50
- Relative Humidity: 0 to 95% (non-condensing)

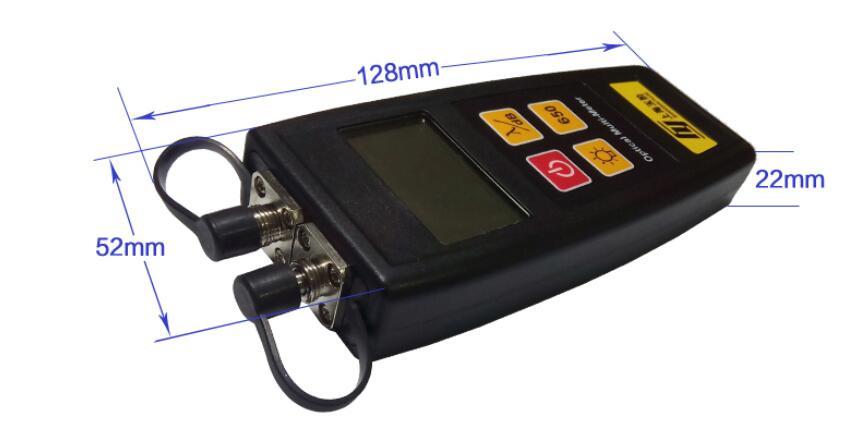

- Size:128x52x22mm(LxWxH)
- Weight:100g
VFL function:
- Wavelength 650nm±10nm
- Emitter Type: FP-LD laser
- Output power: 50mW
- Corresponding distance:25km
- Working frequency:CW/2Hz
- Working wavelength:650+-10
- Connector: 2.5mm universal adapter
- Working mode: Both CW and Pules available
- Operating temperature: -10~+45
- Storage temperature: -40~+70
Package List:

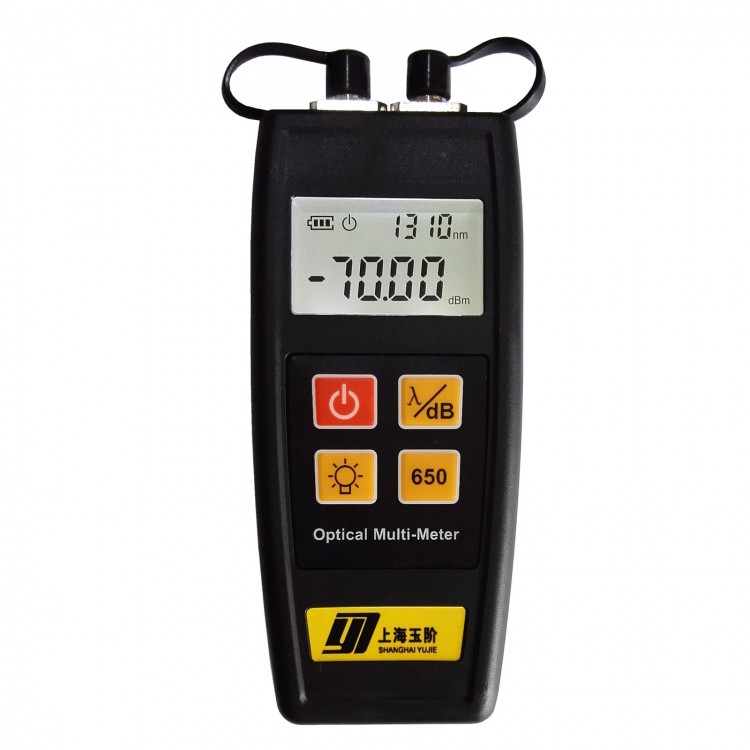

- 1 x All-in-One Fiber Optical Power Meter & 50mW Visual Fault Locator YJ-350A Mini Size
