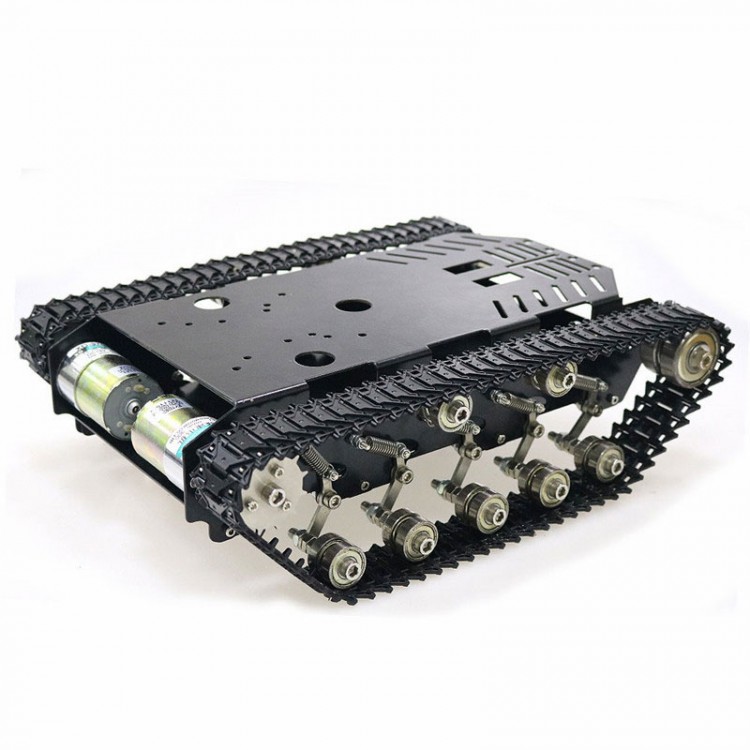

All Metal Tank Chassis Tracked Chassis DIY Smart Robot Car Chassis 5-10KG Capacity Assembled TS900

All Metal Tank Chassis Tracked Chassis DIY Smart Robot Car Chassis 5-10KG Capacity Assembled TS900

Features:
- High-power DC motor, embedded in ATMEGA328 as a motor drive control unit.
- ATMEGA328 single chip programming interface (USB and ICSP two ways) is reserved on the board to facilitate program programming;
- Some analog / digital signal ports for users to expand;
- Bluetooth & WIFI interface is reserved, our module can be directly plugged in and used;
- Reserve PS2 handle interface for direct plug-in use;
- I2C interface is reserved, and + 5V is drawn out at the same time for low-power modules (maximum output current does not exceed 100mA);
- Two DC motor output, single output maximum current 20A;
- Power supply input, maximum DC voltage 30V. The input end of the power supply is not designed with anti-reverse protection, and incorrect wiring may cause the bomber;
- The motor output over-current protection software is reserved for detection, and the protection threshold can be set by software (received to ATMEGA328 external interrupt port D2, for specific calculation, please refer to the schematic design parameters, protection current can be modified by software ≤20A).
- Its holes fit for Arduino, Raspberry Pi, etc.

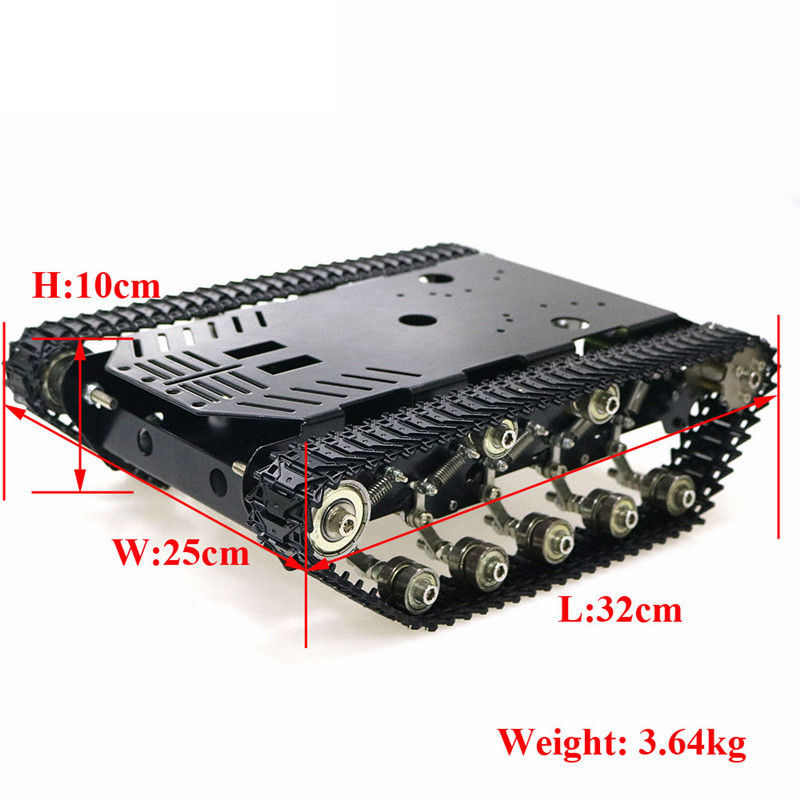

Specifications:
- Material: stainless steel metal
- Product Size: 32 * 25 * 10cm
- Weight: 3.64kg
- Load: 5-10kg

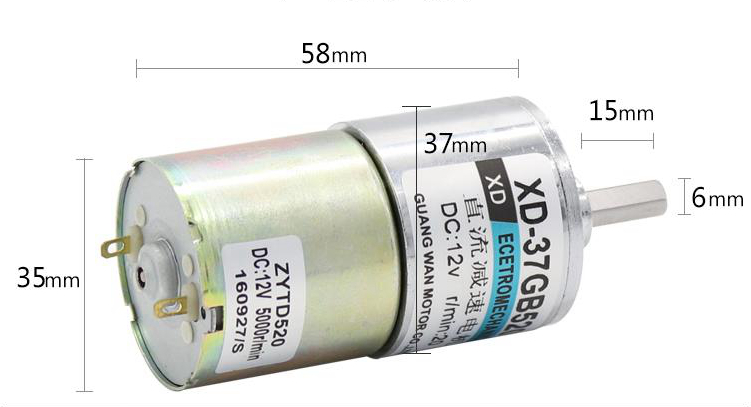

Motor:
- Model No.: XD-37GB520
- Voltage: DC 12V/24V
- Current: 0.5A
- Power: 10W
- Speed: 5-800 RPM
- Weight: 280 g
- Motor Size: 37 x 58 mm
- Shaft Size: 6 x 15 mm
- Adjustable Speed: Yes
- CW & CCW: Yes

Package Included:
- 1 x Tank Chassis Finished

Note:
- It is assembled and ready to use.
- This product requires certain DIY capabilities, and requires common knowledge of robot installation and debugging. Documentation can be accessed at: cn.doit.am  or wiki.doit.am
