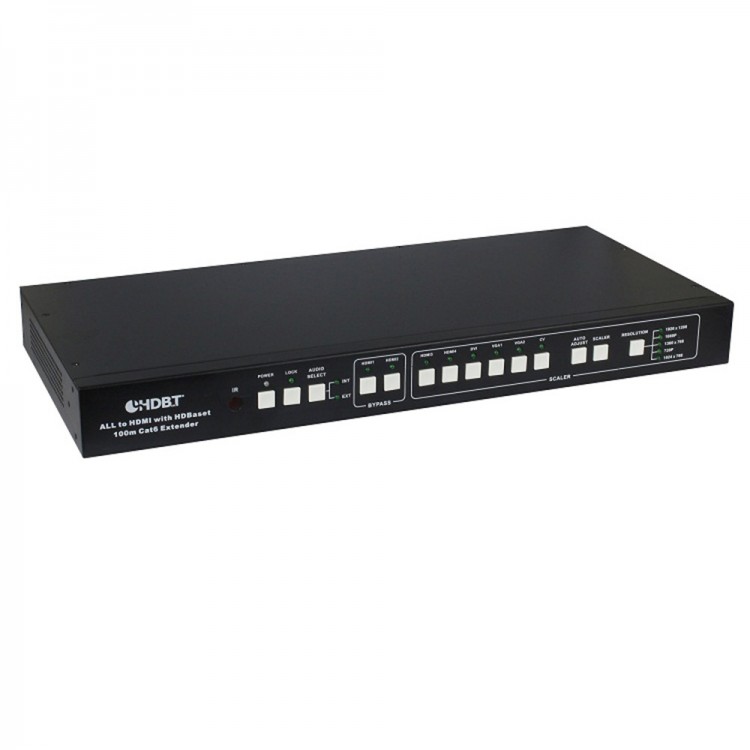

ALL to HDMI with HDBaset 100m Cat6 Extender VGA AV Ypbpr DVI HDMI to HDMI Converter HBT-332H100

ALL to HDMI with HDBaset 100m Cat6 Extender VGA AV Ypbpr DVI HDMI to HDMI Converter HBT-332H100

User manaual: Click here

Introduction
This machine is a high−performance presentation scaler and switcher. It accepts one of eight inputs: one DVI, two VGA, one composite video and four HDMI signals. The HDMI1, HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz, and HDMI3, HDMI4, DVI,
VGA1, VGA2, CV scales the video, supports output resolutions up to 1920x1080P@60Hz. It scales the video, embeds the audio, and simultaneously outputs the signal to HDMI and HDBaseT output, HDBaseT output transmission distances up to 328ft/100m (100m Version) through CAT6/7 cable, together with S/PDIF and stereo audio outputs. Flexible control mode diversity, through the front panel button, remote control, RS-232 and TCP/TP control.

Features
- HDMI, HDCP and DVI compliant
- The HDMI1,HDMI2 to bypass the input function, supports input resolutions up to 4Kx2K@30Hz
- The HDMI3,HDMI4,DVI,VGA1,VGA2,CV scales the video, supports input resolutions :
  HDMI: 480i to 1080p
  VGA:1920x 1080P@60Hz, 1360 x 768P@60Hz, 1280 x 1024P@60Hz,
  1024 x 768P@60Hz,1280 x 720P@60Hz,1280 x 768P@60Hz,
  800 x 600@60Hz, 640 x 480P@60Hz, 720 x 400P@85Hz
  CV: Supports PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats
- Supports transmission distances up to 328ft/100m (100m Version)  through CAT6/7 cable
- Supports POE function
- VGA video supports YPbPr and RGBHV
- Picture Adjustment Settings
- Supports embeds the audio
- Supports S/PDIF and stereo audio outputs
- Supports HDBaseT LAN Serving function
- The USB and RS-232 for the firmware update
- Supports RS-232, remote control, on-panel control and TCP/IP Control
- Supports smart EDID management

Package Contents
- ALL to HDMI with HDBaset 100m Cat6 Extender    1pcs
- HDBaseT Receiver                   1pcs
- 12V/2.5A DC power adaptor       1pcs
- Operation Manual          1pcs
- Wideband IR Tx cable   9pcs
- Wideband IR Rx cable                2pcs
- Scaler Switcher IR Remote     1pcs
- Mounting ears    2pcs
- RS232 cable     1pcs
