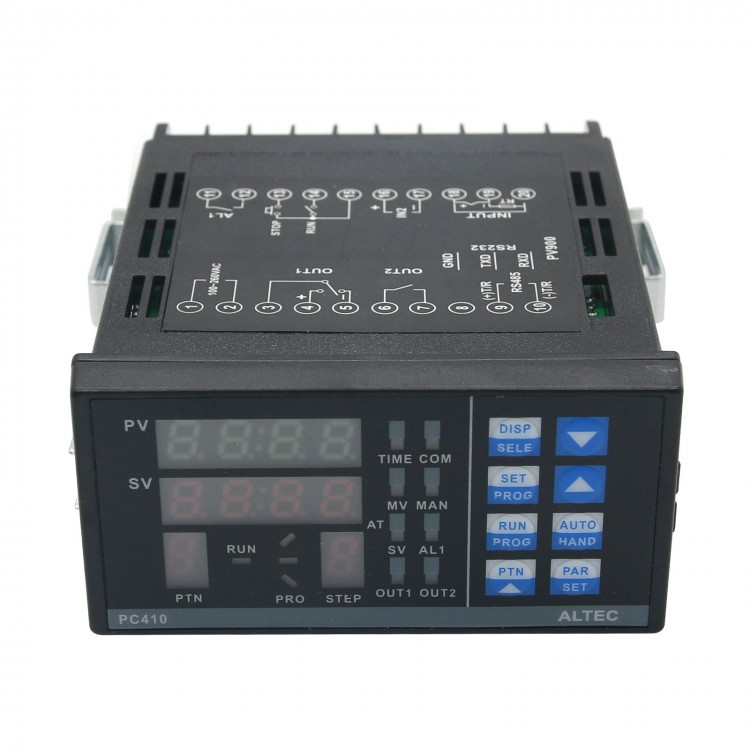

ALTEC PC410 Temperature Controller Panel for BGA Rework Station

ALTEC PC410 Temperature Controller Panel for BGA Rework Station


Product Description: PC410 Series instruments with 10 X 8-segment temperature curve,segmented output power limit and time of the event output,especially suitable for the required number of laboratory furnace temperature curve or environmental laboratory equipment and other occasions, the use of advanced PID control algorithm and PID self-tuning function,with no overshoot and undershoot without good control characteristics.

PC410 technical parameters:
- Accuracy: full scale ± 0.2% FS +1 digit numbers
- Sampling period: 125 ms
- Input: Thermocouple: J,K,E,R,S,T,B,N
- RTD: Pt100,Cu50
- Linear input: 0~20mA,4~20mA,-10.0~50.0mV,0~10V
- Output: relay,normally open contact (max.250VAC,3A)
- Logic level: 20V/20mA,can trigger high- SSR
- Analog: 0~10mA,4~20mA,0~20mA or 0~5V,1~5V,0~10V
- Single- phase thyristor zero-crossing output power can be triggered unidirectional,bidirectional thyristor
- Three-phase thyristor zero output,can trigger power unidirectional,bidirectional thyristor
- Single- phase thyristor phase output power can be triggered unidirectional,bidirectional thyristor
- Three-phase thyristor phase output power can be triggered unidirectional,bidirectional thyristor
- Alarm : relay,normally open contact (max.250VAC,3A);Alarm,upper and lower limit alarm,deviation alarm
- Curve Control: curve length: 8 procedure
- The number of curves: 10:1 -200 program cycle or continuous
- Regulation algorithm: switching regulator (on / off)
- Proportional,integral,differential regulation (PID),PID self-tuning
- Digital Communications: RS-232 (3 lines ),RS-485 (2 -wire)
- Power supply: Voltage Range: 85 ~ 264VAC,45/60Hz
- Environment:Operating Temperature: 0~50°c,relative humidity ≤ 8

Package List:
- 1 x ALTEC PC410 Temperature Controller Panel for BGA Rework Station
