Altera CycloneIV FPGA Learning Board EP4CE6E22C8N 32Mbit SPI FLASH for DIY
Features:
- Chip Cyclone IV
- 32Mbit SPI FLASH
- Onboard 26pin expansion interface, for touch screen, camera module, etc
- Onboard USB to seriel port chip
- 32Mbit SDRAM
- Support AD
- Onboard infared receiving module

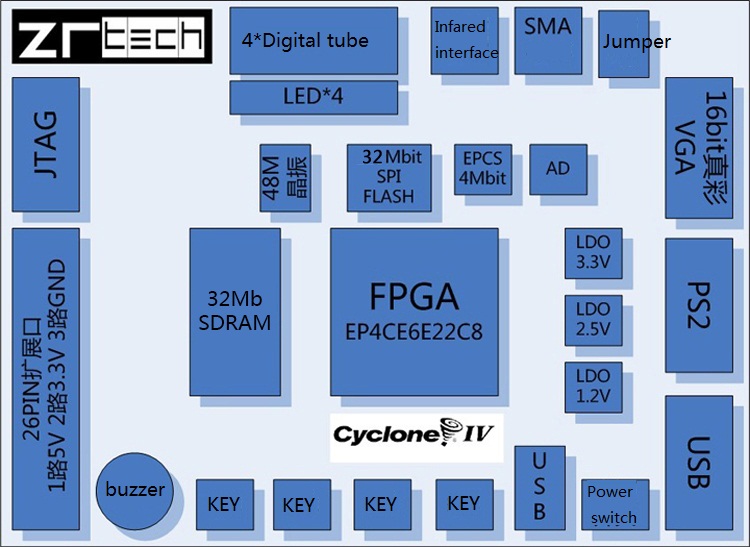

Specifications:
- FPGA: ALTERA EP4CE6E22C8N
- SDRAM: 32Mbit 8MByte
- FLASH: 32Mbit PI FLASH
- Seriel FLASH: EPCS4 4Mbit
- AD: Seriel AD
- Active crystal: 48MHz
- USB: UART PL2303HA
- VGA: 16bit=65536
- LED: led*4
- PS2 interface
- KEY*4
- Beep *1
- Infared interface
Package list:

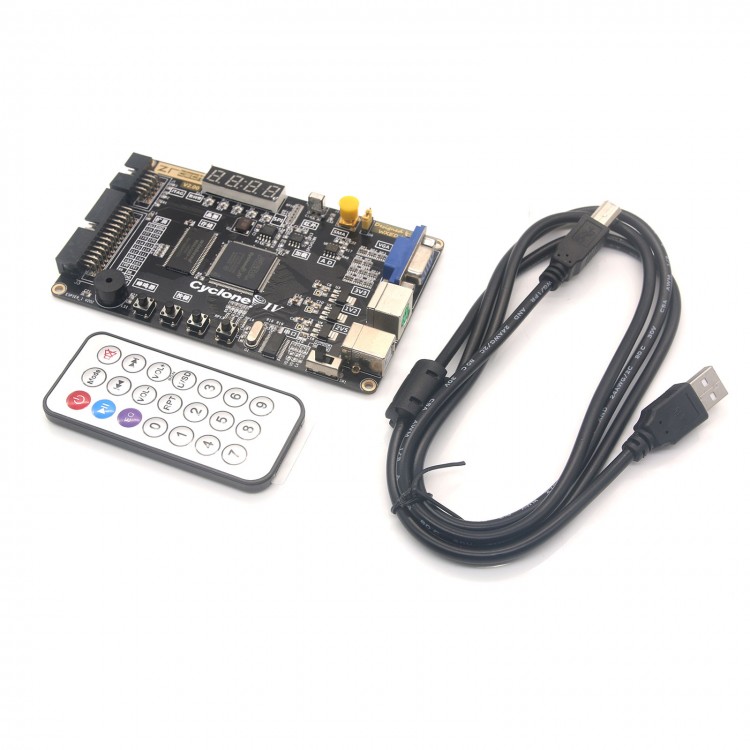

- 1 x Altera CycloneIV FPGA Learning Board
- 1 x USB cable
- 1 x Infared remote controller
