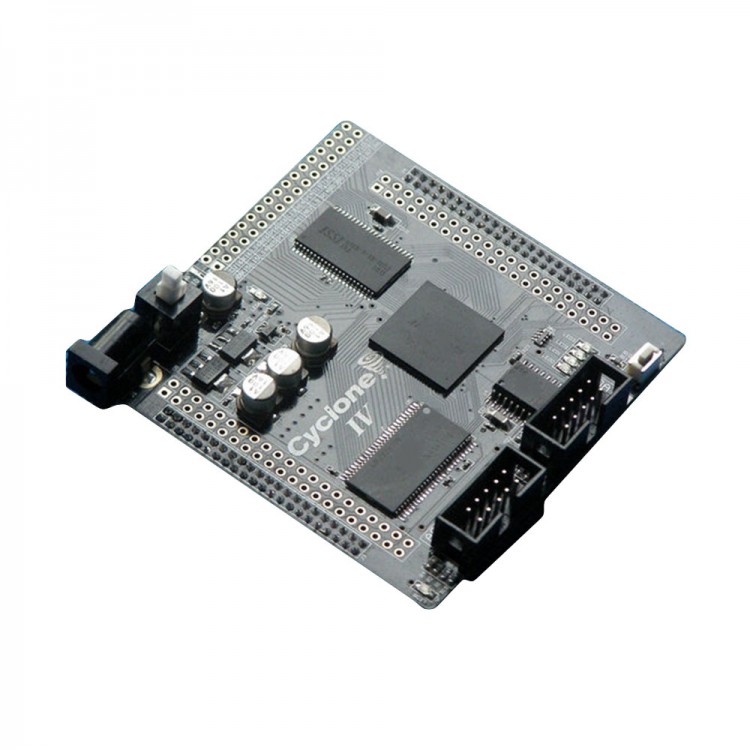

ALTERA FPGA CYCLONE IV Core Module Development Board 256Mbit SDRAM EP4CE15

Availability: In stock, usually dispatched in 1 business day

  • Price:$84.86
  • Price in reward points: 849 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $83.16 $81.47 $78.92 $75.53 Contact US
Quantity:
Buy it now Add cart

You might like

Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Stamp Module

Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Stamp Module

$98.36

(0)
FPGA Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Learning Module

FPGA Altera CYCLONE IV Core Board Development Board EP4CE15 FPGA Learning Module

$97.90

(0)
ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$166.69

(0)
Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

Upgraded ALTERA FPGA Development Board NIOS CYCLONE IV EP4CE15 with Downloader

$173.48

(0)
Altera EP4CE15 CYCLONE 4 Development Board EP4CE15 FPGA Module

Altera EP4CE15 CYCLONE 4 Development Board EP4CE15 FPGA Module

$179.50

(0)
Altera Cyclone IV FPGA Development Board EP4CE6E22C8N + Altera USB Blaster Programmer

Altera Cyclone IV FPGA Development Board EP4CE6E22C8N + Altera USB Blaster Programmer

$42.15

(0)
ALTERA FPGA NIOS CYCLONE IV EP4CE15 Development Board +USB BLASTER+Power Adapter+ E082

ALTERA FPGA NIOS CYCLONE IV EP4CE15 Development Board +USB BLASTER+Power Adapter+ E082

$163.90

(0)
Altera Cyclone V FPGA Development Board 5CSEMA5F31C6 Dual Core ARM Cortex-A9

Altera Cyclone V FPGA Development Board 5CSEMA5F31C6 Dual Core ARM Cortex-A9

$320.46

(0)

ALTERA FPGA CYCLONE IV Core Module Development Board 256Mbit SDRAM EP4CE15

Specifications:
- FPGA:  EP4CE15F17C8N
- SDRAM:  256Mbit    (16M*16bit)
- SRAM:   4Mbit        (256K*16bit)
- Seriel FLASH:   64Mbit      (EPCS64)
- Parallel FLASH:   32Mbit      (4M*8bit)
- Row seat: 22*2 2.0mm
- Crystal oscillator: 50M/40M (two crystal oscillators will be soldered)
- N.o of IO: 110
- Download: Support AS mode and JTAG mode
- Custom lights: 4
- Reset button: 1
- Download lights: 1
- Hardware compatibility: Compatible with the two generationboard,and can be directly connected to the bottom plate for hardware upgrading.
- Size: 76*76mm

Chip EP4CE15F17C8N:
- Series: CYCLONE IV E
- Number of logic elements/cells: 15408
- Number of LABs/CLBs: 963
- otal RAM Bits: 516096
- Number of IO: 165
- Voltage supply: 1.15-1.25V
- Mounting type: Surface mount
- Operating temperature: 0-85 deg C
- Package: 256-BGA
- Supplier device package: 256-FBGA (17*17)
- Lead free ststus: Lead free
- ROHS Status: Rohs Compliant

Package list (Not include USB download cable):
- 1 x Development Board
- 1 x USB interface power cable
