AM-30 Pneumatic Crimping Tool Pneumatic Air Powered Wire Terminal Crimping Machine
Features:
- The machine is driven by dual-action normal cylinder, which has advantage of high efficiency and quality in crimping force and speed.
- The machine is fit for crimping many kinds of terminals.
- The die sets can be interchangeable with our manual crimping tools.
Specifications:
- Model: AM-30
- Material: Tool Steel
- Rang of Application:
Non-Insulated Terminals: 10mm² Max
Pre-Insulated Terminals: 6mm² Max
Tube-shaped Terminals: 25mm² Max
- Output Force: 13.5KN
- Applicable Air Pressure: 0.5-0.7MPA
- External Dimension: 260mm x 120mm x 140mm
Usage:
- 1. Put the terminal in relevant tool mouth firstly.
- 2. Put the stripped insulated conductor into the terminal, push the foot air valve, and loose it after crimping well.
- 3. Cut off gas supply, dismount the fix bolts on the clamp with the L spanner.
- 4. Replace a desired clamp and screw down the bolt again.

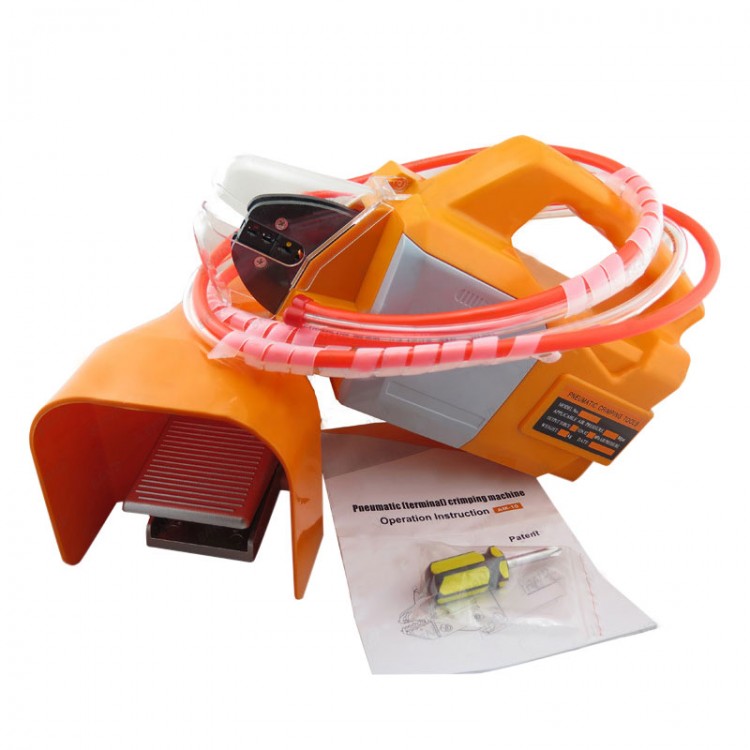

Package Included:
- 1 x AM-30 Pneumatic Crimping Machine
- 1 x Die Set
- 1 x Foot Air Valve
- 2 x Air Pipes
- 1 x Spanner
- 2 x Screws
- 1 x User Manual

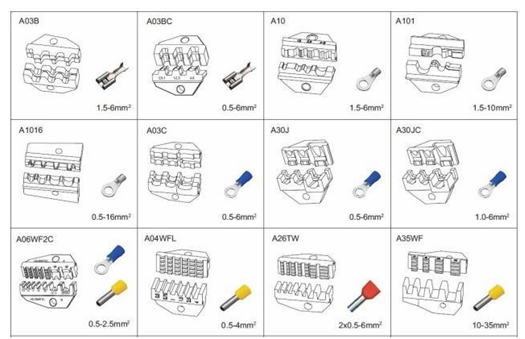

12 Dies Included:
