AM2315 Digital Temperature Humidity Sensor Module I2C Digital Signal Output 4-Wire

AM2315 Digital Temperature Humidity Sensor Module I2C Digital Signal Output 4-Wire

Description:
This digital temperature and humidity sensor is a temperature and humidity composite sensor with a calibrated digital signal output. With dedicated digital module acquisition technology and temperature and humidity sensing technology, it ensures high reliability and excellent long-term stability.

The sensor consists of a capacitive sensing element and a high precision temperature measuring device connected to a high performance 8-bit microcontroller. Therefore, this item has the advantages of excellent quality, ultra-fast response, strong anti-interference ability and high cost performance. Each sensor is calibrated in an extremely accurate humidity calibration chamber. The calibration coefficients are stored in the OTP memory as a program, and these calibration coefficients are called internally during the processing of the detection signal. The single-wire serial interface makes system integration easy and fast. Ultra-small size, extremely low power consumption, and signal transmission distances of up to 20 meters make it the best choice for even the most demanding applications.

Single bus digital signal output: data format

Humidity data bit + temperature data bit + checksum

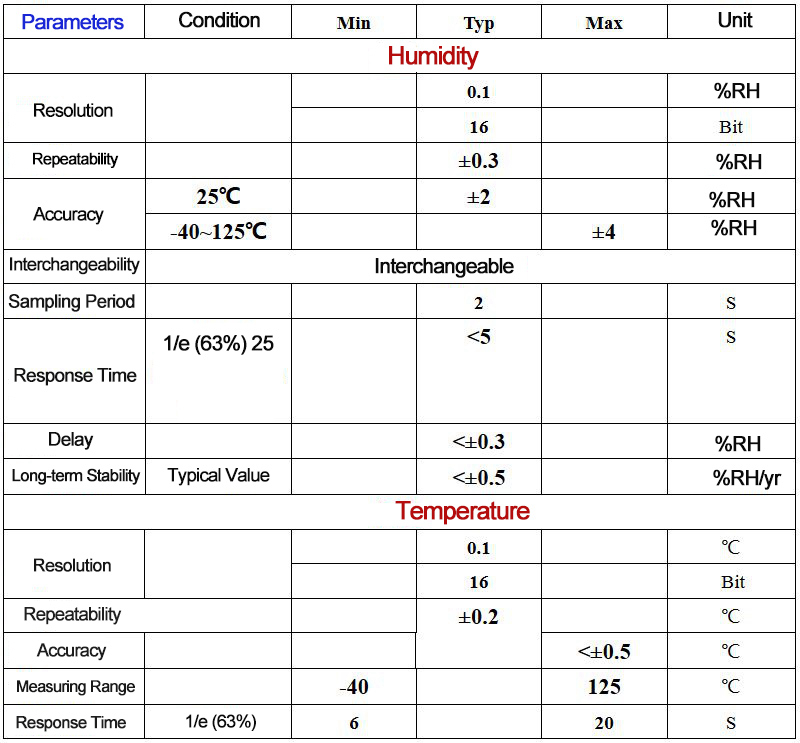

Introduction of Sensor Performance:

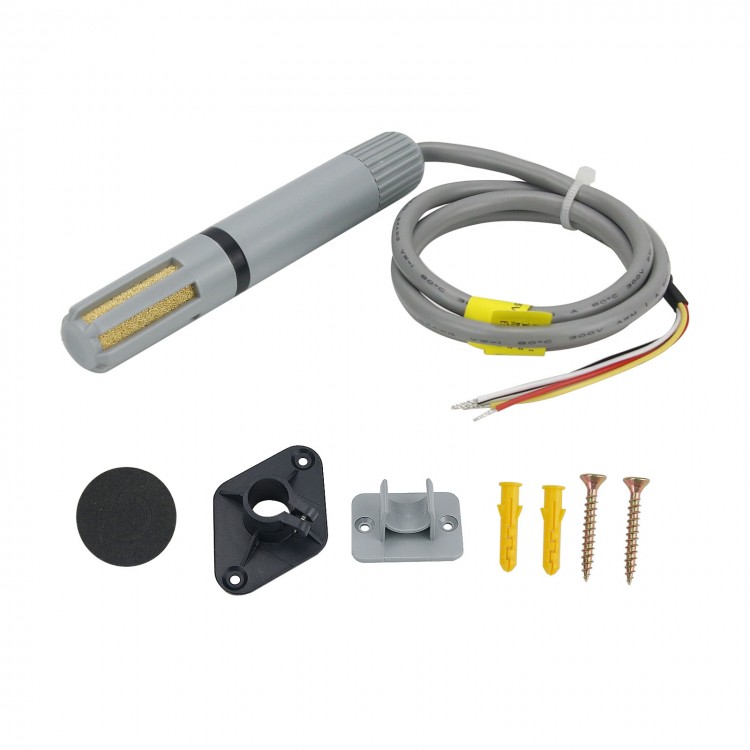

Package Included:
- 1 x AM2315 Temperature Humidity Sensor
- 1 x Wall-Mounted Part
- 1 x Tube-Mounted Part
- 2 x Fixing Screws
