Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $83.80 | $82.09 | $79.52 | $76.10 | Contact US |

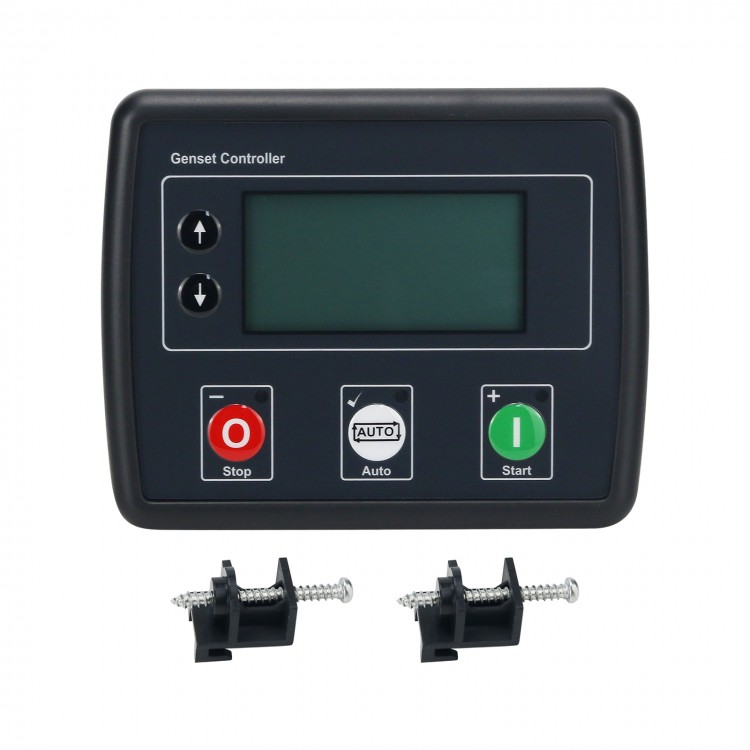

AMF Control Panel Automatic Mains (Utility) Failure Control Module Replacement for DSE4520 MKII
Functions:
- Configurable for use as an AMF or Automatic Start Control Module
- Support J1939-75 and shield CAN alarm
- Generator frequency and CAN detection speed
- Largest backlit graphic display in its class
- Optional low temperature version
- Real time clock
- All parameters can be set via front panel or PC
- Power saving mode
- 3-phase generator detection
- 3-phase mains detection
- Support 600V line voltage (L-L) system
- Unit/load power monitoring (kW, kVA, kVAr, pf)
- Cumulative power monitoring (kWh, kVA h, kVAr h)
- Overload protection
- Unit/load current detection and protection
- Fuel and start output (customizable when connected to EFI)
- 4 custom DC outputs
- 3 custom analog/digital inputs
- 4 custom digital inputs
- Custom graded load output
- 3 engine maintenance tips
- Engine speed protection
- Engine runtime timer
- Engine warm up
- Preset engine start and stop cycles
- Engine start idle and stop idle control
- Tier 4 standard engine instrument interface
- Battery voltage monitoring
- Start the unit when the battery voltage is low
- Custom remote start input
- 2 sets of protection parameters
- Complete alarm, electrical trip and shutdown protection
- LCD alarm indication
- 50 event records
Advantages:
- Small size and powerful function
- Automatic switch between mains and unit
- Real Time Clock Provides Accurate Event Recording
- Button layout is reasonable, easy to operate
- Parameter setting using setup software
- Compatible with a variety of EFI engines, including Tier 4
- Free PC Software
- IP65 grade (need to add gasket) good waterproof performance
Package Included:
- 1 x AMF Controller
Note:
- Battery is not included.
