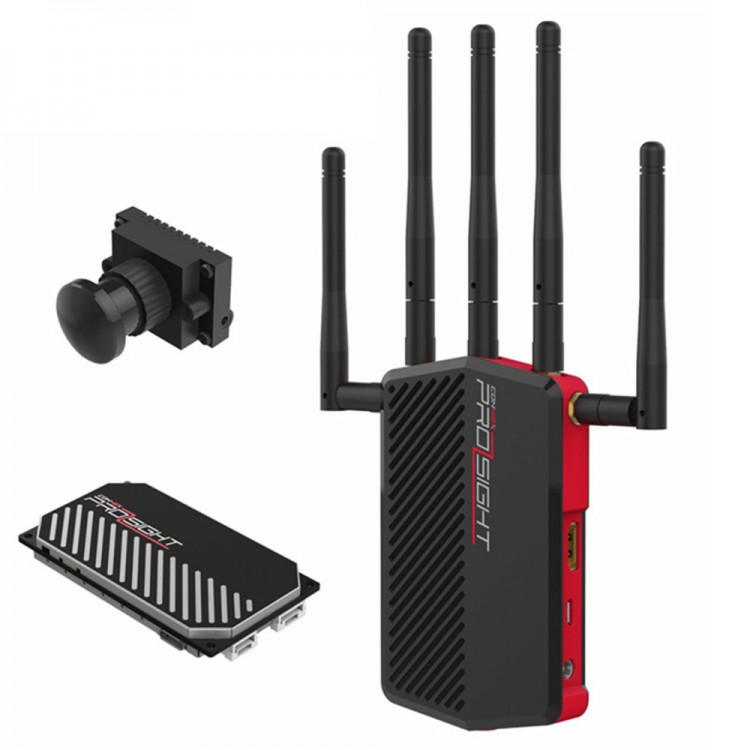

Amimon CONNEX ProSight 5.8G FPV Transmitter Receiver 720P Camera for Drone Quadcopter

Amimon CONNEX ProSight 5.8G FPV Transmitter Receiver 720P Camera for Drone Quadcopter

Description:
CONNEX™ ProSight is the missing link needed to usher in a new era in FPV racing. Plagued by analog systems’ poor image quality, and connectivity issues in multi-pilot scenarios, the sport needs a breakthrough to take it to the next level. CONNEX ProSight is just that, transforming FPV drones into a completely new kind of immersive experience for beginners and experts alike.

The Connex ProSight HD Vision Pack is a true game changer. It delivers unparalleled vision performance with delay-free wireless transmission. Its superior image quality combined with ease of installation, smooth configuration and improved multi-pilot flying experience for unmatched usability.

The CONNEX ProSight is the new standard in FPV Racing, an all-digital, delay-free, HD video solution. It is designed based on CONNEX’s unique and proven technology – used by professional drone users as well as the Hollywood movie industry.

Delay-Free FPv HD camera, The CONNEX ProSight HD camera is optimized for both indoor & outdoor flights, featuring advanced High-Dynamic-Range sensor, allowing 720P delay-free crystal clear video

Delay-Free HD Transmitter The CONNEX ProSight transmitter supports delay- free uncompressed all-digital HD transmission. Optimized for multi-pilot FPV Racing, providing fully immersive flight experience

Robust Digital HD Receiver The CONNEX ProSight ground receiver unit provides a robust digital link over the 5GHz band. Its HDMI interface, compatible with all popular HDMI goggles & screens in the market.

Features:
- 720p 30 HD Camera, with high-dynamic range sensor and 2.8mm lens
- Receiver Unit outputs standard 720p60 over HDMI for reducing motion blur
- Compatible with all popular HDMI based Goggles/Monitors
- Digitally paired transmitter to receiver for crosstalk-free flight
- Supported LOS range of 1000ft to 3000ft (300m to 1000m) varies with field conditions
- Advanced frequency setup for multi-pilots: Automatic & Manual modes, supporting 27 digital     channels (FCC)
- System configuration via Bluetooth using Android/iOS app or through built-in on-screen display menu
- Advanced High Definition spectator viewing mode
- Camera to HDMI receiver-out maximum latency of 26mS

Specifications Transmitter Unit:
- Dimensions: 70x36.5x7.2mm
- Weight: 32gr
- Input voltage: 8v – 16v (supports 2S to 4S)
- Power Connector: 4 Pins
- Power Consumption: 4.1W
- Antenna Connector: 2 External MMCX Connectors
- Video Interface: MIPI
- SW Upgrade: Micro USB
- Product  Configuration: Mobile App over Bluetooth

Specifications Receiver Unit:
- Dimensions: 75x115x17mm
- Weight: 134gr
- Input voltage: 8v – 26v (supports 2S to 6S)
- Power Connector: DC Jack
- Power Consumption: 3.5W
- Antenna Connector: 5 SMA Connectors
- Video Interface: HDMI (Type A)
- SW Upgrade: Micro USB
- Product  Configuration: Mobile App over Bluetooth

Specifications Camera:
- Dimensions: 28x20x27mm
- Weight: 13gr
- Input voltage: 5v  from Transmitter
- Power Connector: MIPI
- Power Consumption: 1W
- Antenna Connector: N/A
- Video Interface: MIPI
- SW Upgrade: Through Transmitter
- Product  Configuration: Via On-Screen Display

Package Included:
- Connex Pro Sight Video Receiver
- Connex Pro Sight Video Transmitter
- Connex Pro Sight Camera
- All necessary cabling
