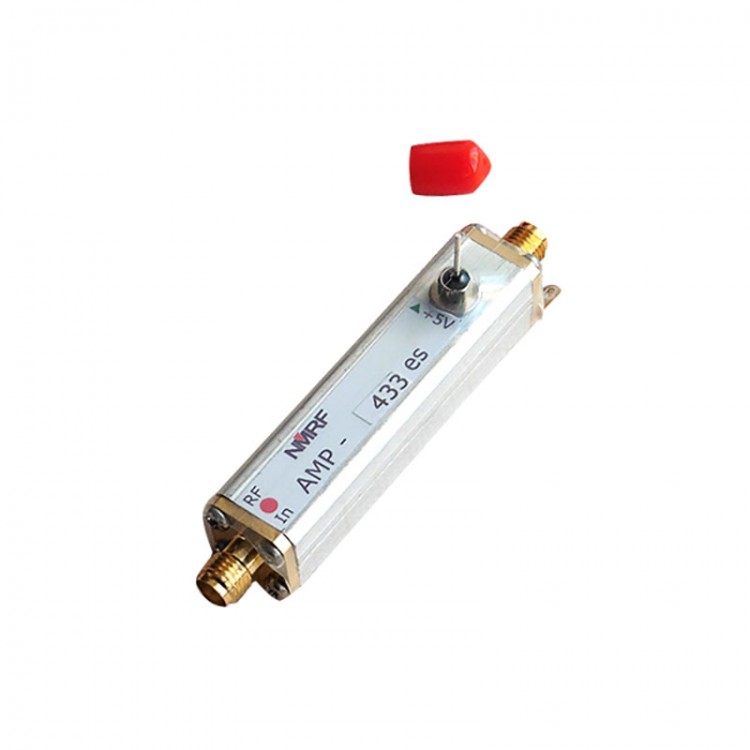

AMP-433es 433MHz High Gain Amplifier Low Noise LNA Builtin Limiter SAW Filter
Description:
It is used for pre-low noise amplification of the 433MHz band receiving system. Its center frequency gain is 32 to 38 dB, with built-in limiter, 10MHz bandwidth surface acoustic wave filter (SAW).
It is built with a sturdy aluminum alloy shielded casing with a cross section of only one-half inch (12.7mm). Featuring small size, it can be directly inserted into the original antenna feeder system.
Note: It is not waterproof. For outdoor uses, please take measures to against water.
Specifications:
- Model: AMP-433es
- Input & Output Impedance: 50 Ohms
- Gain: 32 to 38dB
- Noise Coefficient: < 2 dB
- 3dB Bandwidth: 429 to 439MHz
- Working Voltage: +5V
- Working Current: 40 to 45 mA
- Input & Output Interface: SMA-F
Package Included:
- 1 x High Gain Amplifier

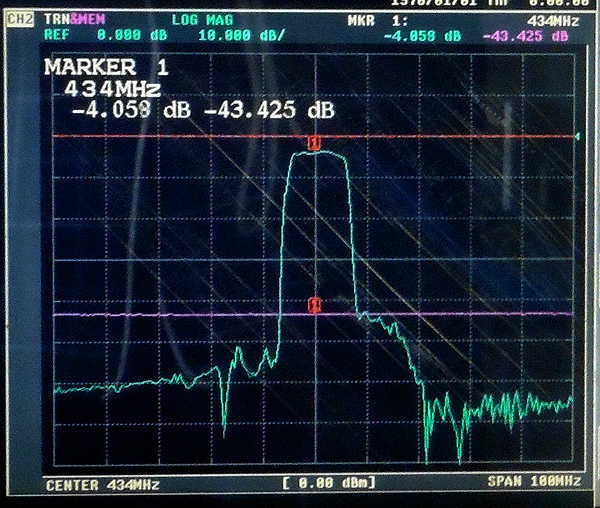

Gain Curve:

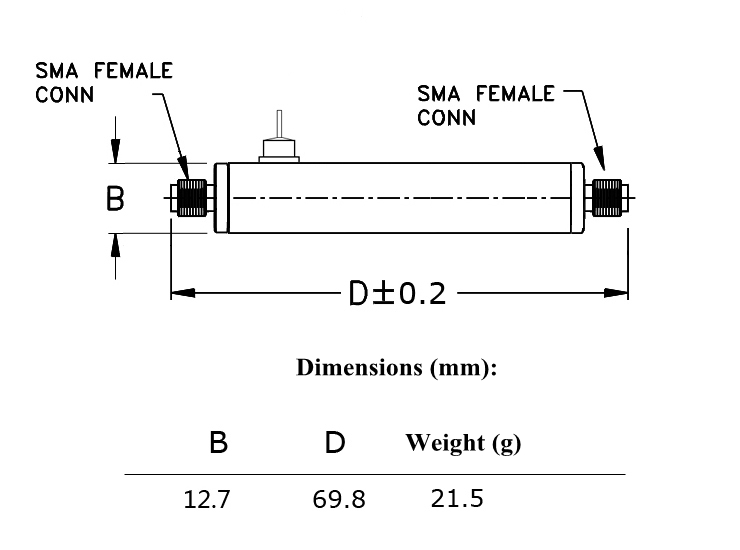

Dimensions:
