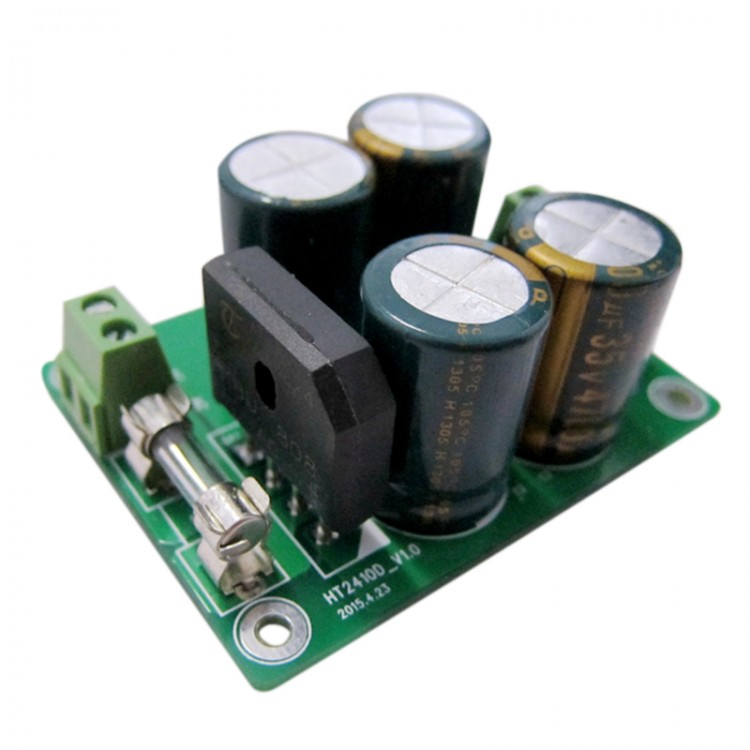

Amplifier Board Single Power Supply Rectification Filter TPA3116 Circuit Board TDA737797266 Finished Fuse 200W
Description:
High current rectifier, finished filter plate, with insurance, support dual mono power output, with four 4700UF/35V filter capacitor, less ripple and strong energy.
Function of filter plate:
Input single channel AC input, single DC output. Within the input voltage 20V, bridge current is 800V8A, peak is 20A. The board input is with the 6.3A fuse, prevent the output short circuit board burning, dual output, can be connected to two power amplifier board. The maximum of the rectifying plate can only connect to loaded ones that is within 250W.
Specification:
Rated input: <=AC20V10A
Rated load: <= 250W
Dimensions: 52*70*30mm (length * width * height)
Package included:
- 1 x Amplifier Board
