AMZ070-A 7" Touch Screen HMI Display w/ PLC Communication Cable for Mitsubishi Delta Xinjie Siemens

AMZ070-A 7" Touch Screen HMI Display w/ PLC Communication Cable for Mitsubishi Delta Xinjie Siemens

Features:

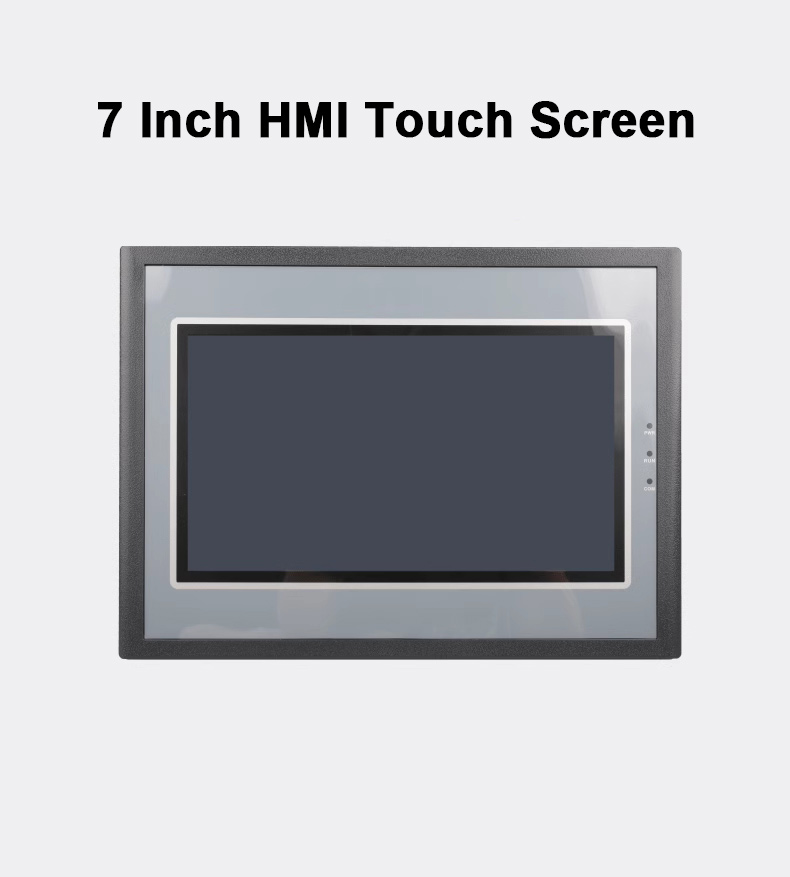

- 7 inch HMI touch screen
- 18-month warranty
- Stable performance, reliable quality and cost-effective
- Communication port: one serial port supports COM1 communication (RS232/RS485/RS422 communication)
- Configuration software programming makes it easy to learn. It is easy to learn and easy to use software operation interface. Each control is modular and highly integrated. Thus, beginners with no programming experience can also get started quickly, which is far simpler than the development of serial port command screen
- Powerful and stable performance: Commonly used controls include switches, numerical displays, picture displays, historical trend charts, historical data displays, message displays, icons, trend charts, GIF displays, alarm displays, fast flow, text, tables and various graphics. It supports Chinese and English, supports multi-language settings, multi-function buttons, recipes, data transfer, data collection, curves and other advanced functions, and support macros
- Rich image library: vector gallery, arbitrary zoom without aliasing, and support PNG/JPG/GIF/BMP and other formats of pictures. Users can add their favorite images to the software's custom gallery as needed
- It has a wide range of communication applications because it supports a variety of communication methods and controller communication protocols. The communication speed is fast, the picture is smooth, and it supports RS422, RS232 and RS485 communication modes. It can be widely used in various PLC controllers, inverters, servo motors, instrumentation and MCU communication. Support MODBUS protocol; free-port protocol; support commonly used controller communication protocols on the market such as for Mitsubishi, Siemens, Delta, Xinjie, Panasonic, Omron, FATEK, Fengwei, Keyence, LG, Emerson, Hollysys and Haiwell. When using it, the user only needs to select the corresponding protocol directly on the connection settings of the software to call

Specifications:
Hardware Performance:
- Model: AMZ070-A
- Display: 7" TFT LCD
- Resolution: 800x480
- Color: 260,000
- Brightness: 600cd/m2
- Backlight: LED (adjustable backlight)
- LED lifespan: 20000 hours
- Touch screen: 4-wire industrial electronic touch screen (surface hardness 4H), support capacitive touch screen
- CPU: 32-bit 600MHz ARM9 built-in 32MB DDR memory
- Memory: 128Mbyte SPI NAND FLASH
- RTC: Built-in real-time clock
- Ethernet: None
- Save data in case of power failure: Support

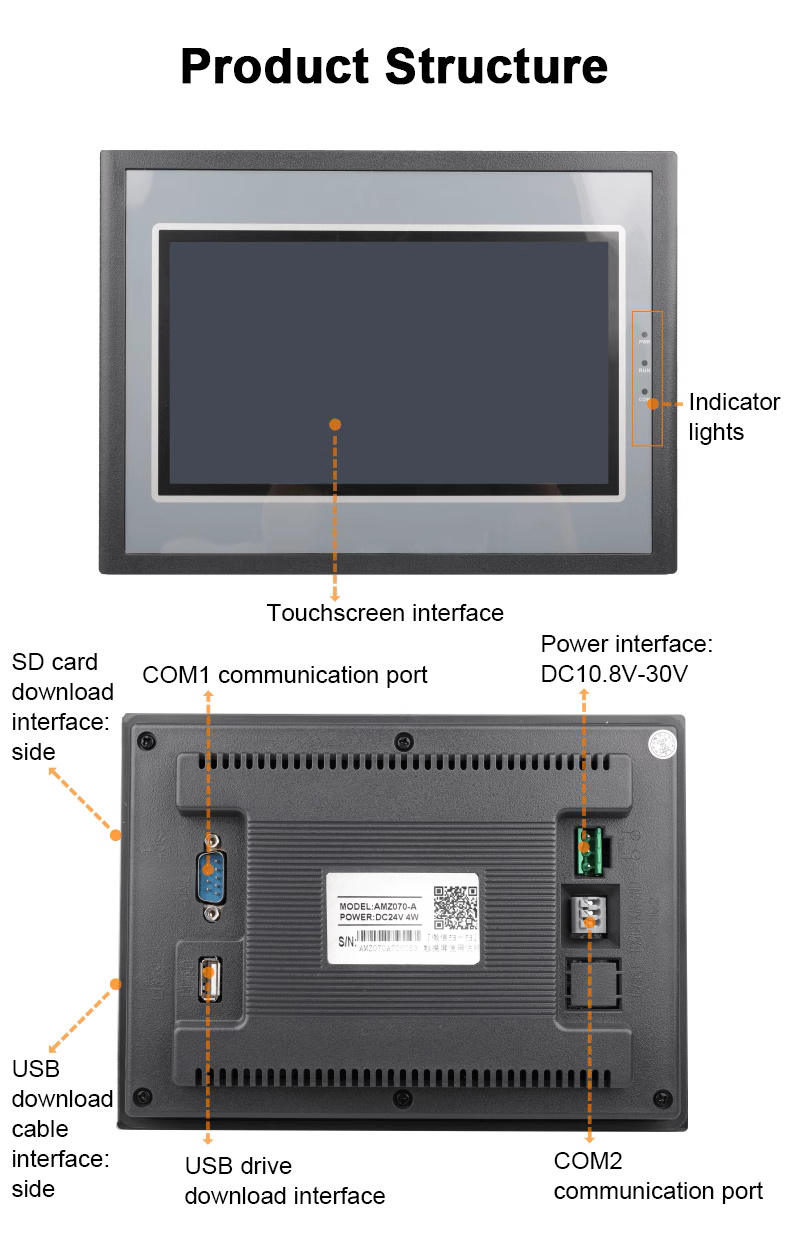

- USB port: USB1: MicroUSB, downloading port; USB2: TYPE-A, U disk port
- Program download method: USB download/U disk download/SD card download
- USB drive: Support USB drive to upgrade and import and export data

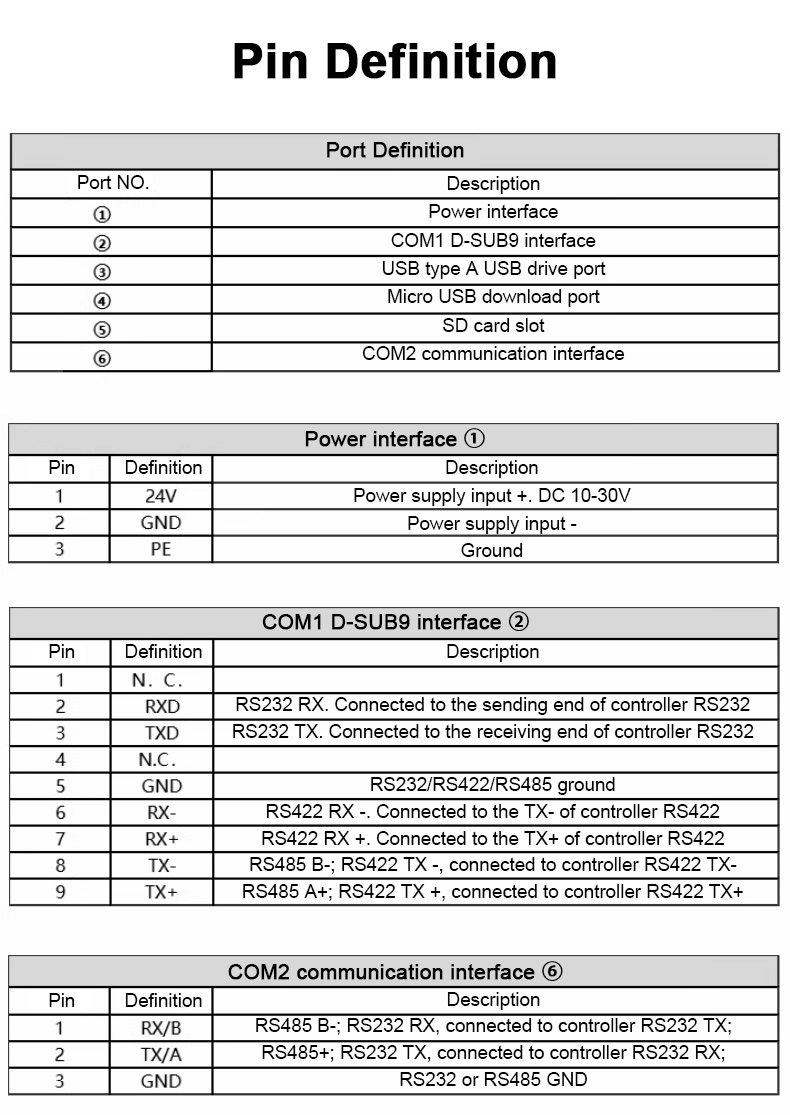

- Serial communication port: COM1: RS232/RS485/RS422 communication (choose one of three). Only one channel communication is supported

Electrical Specifications:
- Rated power: <4W
- Rated voltage: DC24V, working range±15%
- Power supply protection: anti-reverse connection, distinguish between positive and negative poles of power supply; with over-voltage protection, that is, when the voltage exceeds 33V, it will automatically protect the screen; with +/-2KV lightning surge protection
- Permitted power loss: <5mS
- CE & RoHS:
 • Complies with EN61000-6-2:2005 and EN61000-6-4:2007 standards.
 • Lightning surge +/-2KV, group pulse +/-4KV, electrostatic contact discharge +/-8KV, electrostatic air discharge +/-15KV.

Environmental Specifications:
- Operating temperature: -20 to 50°C
- Storage temperature: -40 to 70°C
- Ambient humidity: 10~90%RH (non-condensing)
- Seismic resistance: 10~25Hz (2G/30 min. in X, Y and Z directions)
- Cooling method: natural air cooling
- Degree of protection: IP65 for the front panel (for installation with electrical cabinet) and IP20 for the rear fuselage

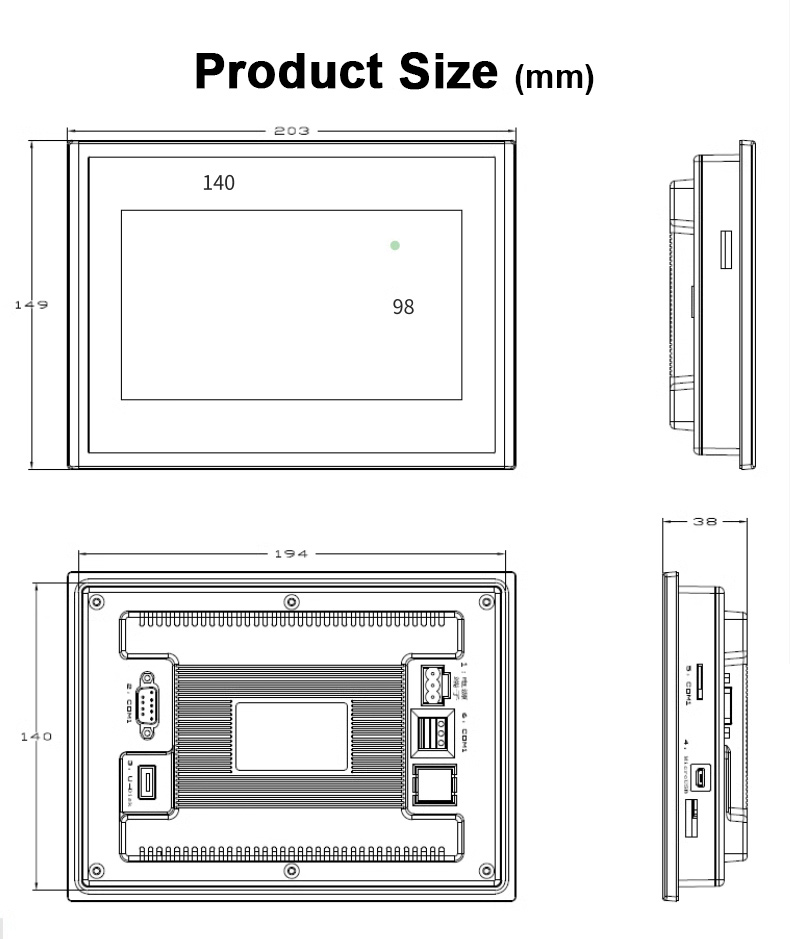

Other Parameters:
- Installation dimensions: 194 x 140mm/7.6 x 5.5"
- Product size: 203 x 149mm/8 x 5.9"
- Active display area of the touch screen: 154.1 x 85.9mm/6.1 x 3.4"
- Net weight: 490g/1.1lb

Package Included:
- 1 x Touch screen
- 1 x Bag of accessories
- 1 x Installation manual
- 1 x PLC communication cable

Packaging Details:
- G.W.: 0.7kg
