Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $43.64 | $42.75 | $41.41 | $39.63 | Contact US |

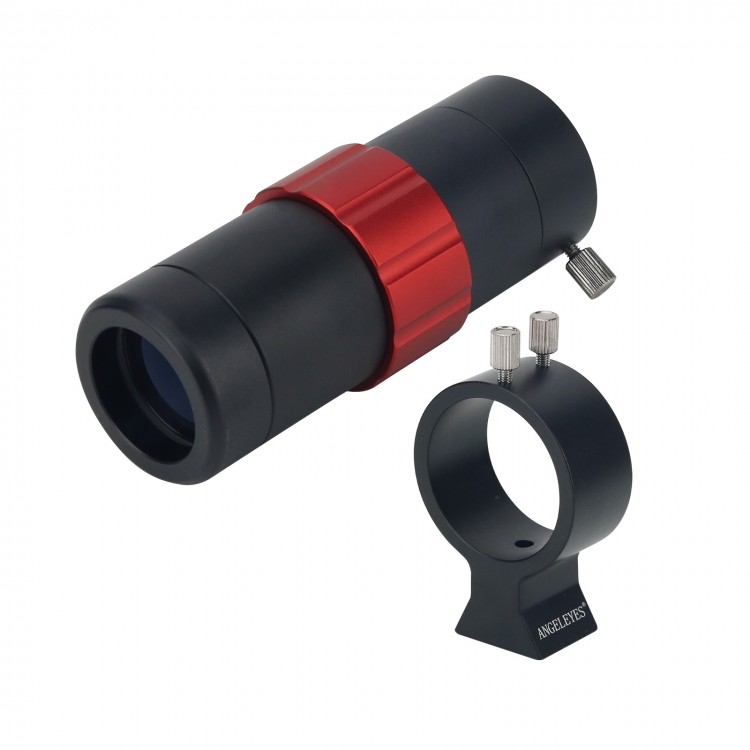

Angeleyes DX-30F4 32mm Guiding Telescope Guide Scope Accessories Suitable for ZWO QHY SG4 STI DMK
Features:
- Angeleyes DX-30F4 is a 32mm guiding telescope.
- Multilayer coating: Full surface FMC broadband multi-layer anti-reflection coating and optimized doublet objective lens with high resolution provide high-definition HD image quality.
- Integrated hoop dovetail plate: The sturdy all-metal structure makes it easy to operate and provides a stable guiding.
- Can be connected to eyepiece: Extra-long focusing (MAX 28mm) with a 1.25/M42 adaptor.
- Fixed locking: With adjustable focal length. The guide scope supports 360-degree smooth rotation.
- Easy installation: 1/4 screw hole at the bottom of the dovetail plate is convenient for direct fixation and installation.
- Lightweight and portable: The net weight of the product is 0.3kg. It is processed by CNC machines. It is black and red.
- Dust caps on the front and back: The dust caps prevent dust from entering and protect the lenses for longer use.
Specifications:
- Aperture: 32mm
- Focal length: 125mm
- Focal ratio: F4
- Interface: 1.25/M42 adapter
- Lens coating: Multi-coated green film
- Material: Metal body
- Weight: 0.3kg
- Product function: It is a telescope attached to the barrel of the main telescope to monitor the guiding. Its role is to ensure that the main telescope accurately track the observed object. And once the guiding deviates from the correct position, it will be corrected by the telescope's driving device
- Applicable guiding cameras: For ZWO, QHY, SG4, STI, DMK, etc.
Package Included:
- 1 x Guiding telescope
- 2 x Dust covers
- 1 x Integrated hoop dovetail plate
- 3 x Screws
Packaging Details:
- Weight: 0.5kg
Note:
- Eyepieces are required. Eyepieces and tracking drive are not included.
