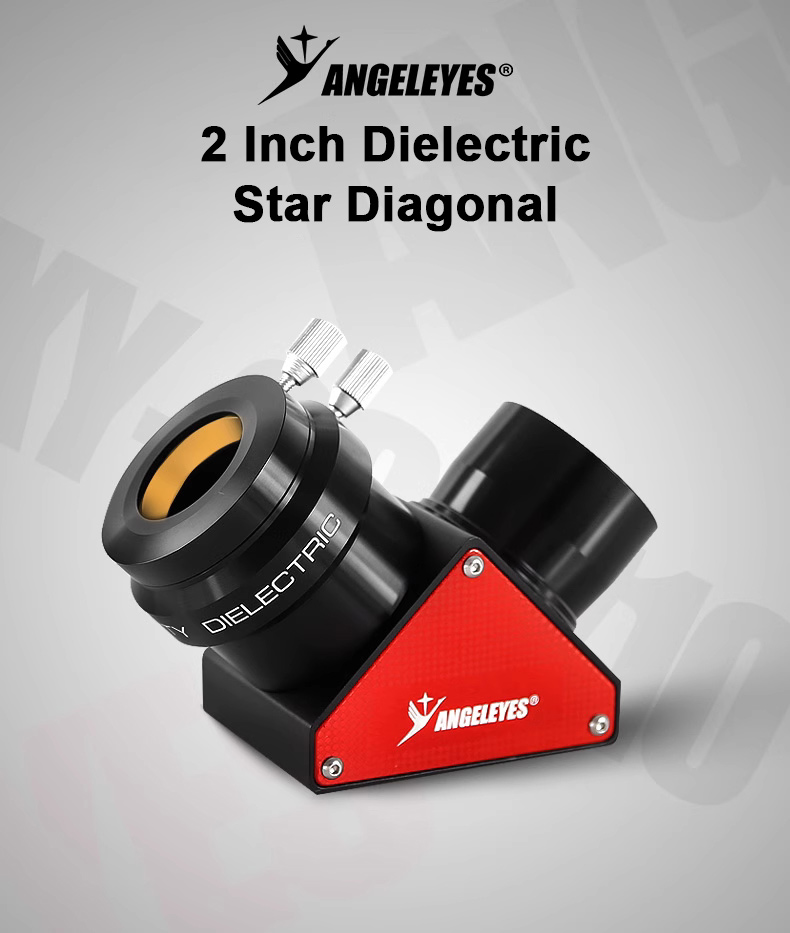

Angeleyes XY-230710 2" Dielectric Star Diagonal w/ 99% Reflectivity Provides a 90° Viewing Angle

Angeleyes XY-230710 2" Dielectric Star Diagonal w/ 99% Reflectivity Provides a 90° Viewing Angle

Features:

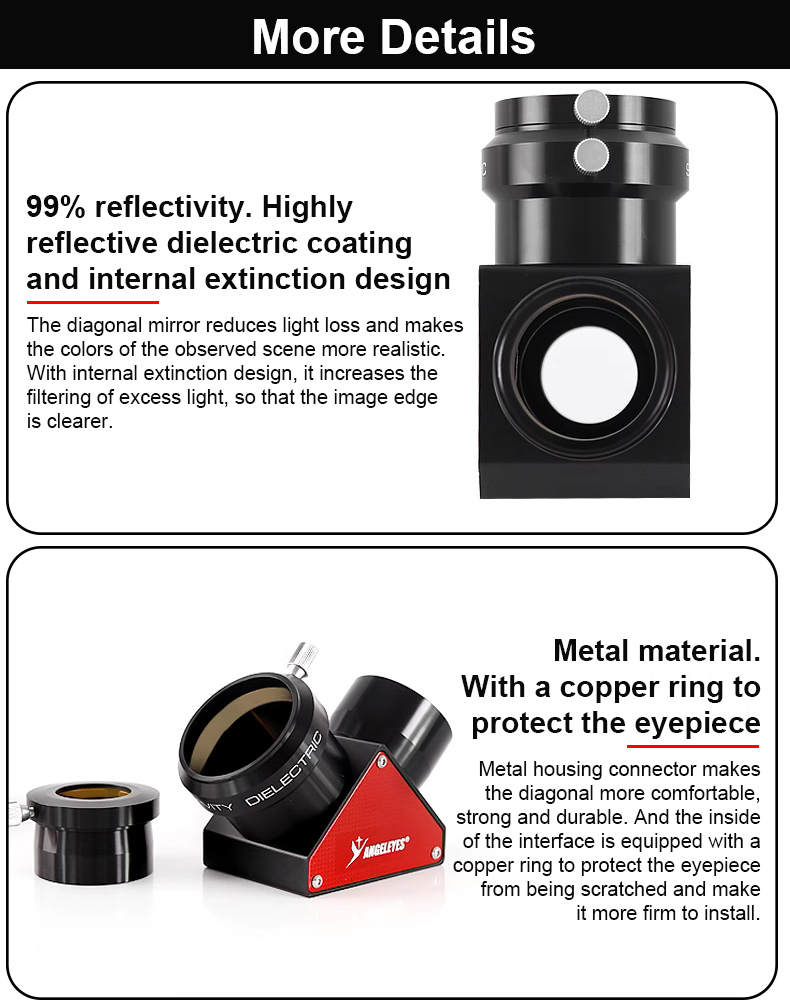

- 2" 90-degree star diagonal boasts 99% reflectivity. With highly reflective dielectric coating and internal extinction design. The diagonal mirror reduces light loss and makes the colors of the observed scene more realistic. With internal extinction design, it increases the filtering of excess light, so that the image edge is clearer.
- Metal material. With a copper ring to protect the eyepiece. Metal housing connector makes the diagonal more comfortable, strong and durable. And the inside of the interface is equipped with a copper ring to protect the eyepiece from being scratched and make it more firm to install.

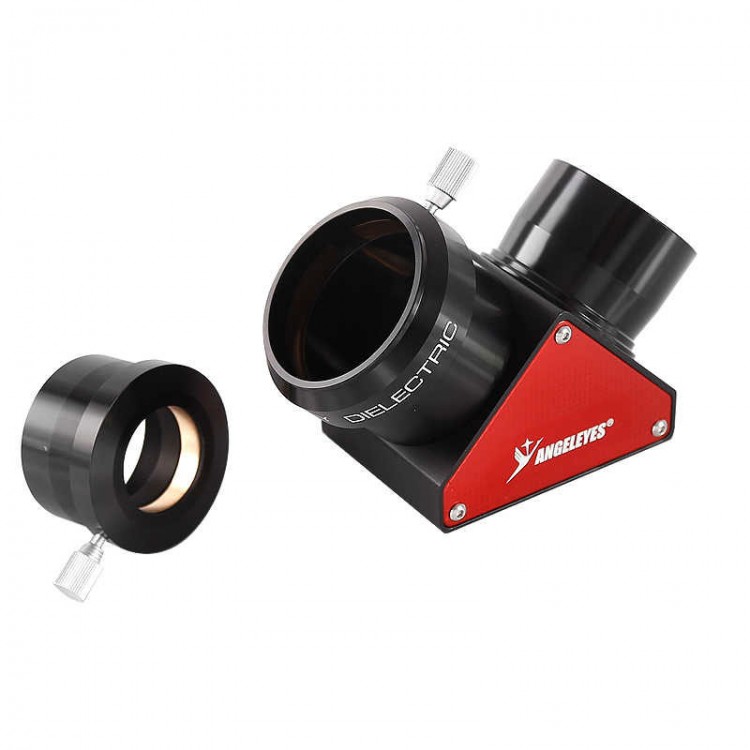

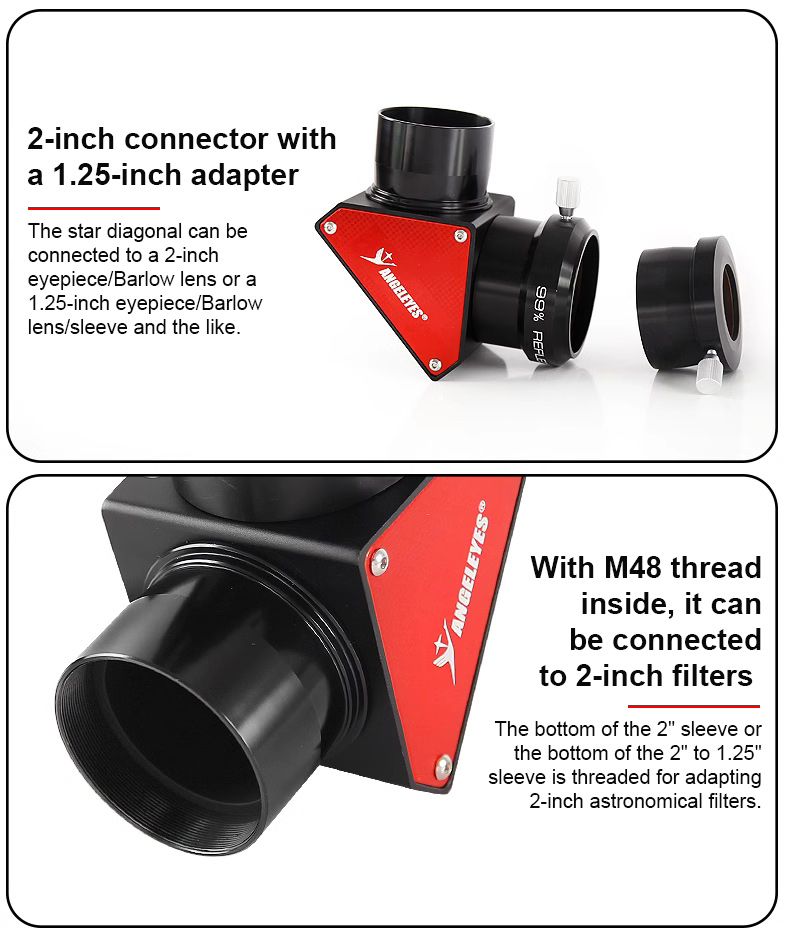

- 2-inch connector with a 1.25-inch adapter: The star diagonal can be connected to a 2-inch eyepiece/Barlow lens or a 1.25-inch eyepiece/Barlow lens/sleeve and the like.
- With M48 thread inside, it can be connected to 2-inch filters. The bottom of the 2" sleeve or the bottom of the 2" to 1.25" sleeve is threaded for adapting 2-inch astronomical filters.

Specifications:
- Model number: XY-230710
- Item name: 2-inch metal diagonal mirror
- Material: Metal case/adaptor/sleeve. The inside of the sleeve is fixed with an anti-scratch eyepiece copper ring
- Purpose: Used for refraction/reflex telescope imaging
- Coating + interior: High-reflective dielectric film/internal extinction. 99% reflectivity
- Interface: 2-inch connector (with 1.25-inch adaptor). The inside of the sleeve is threaded to fit a 2-inch M48 filter
- Net weight: 405g/0.9lb

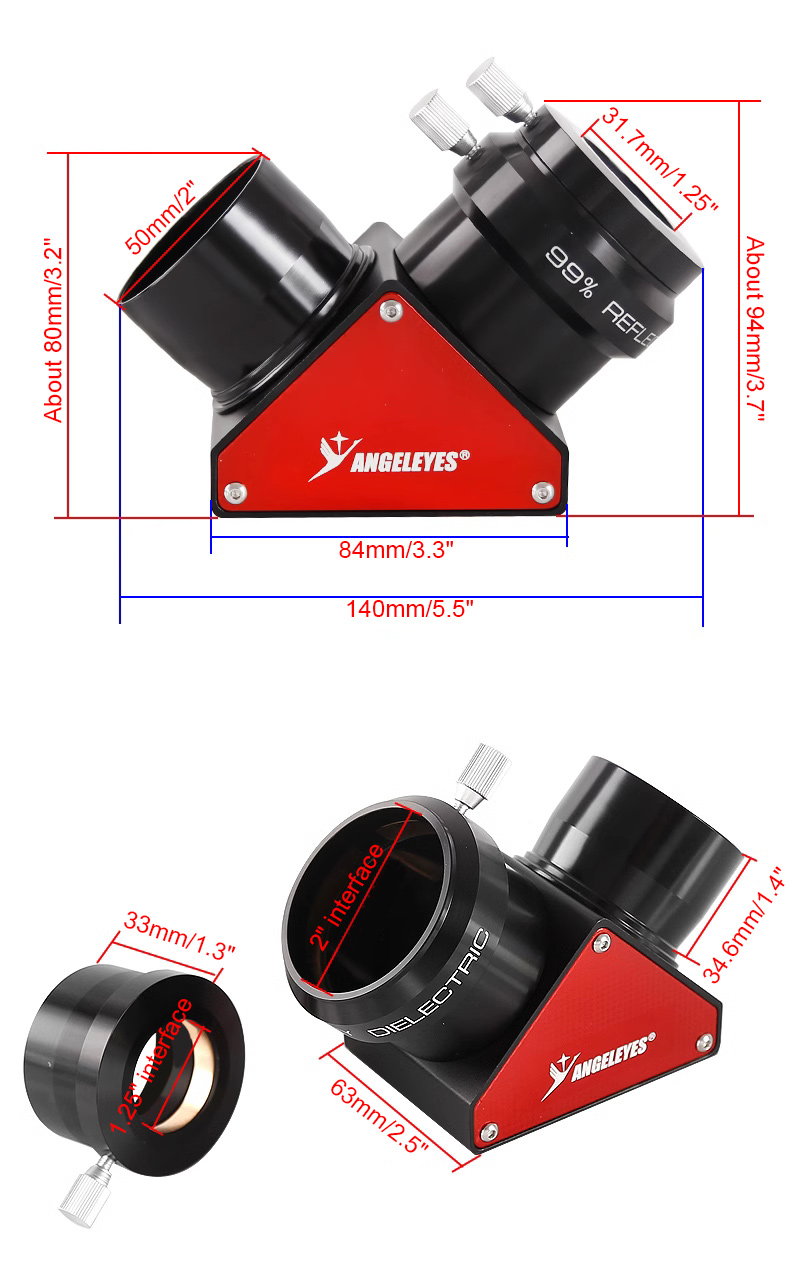

- Star diagonal size: Approx. 140mm x 63mm x 94mm/5.5" x 2.5" x 3.7"

Package Included:
- 1 x Diagonal mirror
- 2 x Dust covers

Packaging Details:
- Weight: 0.5kg
- Packaging size: 190mm x 150mm x 90mm
