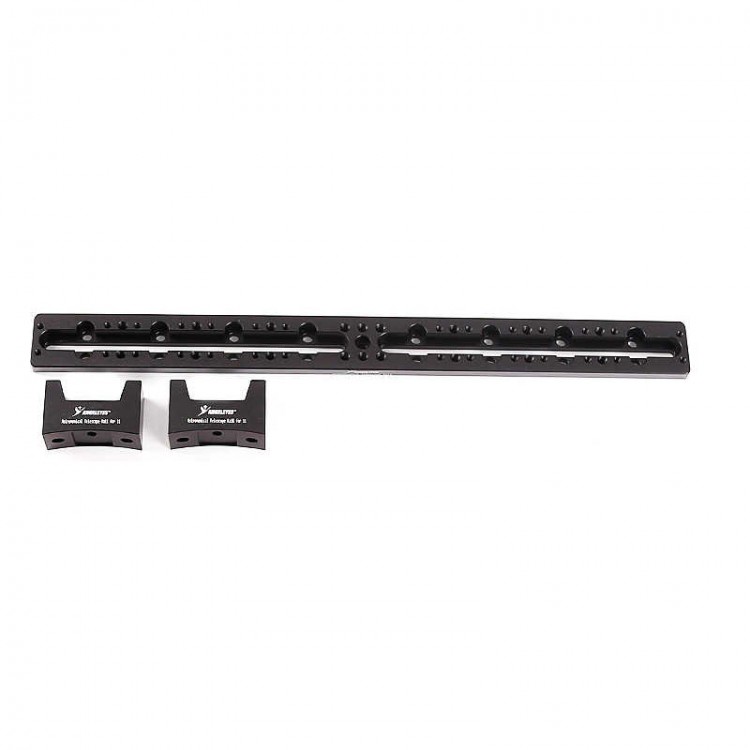

Angeleyes XY-230803 445mm/17.5" Dovetail Plate (Black) for C11/C11HD Schmidt-Cassegrain Telescopes
Precautions for the installation of the base of the dovetail plate:
1. Remove the screws on your tube and replace them with the long screws delivered. The original screws are put away for future backup. C11/C11HD has two screws at each end.
2. Tighten the screw by hand first. The screw you used may be wrong if it cannot be all screwed in or cannot be screwed after a few turns. Please not continue to install the screw.
3. For the end with two screws, when you are tightening the screws, please not tighten the screw on one side at once. Tighten the screws evenly several times. If you tighten the screw on one side at one time, the screw on the other side may not be tightened. Or the screw on the other side can not be screwed all the way in, which will lead to a safety hazard.
Description:
The dovetail plate set is suitable for installing guide scopes, ZWO guiding boxes, finderscopes and other accessories on the primary mirror of C11/C11HD for Celestron. It can also be used as a carrying handle, but please be careful to use it safely.
It is easy to use when the dovetail mounting plate is used as a carrying handle. It can be used as a carrying handle because the screws have enough strength. However, in the process of practice, the handle may fall off and cause losses if the bolts used are too short, the number of teeth used is less, the tooth is slippery, and the bolts are not processed and the strength is not enough. Users should install it correctly, check before use, and use this product with caution (users with a heavier tube are not recommended to use this product as a handle for the primary mirror)!
Product parameters:
- Item name: Dovetail plate set with screws for C11/C11HD
- Product model number: XY-230803
- Compatible model numbers: For C11/C11HD Schmidt-Cassegrain telescopes
- Product material: Aluminum alloy + oxide coating
- Product weight: 594g/1.3lb
- Length of dovetail plate: 445mm/17.5"
- Product use: It can be used to install guide scopes, guiding boxes, finderscopes and other accessories on your primary mirror. The dovetail plate can also be used as a carrying handle. Please use the long screws included to prevent your primary mirror from slipping off when the guide rail is used as a carrying handle
Package included:
- 1 x Set of dovetail plate
Packaging details:
- Weight: 0.7kg
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
