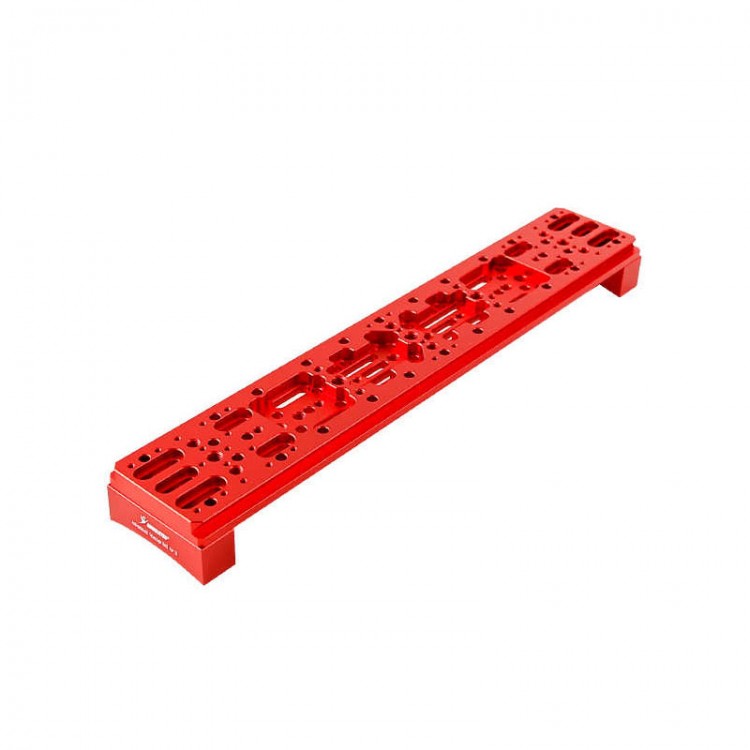

Angeleyes XY-240609 (Red) 17.5" Dovetail Plate Dovetail Mounting Plate w/ Wide Rail for C11/C11HD
Description:
The dovetail plate set is suitable for installing guide scopes, ZWO guiding boxes, finderscopes and other accessories on your primary mirror. It supports Schmidt-Cassegrain telescopes C11/C11HD/CPC1100 (HD). It can also be used as a carrying handle, but please be careful to use it safely.
It is easy to use when the dovetail mounting plate is used as a carrying handle. It can be used as a carrying handle because the screws have enough strength. However, in the process of practice, the handle may fall off and cause losses if the bolts used are too short, the number of teeth used is less, the tooth is slippery, and the bolts are not processed and the strength is not enough. Users should install it correctly, check before use, and use this product with caution (users with a heavier tube are not recommended to use this product as a handle for the primary mirror)!
Features:
- The dovetail plate can be used to install guide scopes, guiding boxes, finderscopes, etc.
- It can also be used as a carrying handle.
- Dovetail mounting bases can be installed to the guide rail for connection to finderscopes, guiding boxes, guide scopes and the like. The mounts have to be bought separately.

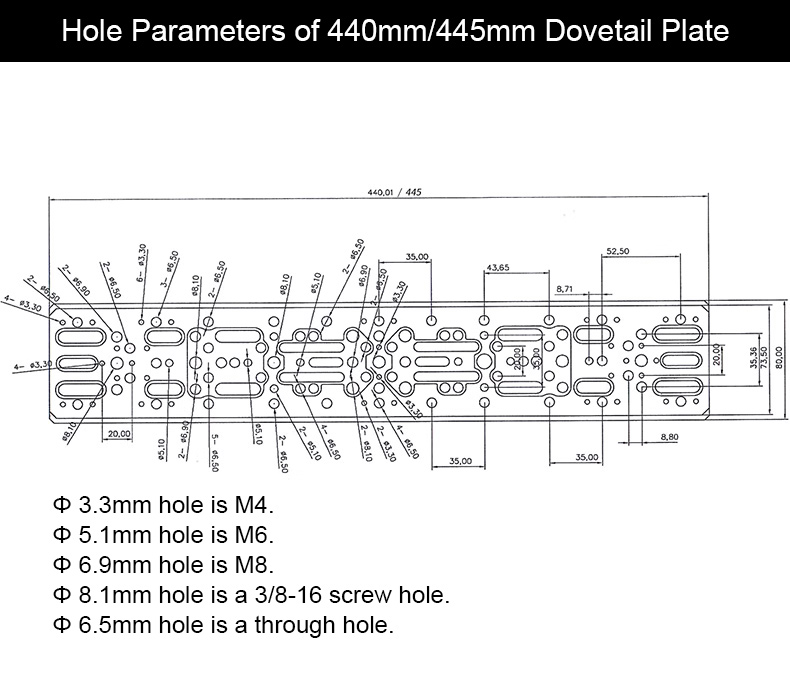

- The dovetail mounting plate with abundant mounting holes makes it convenient for users to choose the right position to install astronomical accessories. One or more mounting bases can be installed to the dovetail plate at the same time to adapt to corresponding astronomical accessories.
Product parameters:
- Item name: C11 dovetail plate with a wide rail (screws included)
- Product model NO.: XY-240609
- Compatible model numbers: For Schmidt-Cassegrain telescopes C11/C11HD/CPC1100 (HD)
- Product material: Aluminum alloy + oxide coating
- Product weight: 1061g/2.3lb
- Length of dovetail plate: 445mm/17.5"
- Product use: It can be used to install guide scopes, guiding boxes, finderscopes and other accessories on your primary mirror. If you use it as a carrying handle, please use it with caution to avoid slipping due to improper installation of the primary mirror
- Optional colors: Black and red

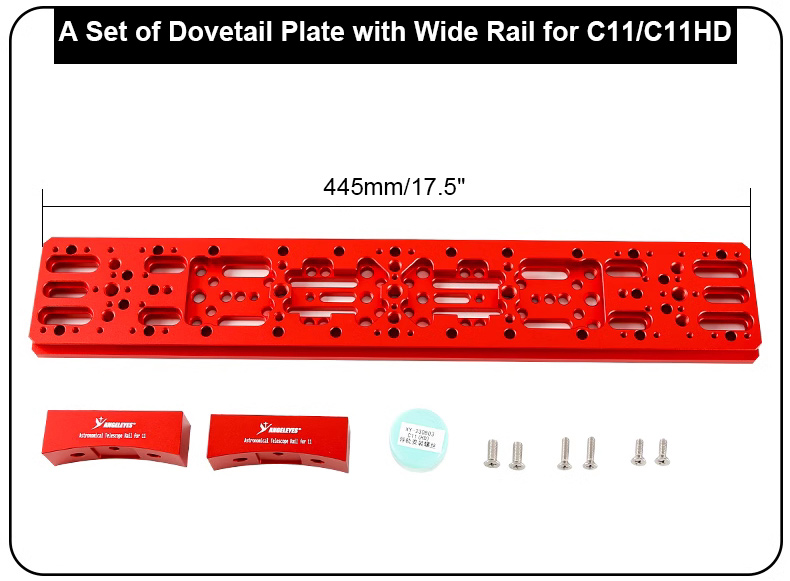

Package Included:
- 1 x Set of dovetail plate
Packaging Details:
- Weight: 0.3kg
