| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $213.01 | $208.67 | $202.14 | $193.45 | Contact US |

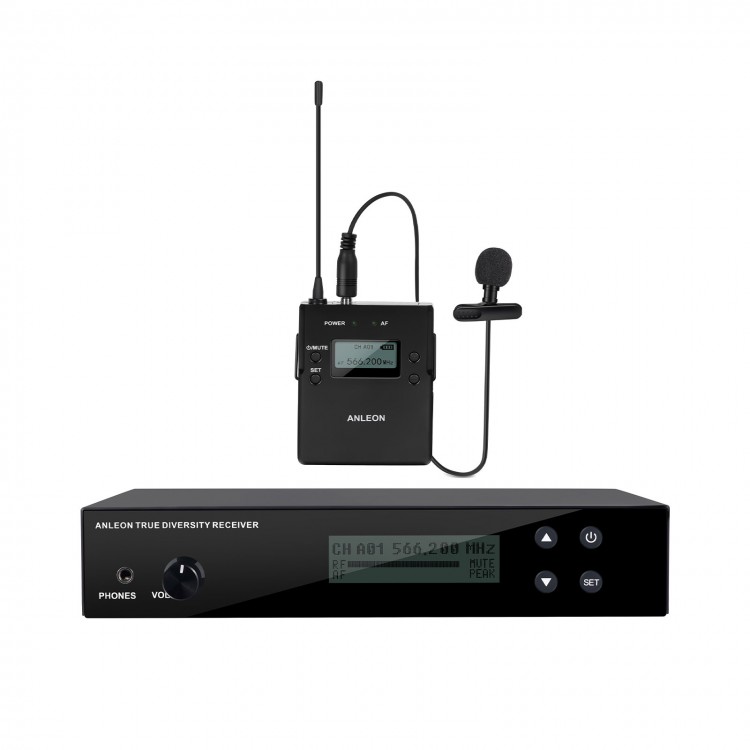

ANLEON B1 566 - 608MHz Wireless IEM System Transmitter and Receiver DC12V/300mA Support 100-meter Transmission
Features:
- High-True Diversity reception with two independent RF sections for greatest reliability.
- Up to 12 simultaneous systems per frequency band.
- Interference-resistant UHF band operation.
- 12 hour battery life with two standard AA-size alkaline batteries (please use alkaline battery or rechargeable Ni-MH battery, AA lithium battery is not recommended. Using AA lithium batteries can cause interference).
- Headphone monitor on Receiver.
- Max. 1680 transmitting/receiving frequencies, adjustable in 25KHz steps.
- Balanced and unbalanced audio output jacks.
- Supreme audio quality provides best sound for guitar, electric bass and highly demanding vocals.
- Transmission Range up to 100 meters.
- Built in low noise signal amplifier and RF filter to reduce RF interference and frequency drop. Double filtering interference noise, effectively blocking useless noise.
- Up to 42MHz bandwidth built-in, with 1680 optional frequencies
- High quality metal casing: the fully automatic equipment creates a high-precision metal casing, which is thick, wear-resistant, and has strong scratch resistance.
- LCD display screen: high definition full angle LCD display screen.
- Application: fitness coach, square dance leader, speaker, host, etc.
Specification:
- Frequency ranges: 566 - 608MHz
- Max 1680 receiving frequencies, adjustable in 25KHz steps
- Transmitter power supply: DC12V/300mA
- Pilot tone squelch: can be switched off
- Receiver operating time: up to 12 hours, 2 x 1.5V AA (not included)
- Operating range: 100m (environment dependent)
- RF Output Power: <10mW
- Signal-to-noise ratio( 1mv, peak deviation): ≥115dBA
- Input impedance: 0kohm, unbalanced/1Mohm
- Total harmonic distortion(THD ): ≤ 0.9%
- Adjacent channel rejection Typically: ≥65dB
- Frequency Response:
Microphone: 80 - 18kHz
Line: 25 - 18kHz
Package Included:
- 1 x B1 Transmitter
- 1 x B1 Receiver
- 1 x 12V/300mA Power Adapter
- 1 x Lavalier Microphone
- 1 x Headset Microphone
Note:
- B1 “566-608MHz” band receivers must be used with "566-608MHz” band transmitters.
- Battery is not included.
