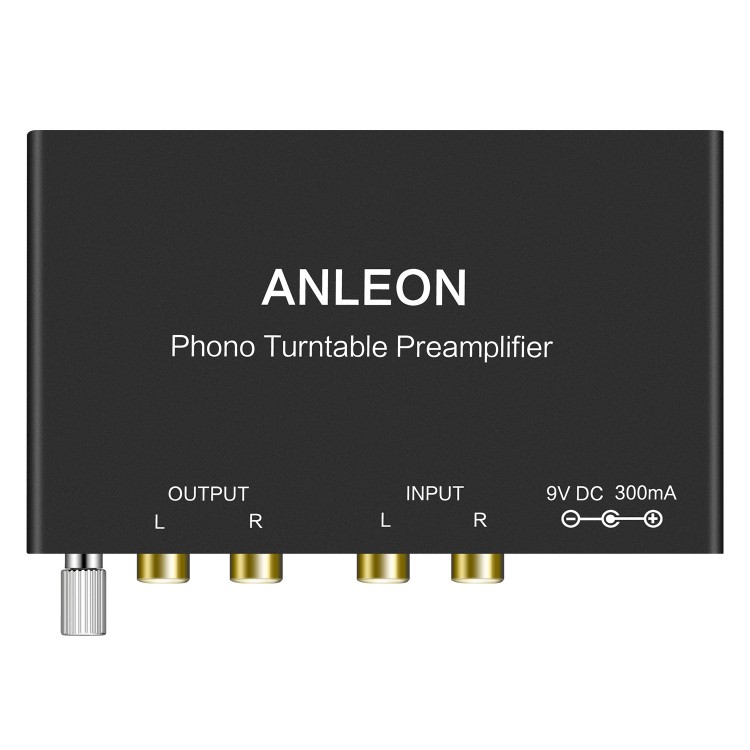

ANLEON PH-100 Phono Turntable Preamplifier MM Phono Preamp Mini Size For Phonograph Enthusiasts

ANLEON PH-100 Phono Turntable Preamplifier MM Phono Preamp Mini Size For Phonograph Enthusiasts



Description:
ANLEON PH-100 a compact phono preamplifier. Turntables have low-level signals. However, most audio units can only process line-level signals. Between a turntable and another audio unit (a mixer, an amplifier, or a recording unit). The phono preamplifier is a professional-quality phono preamplifier for turntables. Designed to convert a phono signal to a line-level signal.

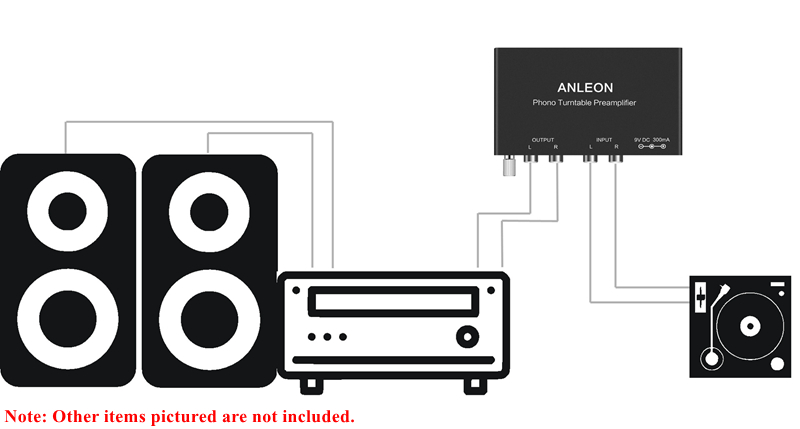

PH-100 Connection:
INPUT (L and R) Connectors:
To send a turntable signal to the PH-100, you need an RCA audio cable (stereo). Use this cable to connect: The left output on the turntable to the L (left) INPUT on the PH-100. The right output on the turntable to the R (right) INPUT on the PH-100

OUTPUT (L and R) Connectors:
To use these RCA connectors, you need an RCA audio cable (stereo). Use this audio cable to connect: The L (left) OUTPUT on the PH-100 to the left input on an amplifier, recording unit, or mixer. (On a mixer, use a CD or Tuner or TAPE input.) The R (right) OUTPUT on the PH-100 to the right input on the amplifier, recording unit, or mixer. (On a mixer, use a CD or Tuner or TAPE input.)

Technical Specifications:
- Input capacitance/input impedance, 47kohms/120pF
- Gain: 32dB
- Output voltage typically: 200mV/1kHz at 5mV/1kHz
- Noise floor: 88dB (A weighted)
- THD: <0.05%
- RIAA-equalisation curve accuracy: 20Hz - 20kHz / max. 0.5dB
- Input & output: gold plated RCA connectors
- Power supply: 9V/300mA DC
- Dimensions: 102 x 22 x 65mm (WxHxD)
- Net weight: 265g (without weight of power supply)

Applications:
- COMPACT DESIGN gives you the ability to connect your turntable to your stereo receiver, speakers, or other audio device

Package Included:
- 1 x Phono Preamplifier
- 1 x Power Adapter
- 1 x User Manual

Note:
- Other items pictured are not included in the package, for demonstration purposes only. Thank you for your understanding!
