| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $108.14 | $105.94 | $102.63 | $98.21 | Contact US |
ANLEON S2D 560-596MHz Stereo Digital In-Ear Wireless Monitor System with 36 Selectable Channels (1PCS Receiver)
$42.91
ANLEON S2D 560-596MHz Stereo Digital In-Ear Wireless Monitor System RF Transmitter and Receiver Kit
$102.02
521 Mono Professional In Ear Monitor System UHF IEM System with 1 Receiver Supports 40 Channels
$137.65

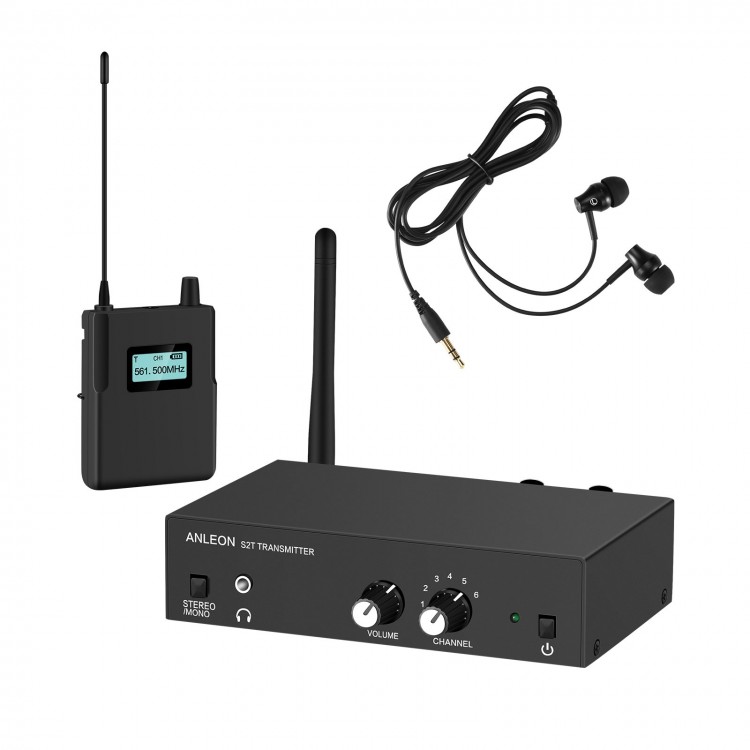

ANLEON S2 561-568MHz in Ear Monitor System Wireless IEM System with Transmitter Receiver for Stages
Description:
Wireless in ear monitors allow for uncluttered stage sets and a reliably consistent sound wherever you move. Ideal for use by singers and musicians, this in ear monitor system for bands features an adjustable TNC antenna to extend and increase wireless range plus a clear digital LCD front panel display for at-a-glance monitoring.
Features:
1. Adds wireless audio connectivity to any active loudspeaker
2. Connect your audio source to the receiver and it sends the signal to your receivers
3. No compromise in audio quality; Send audio in high-fidelity stereo or mono (system selectable)
4. Adjustable squelch eliminates interference
5. Perfect for multi-room venues, weddings, mobile DJ's, tricky floor monitor placement and mobile A/V
Transmitter Design:
1.1. Front Panel of S2 Transmitter
- Headphone output port supports 3.5mm headphone plug.
- VOLUME knob adjusts transmitter headphone output sound.
- The Stereo/MONO button selects the audio connected to the INPUT (L) input and the INPUT (R) input to mix in stereo or mono. In stereo Stereo mode, audio connected to INPUT(L) is sent to the left earphone, and audio connected to INPUT(R) is sent to the right earphone. In mono mode, audio connected to INPUT (L) and (R) is sent to the headphones on both sides.
1.2. Rear Panel of S2 Transmitter
- Power button turns the power on and off.
- INPUT(L) receives signals through an XLR cable, and in stereo mode, the signal is sent to the left channel.
- INPUT(R) receives signals through an XLR cable, and in stereo mode, the signal is sent to the right channel.
Wireless Receiver:
S2 wireless receiver has 6 selectable frequencies per system, allowing up to 4 compatible systems to be used simultaneously without interfering with each other.
Technical Parameters:
- Frequency response: 20Hz~18KHz
- Antenna: 1/4 wavelength
- Transmitter built-in audio limiter
- Transmitter RF output power: 10 mW
- Usage distance: 50m/164ft indoors; over 100m/328.1ft used outdoors
- Carrier frequency range: 561-568MHz
Package Included:
- 1 x Transmitter
- 1 x Receiver
- 1 x Headphones
- 1 x Power Adapter
Note:
- AA batteries for the receiver are not included.
