ANLEON S2 IEM System In Ear Monitor Wireless 1 Transmitter 3 Receivers For Stage Music Monitoring

ANLEON S2 IEM System In Ear Monitor Wireless 1 Transmitter 3 Receivers For Stage Music Monitoring

Features:
- 6 selectable channels
- Low power consumption design for long playtime up to 12 hours
- Multiple sets of receivers can be operated with a single transmitter within the operating range
- Dynamic expansion circuitry for high S/N ratio
- Complex anti-interference circuit for using 6 sets at the same time without mutual interference
- Receiver LCD displays frequency, channel and electric quantity
- Long operating range up to 100m

Currier Frequencies:
US version
526-535MHz (526.3/527.6/529.2/531.1/533.3/534.2 MHz)
561-568Mhz (561.5/562.7/563.9/565.1/566.7/567.5 MHz)
670-680MHz (670.3/671.6/673.2/675.1/677.3/679.3 MHz)
913-917MHz (913.3/913.9/914.6/915.4/916.2/917.0 MHz)
EU version 863-865MHz (863.1MHZ/863.4/863.9/864.2/864.6/864.9 MHz)
FCC ID: 2AGRX-S2

System:
ANLEON S2 is an IEM system designed for stage performance and broadcasting. High S/N ratio and dynamic range ensures optimal audio quality. The dual XLR inputs allow 2-channel, mono or stereo operation with a convenient mix function which allows you to run two sources into the S2.

Intended for drummers/keyboardist/guitar player/vocalist and other performers, the unit features a high-power headphone output that helps to ensure that as the band gets louder, you'll still be able to hear your performance.

S2T Transmitter:
- Volume Control: Adjustment of the volume for both output channels
- Stereo/Mono switch: Stereo mode (the device outputs the signal fed into the left input to the left headphone and the right signal to the right headphone). Mono mode (Channel L and channel R are mixed and output to both headphones)
- Power Switch: Switches the unit on and off
- XLR INPUTS (L) and (R): Dual XLR balanced jacks connect to the input signal source
- 9V DC socket: Please use the included 9V 300mA adapter

S2R Receiver:
- LCD screen: Displays frequency, channel and electric quantity
- Antenna: Receives RF signal from the transmitter
- Power indicator: Green indicates it is working
- Earphone socket
- Power and volume knob
- Frequency adjustment button

Specifications:
- Channel: 6
- Headphone output: 3.5mm jack socket
- Transmitter Power Supply: DC9V/300mA
- Operating Range: 80m (environment dependent)
- RF Output Power: <10mW
- Signal-to-noise ratio (1mv, peak deviation) typ. 70 db (A)
- Frequency Response: 20Hz~18Hz

Applications:
- Recording studio monitoring, on stage monitoring
- Drummers
- Keyboardist
- Guitar player
- Vocalist
- Bass player

Cautions:
1. Using this system at excessive volumes can cause permanent hearing damage. Use as low volume as possible.
2. When not using this system for a long time, please take out batteries (not included).

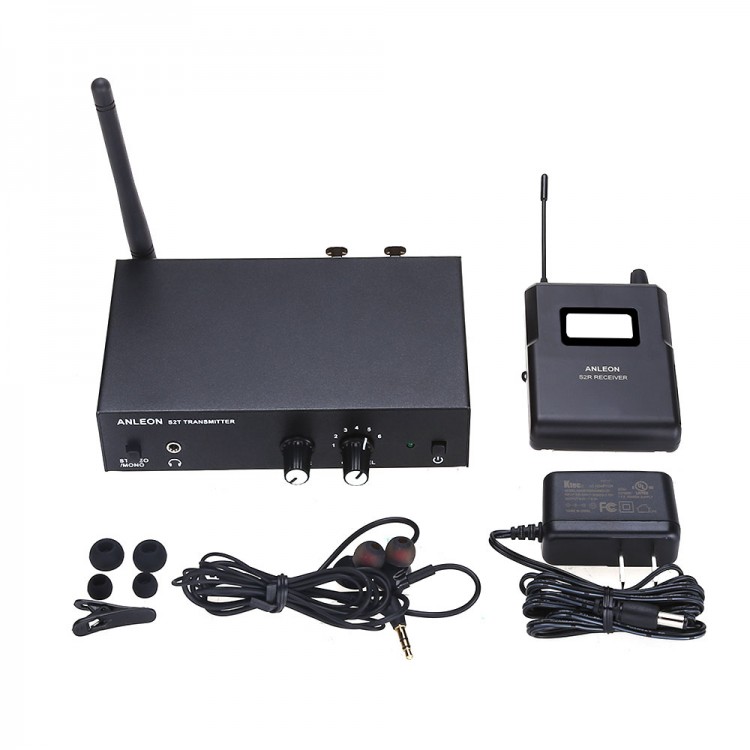

Package Included:
- 1 x S2T Transmitter
- 3 x S2R Receivers
- 3 x Sets of Earphone
- 1 x DC9V/300ma Power Adapter

Note:
- Batteries are not included. It is recommended to use 2pcs 1.5V AA batteries to power a single receiver.
