ANLEON S2 Wireless IEM System In Ear Monitor UHF Stereo Stage Monitoring Device Personal Headphones

ANLEON S2 Wireless IEM System In Ear Monitor UHF Stereo Stage Monitoring Device Personal Headphones

Features:
- 6 selectable channels
- Low power consumption design for long playtime
- Multiple sets of receivers can be operated with a single transmitter within the operating range
- Dynamic expansion circuitry for high S/N ratio
- Complex anti-interference circuit for using 6 sets at the same time without mutual interference
- Receiver LCD displays frequency, channel and electric quantity
- Long operating range up to 100m

Currier Frequencies:
US version
526-535MHz (526.3/527.6/529.2/531.1/533.3/534.2 MHz)
561-568Mhz (561.5/562.7/563.9/565.1/566.7/567.5 MHz)
670-680MHz (670.3/671.6/673.2/675.1/677.3/679.3 MHz)
913-917MHz (913.3/913.9/914.6/915.4/916.2/917.0 MHz)
EU version 863-865MHz (863.1MHZ/863.4/863.9/864.2/864.6/864.9 MHz)
FCC ID: 2AGRX-S2

S2 Wireless Monitor System:
ANLEON S2 is an IEM system designed for stage performance and broadcasting. High S/N ratio and dynamic range ensures optimal audio quality. The dual XLR inputs allow 2-channel, mono or stereo operation with a convenient mix function which allows you to run two sources into the S2.

Intended for drummers/keyboardist/guitar player/vocalist and other performers, the unit features a high-power headphone output that helps to ensure that as the band gets louder, you'll still be able to hear your performance.

S2T Transmitter:
- Volume Control: Adjustment of the volume for both output channels
- Stereo/Mono switch: Stereo mode (the device outputs the signal fed into the left input to the left headphone and the right signal to the right headphone). Mono mode (Channel L and channel R are mixed and output to both headphones)
- Power Switch: Switches the unit on and off
- XLR INPUTS (L) and (R): Dual XLR balanced jacks connect to the input signal source
- 9V DC socket: Please use the included 9V 300mA adapter

S2R Receiver:
- LCD screen: Displays frequency, channel and electric quantity
- Antenna: Receives RF signal from the transmitter
- Power indicator: Green indicates it is working
- Earphone socket
- Power and volume knob
- Frequency adjustment button

Specifications:
- Channel: 6
- Headphone output: 3.5mm jack socket
- Transmitter Power Supply: DC9V/300mA
- Operating Range: 80m (environment dependent)
- RF Output Power: <10mW
- Signal-to-noise ratio (1mv, peak deviation) typ. 70 db (A)
- Frequency Response: 20Hz~18Hz

Applications:
- Recording studio monitoring, on stage monitoring
- Drummers
- Keyboardist
- Guitar player
- Vocalist
- Bass player

Cautions:
1. Using this system at excessive volumes can cause permanent hearing damage. Use as low volume as possible.
2. When not using this system for a long time, please take out batteries (not included).

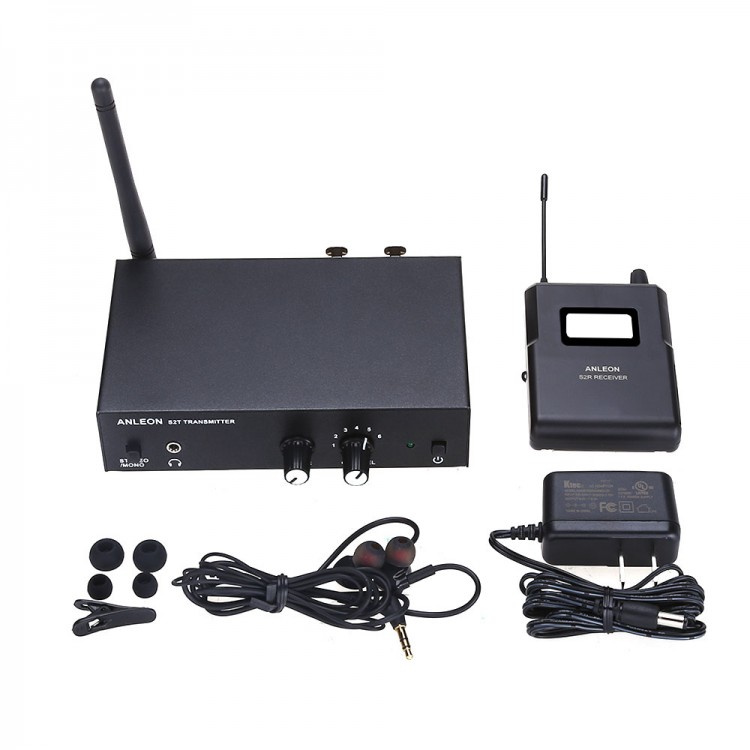

Package Included:
- 1 x S2T Transmitter
- 1 x S2R Receiver
- 1 x Set of Earphone
- 1 x DC9V/300ma Power Adapter

Note:
- Batteries are not included. It is recommended to use 2pcs 1.5V AA batteries to power the receiver.
