Antenna Amplifier Low Noise Amplifier -110DBM High Sensitivity 0.7DB Noise Figure For Beidou GPS

Antenna Amplifier Low Noise Amplifier -110DBM High Sensitivity 0.7DB Noise Figure For Beidou GPS

Applications:
This amplifier features wide frequency range, high gain, low noise figure, etc. It can be used in various RF receiving front ends. Antenna is connected to this low noise amplifier to amplify the weak signal received by antenna to expand the receiving distance and increase the communication distance! Widely used in handheld, car radios, various remote controllers, repeater receivers, various radio receivers, FM broadcast receivers, TV receivers, etc. where low-noise small-signal RF amplification is required! In addition, due to the super wide bandwidth of the amplifier, it can be used in radio management, testing full-band spectrum reconnaissance, EMC electromagnetic compatibility receiving end test.

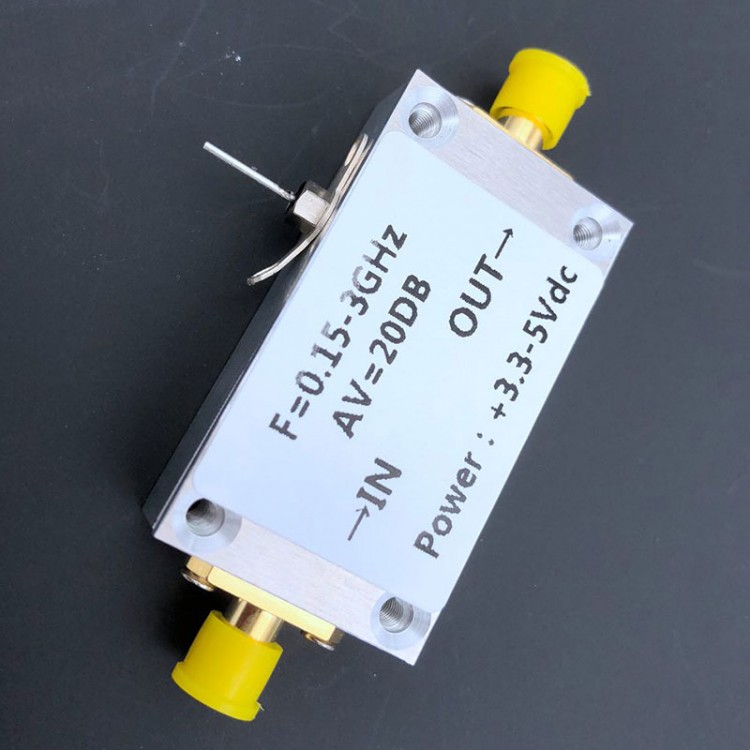

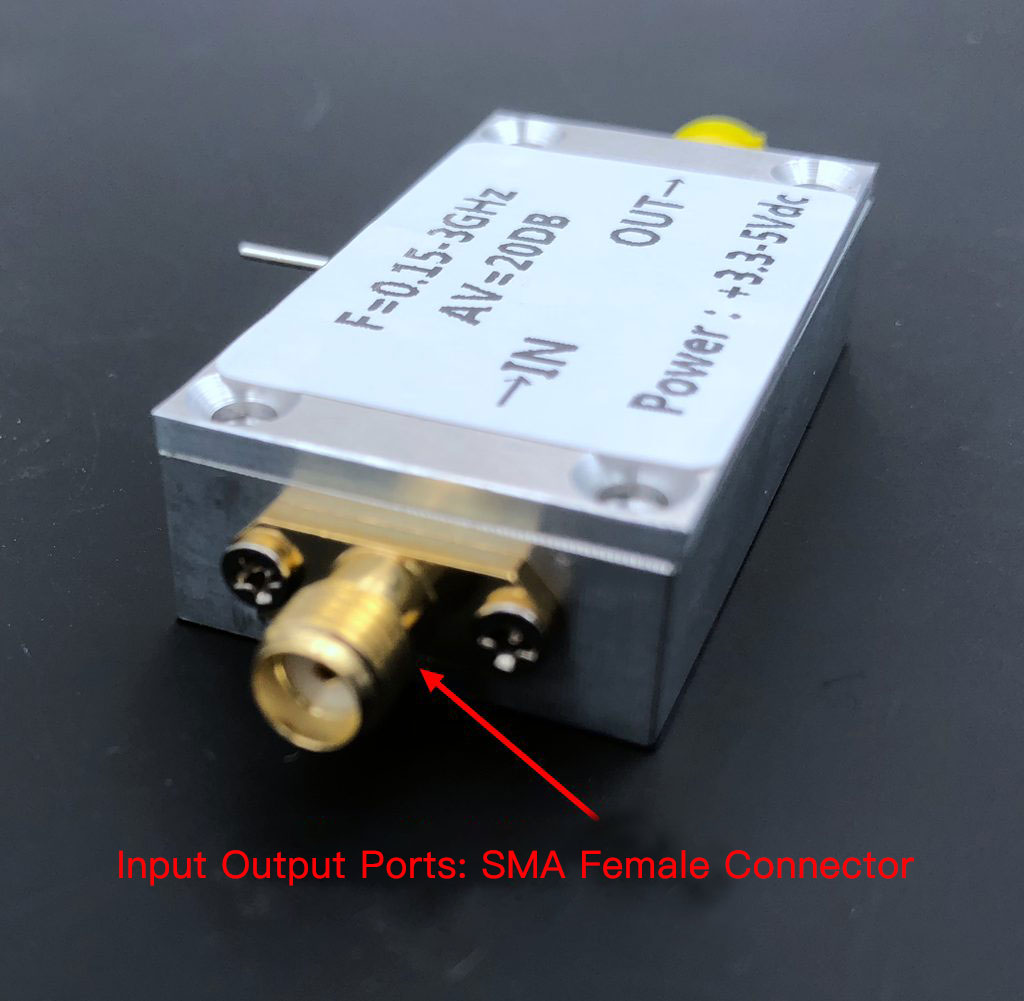

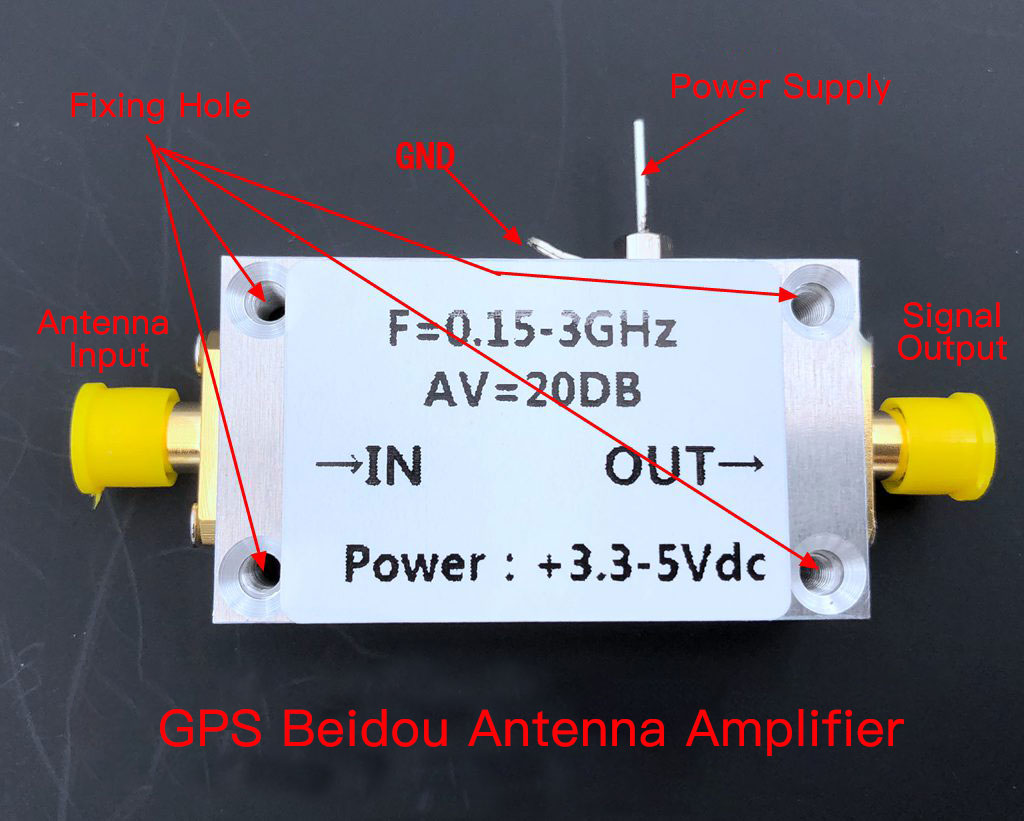

The amplifier is made of aeronautical aluminum alloy milled by CNC, with high precision and light weight. The appearance is treated with natural conductive oxidation, and the conductivity and electromagnetic shielding effect are excellent! Can effectively shield their own radiation and isolate radiation from the external environment! The power supply port uses radio frequency feed-through capacitors, which can effectively filter out spikes and other clutter on the power supply! The physical picture is as follows:

Amplifier Parameter Index:
1. Working frequency: 150MHz-3000MHz
2. Gain: 20dB (1.5GHz gain 20dB)
3. Gain flatness: check S21 curve
4. Maximum output power: + 10dBm @ 1dB compression point
5. Power supply: 3.3V current 45mA
6. Noise figure: less than 0.7dB@1.5GHz
7. Dimensions: 45 * 25 * 12mm (excluding the sizes of SMA connectors), with 4pcs 3mm screw mounting holes on the front and back

Package Included:
- 1 x Low Noise Amplifier

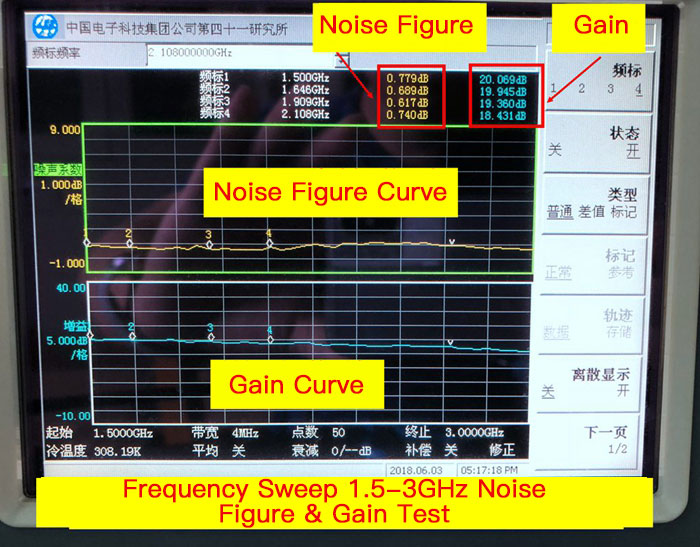

Measured S21 and Noise Figure:

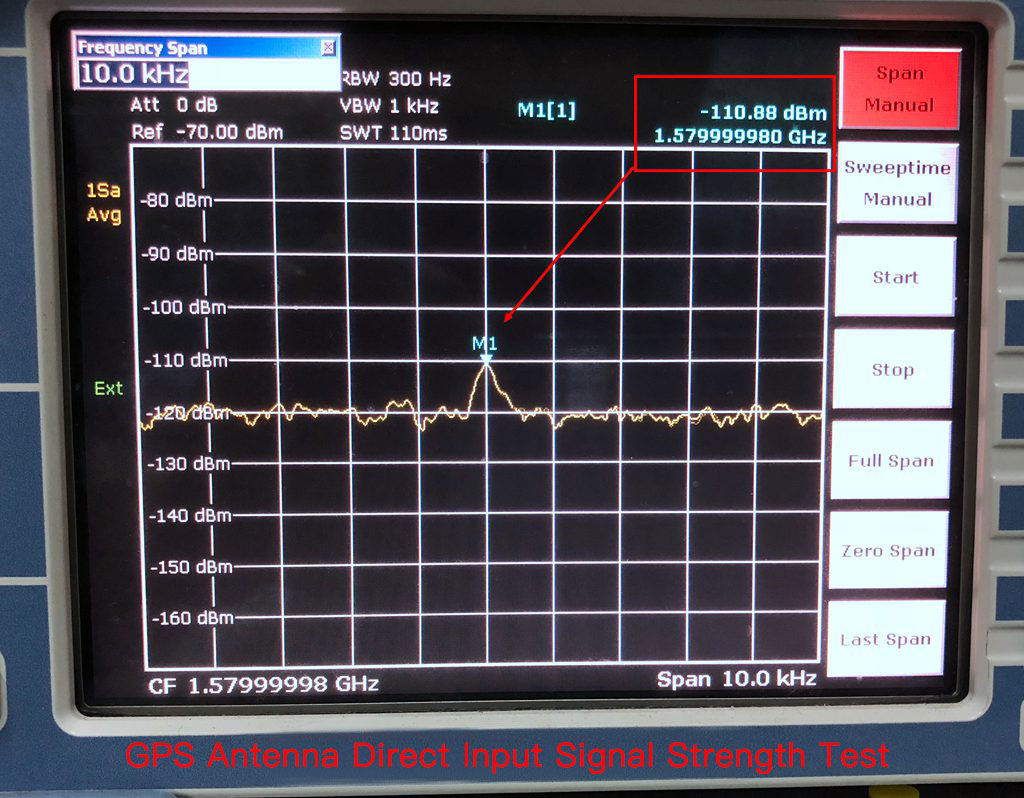

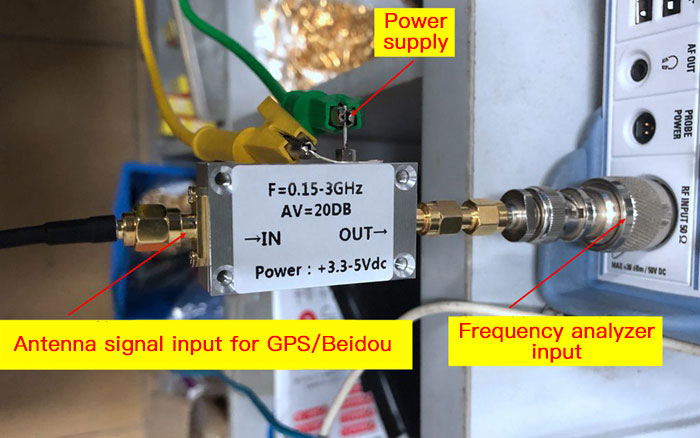

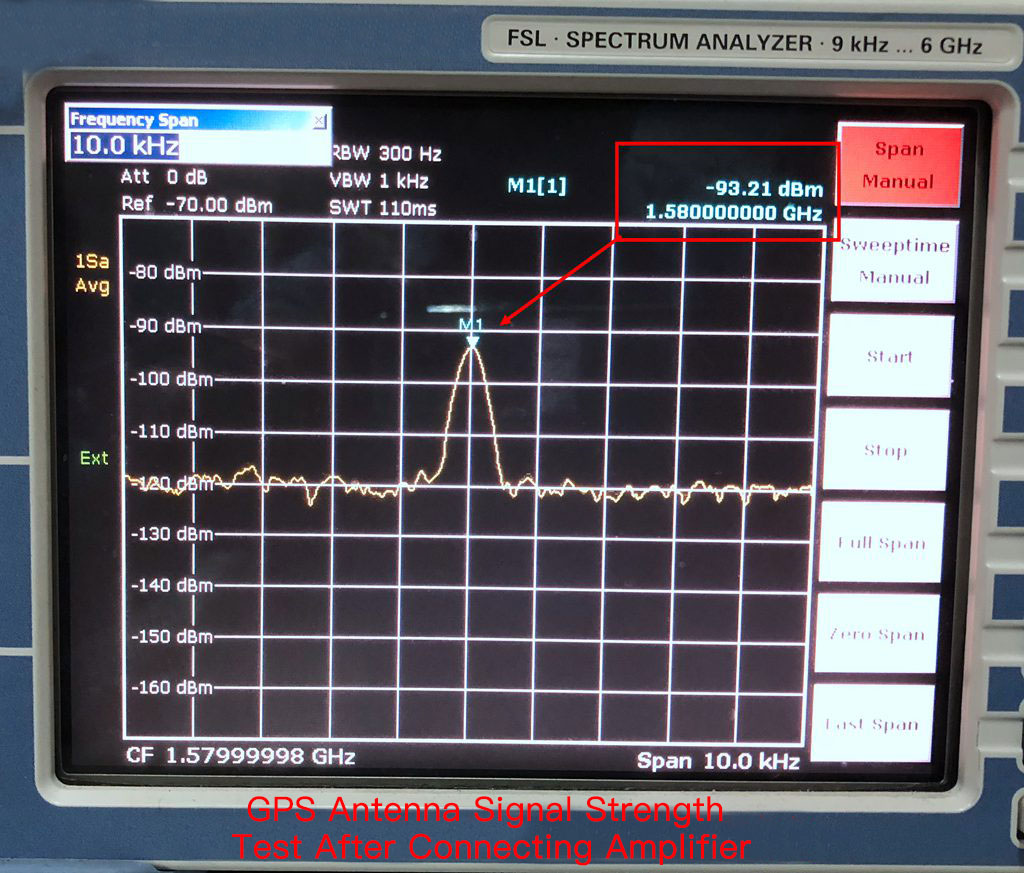

Antenna Signal Amplification Effect Comparison For GPS Beidou:
