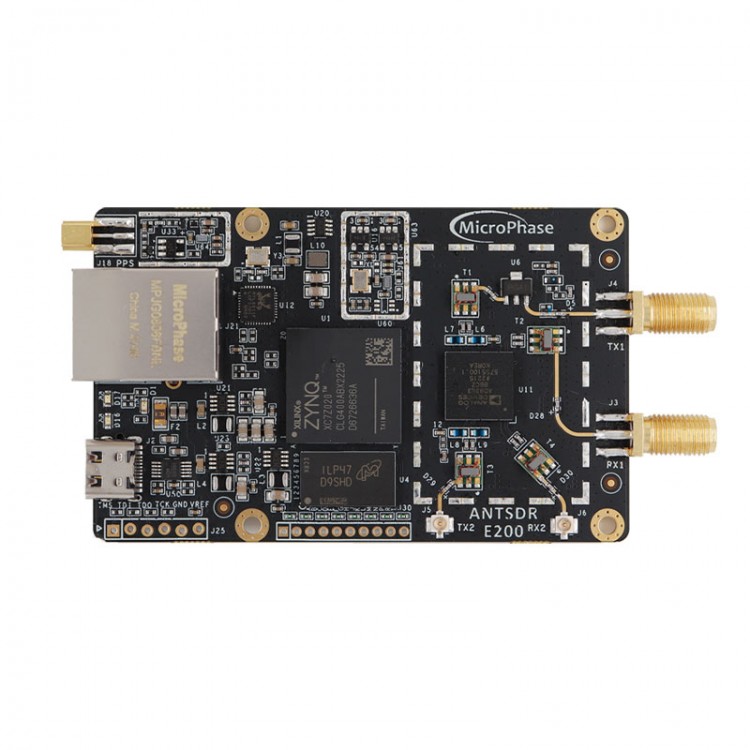

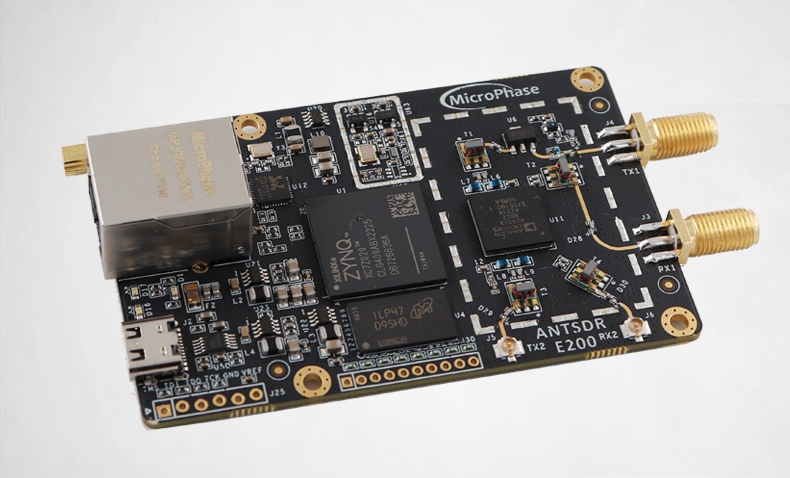

ANTSDR E200 Software Defined Radio Development Board ADI Pluto SDR AD9363 OpenWiFi Support FPGA and ARM Development
Features:
- Size: 80 x 50mm
- XC7Z020 SoC with large capacity is adopted to support larger logic design
- Support Pluto and ZED+FMCCOMS3 firmware migration
- Support UHD migration, adopt UOE technology, reduce CPU network load, and improve network bandwidth

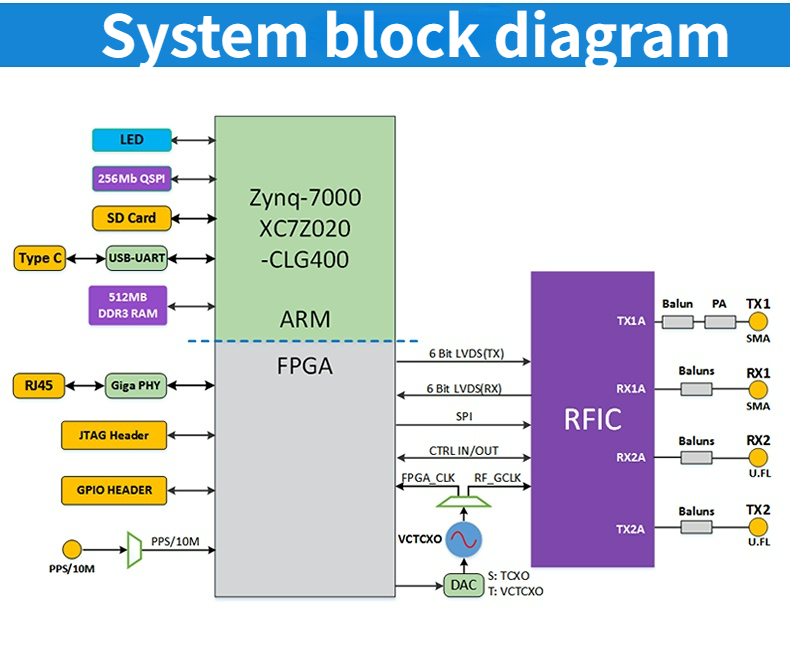

Specification:
- RF IC: ADI AD9363BBCZ
- RAM: 512MByte DDR3 RAM
- Storage: 256Mbit QSPI Flash
- RF Channel: 2 x 2 MIMO
- Bandwidth: 200k~20M
- Frequency band: 325M~3.8G
- Clock: 40M 0.5ppm TCXO, support 40M 0.28ppm VCTCXO
- Ethernet: GbE
- UART: single channel USB-UART interface
- SD: single channel SD Card drive
- Power: USB Type-C power supply
- Size: PCB 80 x 50mm

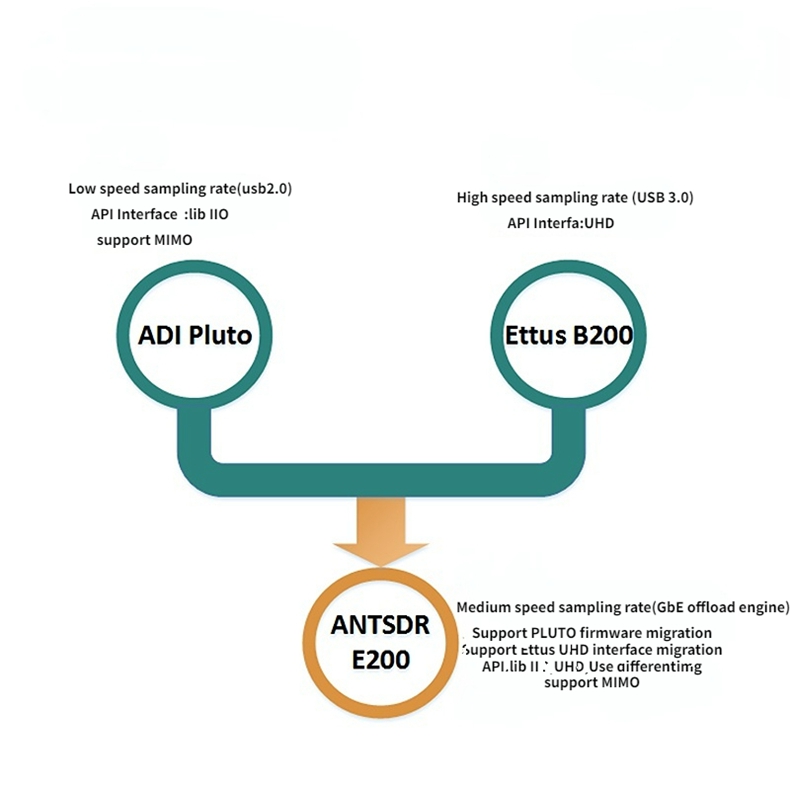

Firmware support (different img is needed):
- Support Pluto firmware migration, support Lib IIO
- Support Ettus UHD migration
- Support OpenWiFi
- Support srsRAN
- Support ZED + FMCCOMMS
Package Included:
- 1 x Board
- 1 x SD Card Reader
- 1 x 32G SD Card
- 1 x USB Type-C Cable
- 2 x Glue Rod Antenna (700-2700M/6dBi)
- 1 x Network Cable
